| MOQ: | 3000 sets |
| Price: | $20,000.00 - $28,000.00/sets |
| Name:ShangHai Long shou Machinery Co,Ltd |
|
|

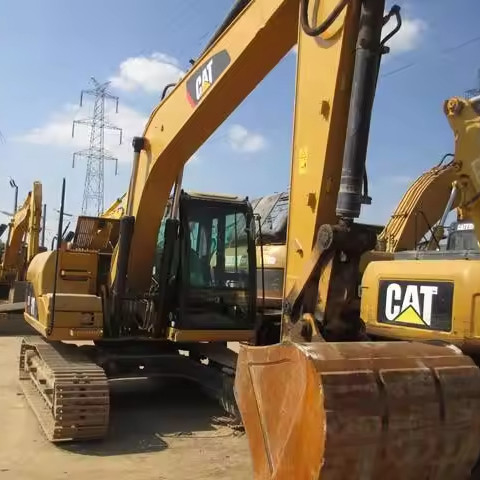

| Caterpillar 312D Excavator Parameter Configuration |
| specifications |
| Working weight of the whole machine (kg) 12920 |
| Bucket capacity (m ³) zero point five two |
| Boom length (mm) 2800 |
| Stick length (mm) 3000 |
| Origin Xuzhou |
| Tonnage (ton) 12 |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Rotation speed (rpm) 12.4 |
| Walking speed (km/h) 3.4/5.5 |
| Climbing ability (%) 70/35 ° |
| Bucket excavation force (kN) 96 |
| Dipper arm excavation force (kN) 62 |
| dynamic system |
| Engine model C4.2ACERT |
| Rated power (kW/rpm) 72/2200 |
| Displacement (L) 4.25 |
| Cylinder diameter x stroke (mm) 102 x 130 |
| Cooling method: water cooling |
| hydraulic system |
| Maximum flow rate of main pump (l/min) 127 |
| Working hydraulic oil circuit (Mpa) 3.05 |
| Hydraulic circuit for walking (Mpa) 3.5 |
| Rotary hydraulic circuit (Mpa) 2.3 |
| Pilot oil circuit (MPa) 4.12 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 110 x 1015 |
| Dipper rod oil cylinder - number x cylinder diameter x stroke (mm) 120 x 1197 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 100 x 939 |
| Is the hydraulic crushing pipeline standard? No |
| Oil capacity |
| Fuel tank (L) 250 |
| Hydraulic oil tank (L) 150 |
| Hydraulic system (L) 162 (including oil tank) |
| Engine oil change quantity (L) 19.5 |
| Cooling liquid (L) 17.9 |
| Main body size |
| Total length of transportation (mm) 7590 |
| Total transportation width (mm) 2590 |
| Total transportation height (mm) 2970 |
| Full height of cab (mm) 2760 |
| Ground clearance of counterweight (mm) 915 |
| Track grounding length (mm) 2780 |
| Total length of track (mm) 3490 |
| Track shoe width (mm) 500 |
| Total width of track (mm) 2590 |
| Track gauge (mm) 1990 |
| Minimum ground clearance (mm) 430 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 8430 |
| Maximum excavation depth (mm) 5840 |
| Maximum excavation height (mm) 8580 |
| Maximum unloading height (mm) 6210 |
| Maximum vertical excavation depth (mm) 5160 |
| Maximum effective excavation depth (mm) 5640 |
| Bulldozer width x height (mm) without bulldozer blade |
| Bulldozer lifting or pushing depth (mm) without bulldozer |
|
|
|
|
|
|
