| Price: | $30,000.00/sets >=1 sets |
| Name:ShangHai Long shou Machinery Co,Ltd |
Excavator Load Method 1 :In bulk or Roroship whole complete machine on boat
Excavator Load Method 2 :In bulk or Roroship.take boom and bucket out
Excavator Load Method 3 :40FR load
Excavator Load Method 4 :40HQ Container
Whats app/ Mobile phone:+8613564042317
We chat number:13564042317

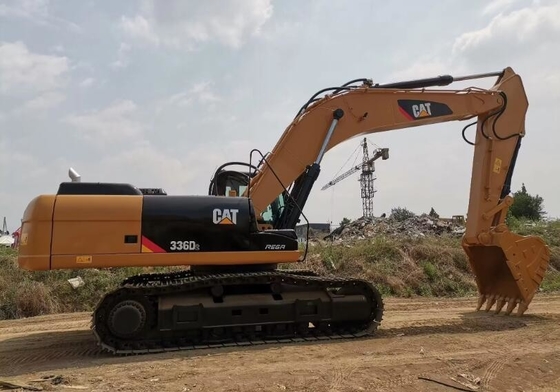

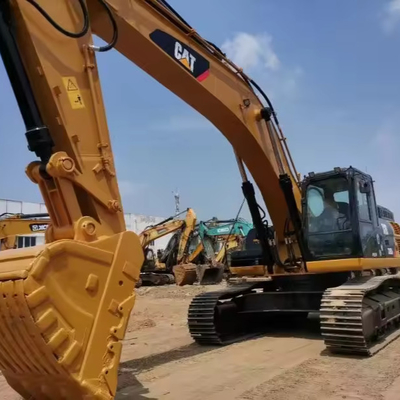

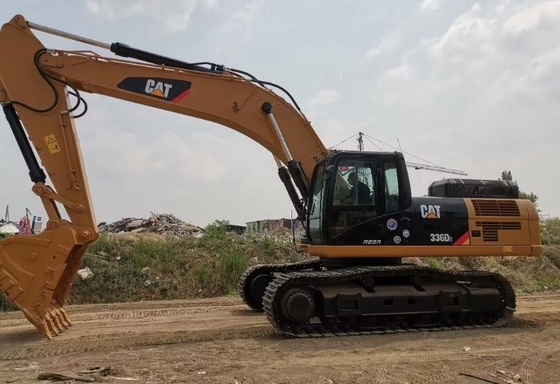

Parameter configuration of Caterpillar 336D hydraulic excavator
specifications
Power Traditional Power
Manufacturer joint venture/import
Bucket Backhoe
Working weight of the whole machine (kg) 33750
Bucket capacity (m ³) one point four
Boom length (mm) 6500
Stick length (mm) 3200
Origin Japan/Xuzhou
Tonnage (ton) 36
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional Power
performance
Rotation speed (rpm) 10
Walking speed (km/h) March 5th
Climbing ability (%) 70/35 °
Bucket excavation force (kN) 222
Dipper arm excavation force (kN) 146

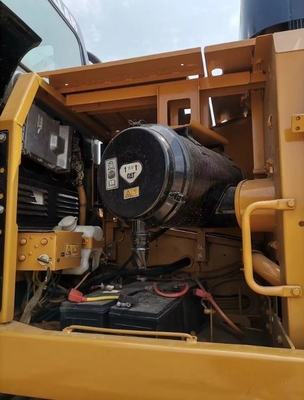

dynamic system
Engine model C9ACERT
Rated power (kW/rpm) 200/1900
Displacement (L) 8.8
Number of cylinders (6)
Cylinder diameter x stroke (mm) 110 x 127
Cooling method: water cooling

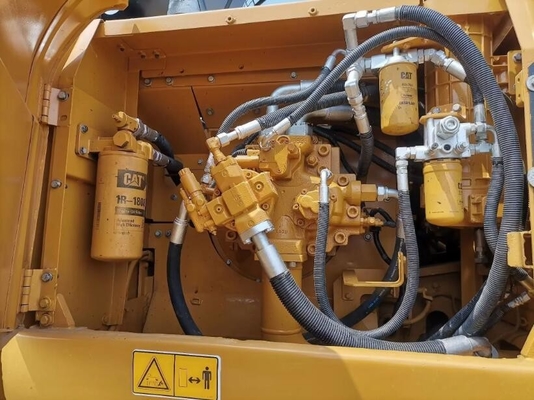

hydraulic system
Maximum flow rate of main pump (l/min) 280
Pilot oil circuit (MPa) 3.9
Working hydraulic oil circuit (Mpa) 3.5
Hydraulic circuit for walking (Mpa) 3.5
Rotary hydraulic circuit (Mpa) 2.8
Main overflow set pressure (Mpa) 3.5

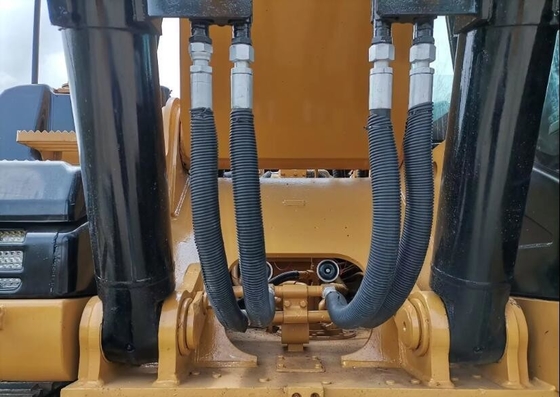

Boom oil cylinder - number x cylinder diameter x stroke (mm) 150 x 1440
Stick oil cylinder - number x cylinder diameter x stroke (mm) 170 x 1738
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 150 x 1151
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L) 620
Hydraulic oil tank (L) 175
Hydraulic system (L) 410 (including oil tank)
Engine oil change quantity (L) 40
Cooling liquid (L) 40
Main body size
Total length of transportation (mm) 11150
Total transportation width (mm) 3190
Total transportation height (mm) 3340
Full height of cab (mm) 3140
Track grounding length (mm) 3610
Total length of track (mm) 4590
Track shoe width (mm) 600
Total width of track (mm) 3190
Track gauge (mm) 2590
Minimum ground clearance (mm) 450
Balance weight ground clearance (mm) 1220
Rear end turning radius (mm) 3500
Scope of work
Maximum excavation radius of the parking surface (mm) 10920
Maximum excavation depth (mm) 7390
Maximum excavation height (mm) 10240
Maximum unloading height (mm) 7200
Maximum vertical excavation depth (mm) 5830
Maximum effective excavation depth (mm) 7230
|
|
