| Price: | $20,000.00/sets >=1 sets |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine

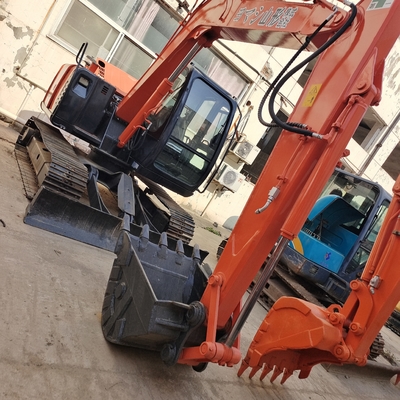

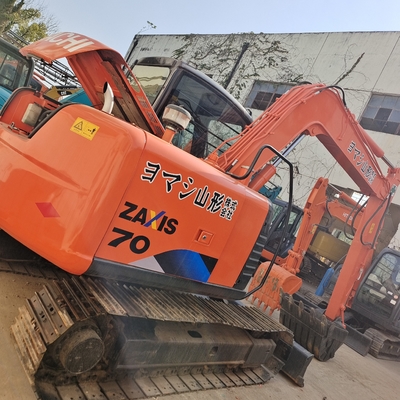

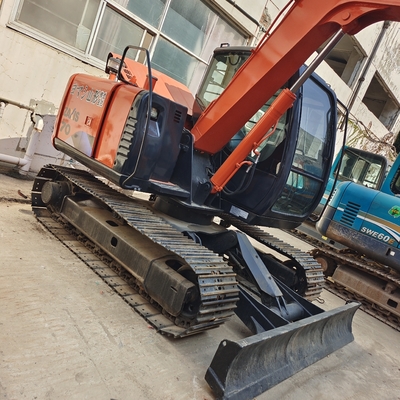

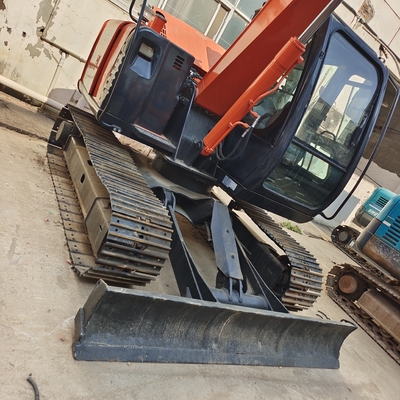

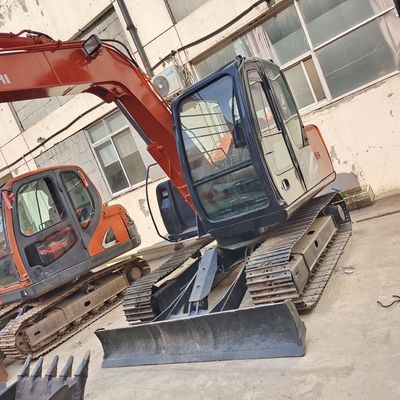

Hitachi ZX75US Excavator Parameter Configuration
specifications
Working weight of the whole machine (kg) 7100
Bucket capacity (m ³) 0.28/0.13/0.33
Tonnage (ton) 7
Bucket Backhoe
Power Traditional Power
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional Power
performance
Ground specific voltage (Kpa) 30
Walking speed (km/h) 5
dynamic system

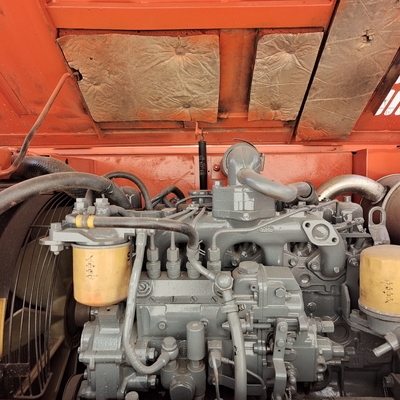

Engine model Isuzu CC-4JG1
Rated power (kW/rpm) 40.3/2100
Displacement (L) 3.1
Oil capacity
Fuel tank (L) 120
Hydraulic system (L) 90
Engine oil change quantity (L) 12
Cooling liquid (L) 9.2
Main body size
Total length of transportation (mm) 5870
Total transportation width (mm) 2320
Total transportation height (mm) 2690
Full height of cab (mm) 2690
Ground clearance of counterweight (mm) 760
Track grounding length (mm) 2290
Track shoe width (mm) 450
Total width of track (mm) 2320
Track gauge (mm) 1870
Minimum ground clearance (mm) 360
Rear end turning radius (mm) 1210
Scope of work
Maximum excavation radius of the parking surface (mm) 6260
Maximum excavation depth (mm) 4110
Maximum excavation height (mm) 7210
Maximum unloading height (mm) 5210
Maximum vertical excavation depth (mm) 3670
|
|
