| Price: | $18,000.00/sets >=1 sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Tony zou
Whats app/Mobile phone:+8613564042317
We chat number:13564042317

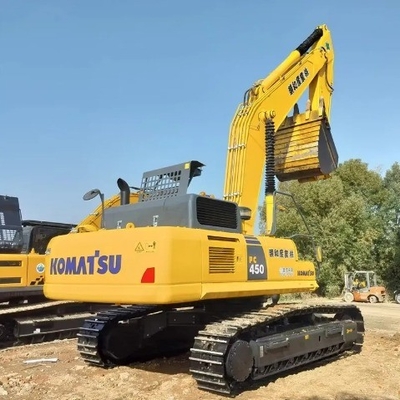

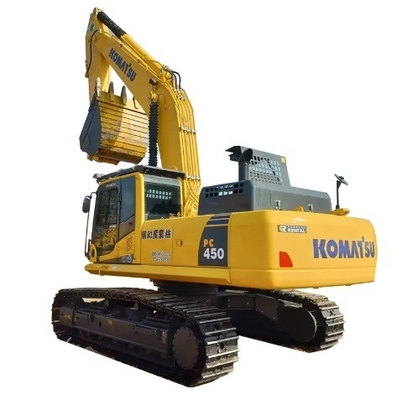

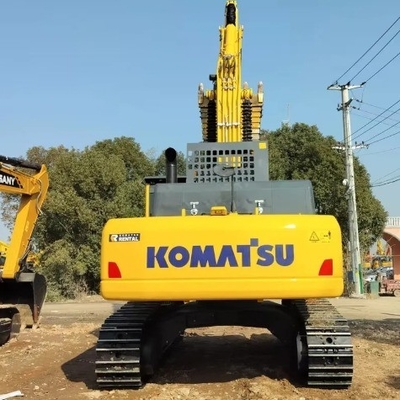

Parameter configuration of Komatsu PC450-8 excavator
specifications
Power Traditional Power
Manufacturer joint venture/import
Bucket Backhoe
Working weight of the whole machine (kg) 45125
Bucket capacity (m ³) two point one
Boom length (mm) 7060
Stick length (mm) 3380
Origin Japan
Tonnage (ton) 45
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional Power
performance
Rotation speed (rpm) 9.1
Walking speed (km/h) 3.0/4.2/5.5
Climbing ability (%) 70/35 °
Ground specific voltage (Kpa) 84.1
Bucket excavation force (kN) 278
Dipper arm excavation force (kN) 233
dynamic system

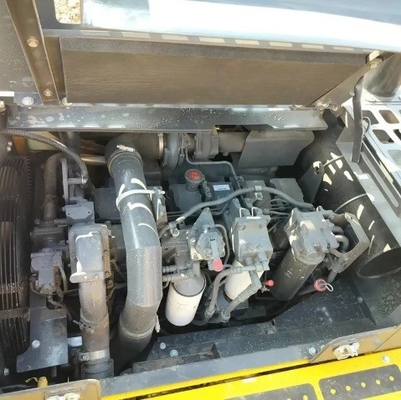

Engine model Komatsu SAA6D125E-5
Rated power (kW/rpm) 257/1900
Displacement (L) 11.04
Cooling method: water cooling
Working mode: 6-cylinder, water-cooled, direct injection, turbocharged, electronic full speed control; Cylinder diameter x stroke: 125mm x 150mm
hydraulic system
Traveling hydraulic motor type axial piston type × 2
Rotary hydraulic motor type axial piston type × 1
Maximum flow rate of main pump (l/min) 690
Hydraulic circuit for walking (Mpa) 37.3
Rotary hydraulic circuit (Mpa) 27.9
Control hydraulic circuit (Mpa) 3.2 Pilot oil circuit
Boom oil cylinder - number x cylinder diameter x stroke (mm) 160 x 1570 x 110
Stick oil cylinder - number x cylinder diameter x stroke (mm) 185 x 1985 x 130
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 160 x 1270 x 110
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L) 650
Hydraulic oil tank (L) 248
Engine oil change quantity (L) 37
Cooling liquid (L) 36
Main body size
Total length of transportation (mm) 12040
Total transportation width (mm) 3580 (3082 when contracted)
Total transportation height (mm) 3660
Full height of cab (mm) 3285
Track grounding length (mm) 4020
Total length of track (mm) 5055
Track shoe width (mm) 600
Total width of track (mm) 3490 (2992 when contracted)
Track gauge (mm) 2890 (2392 when contracted)
Minimum ground clearance (mm) 555
Balance weight ground clearance (mm) 1320
Rear end turning radius (mm) 3605
Scope of work
Maximum excavation radius (mm) 12005
Maximum excavation radius of the parking surface (mm) 11800
Maximum excavation depth (mm) 7790
Maximum excavation height (mm) 10925
Maximum unloading height (mm) 7625
Maximum vertical excavation depth (mm) 6600
Bulldozer lifting or pushing depth (mm) without bulldozer plate
load method 1
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
