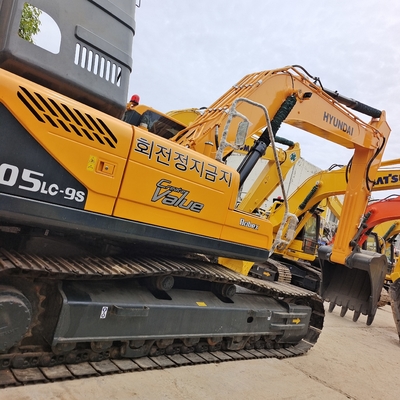

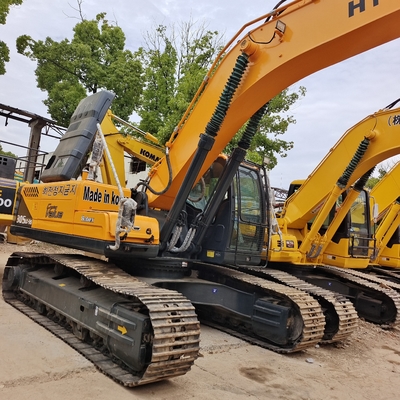

| Brand Name: | HYUNDAI 305LC-9S |
| Price: | $30,000.00 - $35,000.00/sets |
|
|
| specifications |
| Tonnage (ton) 30 |
| Working weight of the whole machine (kg) 30200 |
| Bucket capacity (m ³) one point three eight |
| Boom length (mm) 6250/5600 |
| Stick length (mm) Heavy load 2500/extended 3570 |
| Origin Jiangsu |
| Power Traditional Power |
| Manufacturer joint venture/import |

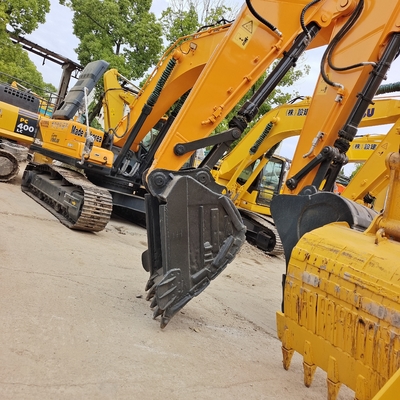

| Bucket Backhoe |
| dynamic system |

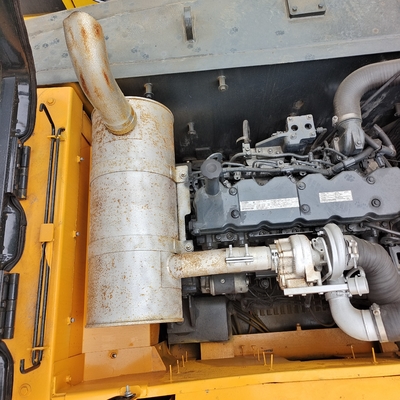

| Engine model Cummins C8.3-C |
| Rated power (kW/rpm) 198/1900 |
| Cooling method: water cooling |
| Maximum torque (N.m) 1218.4 |
| Number of cylinders (6) |
| Displacement (L) 8.3 |
| Working form: Six cylinder four stroke turbocharged intercooled direct injection engine |
| performance |
| Ground specific voltage (Kpa) 57 |
| Rotation speed (rpm) 10.2 |
| Climbing ability (%) 35 ° |
| Bucket excavation force (kN) 192 |
| Dipper arm excavation force (kN) 136 |
| Maximum traction force (kN) 27300 |
| Walking speed (km/h) 5.2/3.1 |
| hydraulic system |
| Main overflow set pressure (Mpa) 34.3 |
| Rotary hydraulic motor type quantitative inclined plate axial piston motor walking hydraulic motor type |
| Variable displacement swash plate axial piston motor main pump maximum flow rate (l/min) 2 × 252 |
| Hydraulic circuit for walking (Mpa) 35 |
| Rotary hydraulic circuit (Mpa) 30 |
| Main pump type 2 x variable axial piston pump |
| Working hydraulic oil circuit (Mpa) 35 |
| Pilot oil circuit (MPa) 4 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1 x 135 x 1185 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 1 x 150 x 1765 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 2 x 140 x 1465 |
| Oil capacity |
| Fuel tank (L) 500 |
| Hydraulic oil tank (L) 190 |
| Engine oil change quantity (L) 24 |
| Cooling liquid (L) 50 |
| Hydraulic system (L) 330 |
| Main body size |
| Total length of transportation (mm) 10560 |
| Total transportation width (mm) 3200 |
| Total transportation height (mm) 3300 |

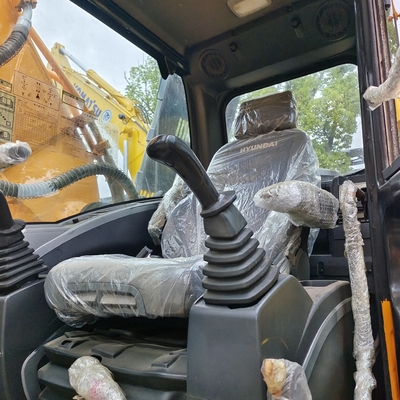

| Full height of cab (mm) 3010 |
| Ground clearance of counterweight (mm) 1190 |
| Minimum ground clearance (mm) 500 |
| Minimum turning radius of the front working device (mm) 4230 |
| Rear end turning radius (mm) 3345 |
| Boarding width (mm) 2980 |

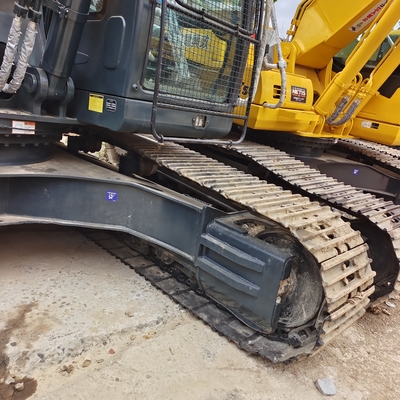

| Total length of track (mm) 4940 |
| Track gauge (mm) 2600 |
| Track shoe width (mm) 600 |
| Total width of track (mm) 3200 |
| Track grounding length (mm) 4030 |
| Scope of work |
| Maximum excavation radius (mm) 10820 |
| Maximum excavation depth (mm) 7500 |
| Maximum excavation height (mm) 10160 |
| Maximum unloading height (mm) 7110 |
| Maximum vertical excavation depth (mm) 6410 |
| Bulldozer lifting or pushing depth (mm) No bulldozer width x height (mm) No stopping surface |
| Maximum excavation radius (mm) 10620 |
| Arm rotation angle (left/right °) without maximum effective excavation depth (mm) 7300 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
