| Price: | $12,000.00 - $15,000.00/sets |

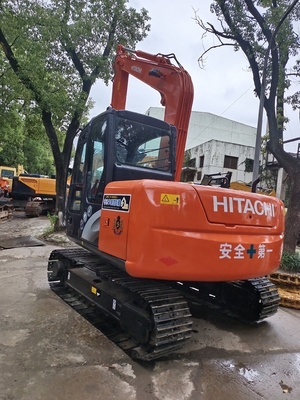

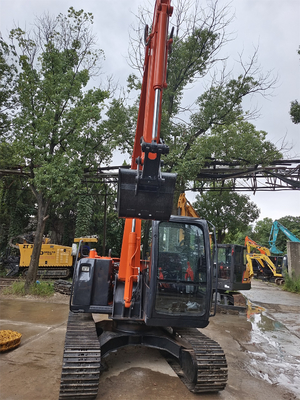

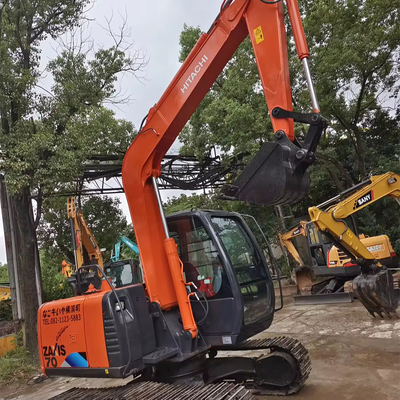

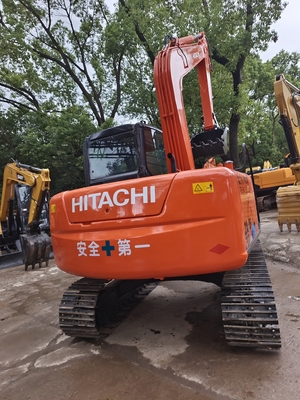

| Parameter Configuration of Hitachi ZX60-5A Excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Tonnage (ton) 6 |
| Working weight of the whole machine (kg) 5960 |
| Bucket capacity (m ³) zero point two four |
| performance |
| Rotation speed (rpm) 9.1 |
| Rotating torque (Nm) 10 |
| Walking speed (km/h) 0-4.5/0-2.5 high/low |
| Climbing ability (%) 70% (35 °) |
| Ground specific voltage (Kpa) 31 |
| Bucket excavation force (kN) 41.4 |
| Dipper arm excavation force (kN) 28.4 |
| Maximum traction force (kN) 38.5 |
| dynamic system |
| Engine model 4TNV98 |
| Rated power (kW/rpm) 42.4/2100 |
| Maximum torque (N.m) 236/1350 |
| Displacement (L) 3.318 |
| Number of cylinders 4 |
| Cylinder diameter x stroke (mm) 98 x 110 |
| Cooling method: water cooling |
| Working form: 4-stroke, water-cooled, direct injection type |
| hydraulic system |
| Main pump type: 3 variable axial piston pumps |
| Rotary hydraulic motor type: 1 axial piston motor |
| Walking hydraulic motor type: 2 variable axial piston motors |
| Maximum flow rate of main pump (l/min) 2 × 52.5 |
| Pilot pump flow rate (L/min) 9.5 |
| Pilot oil circuit (MPa) 3.9 |
| Working hydraulic oil circuit (Mpa) 24.5 |
| Hydraulic circuit for walking (Mpa) 24.5 |
| Rotary hydraulic circuit (Mpa) 17.6 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 1 x 105 x 60 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 1 x 85 x 55 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1 x 80 x 50 |
| Oil capacity |
| Fuel tank (L) 120 |
| Hydraulic oil tank (L) 60 |
| Hydraulic system (L) 93 |
| Engine oil change quantity (L) 12.3 |
| Cooling liquid (L) 8 |
| Main body size |
| Total length of transportation (mm) 6060 |
| Total transportation width (mm) 2060 |
| Total transportation height (mm) 2085 |
| Full height of cab (mm) 2475 |
| Boarding width (mm) 2060 |
| Track shoe width (mm) 400 |
| Track gauge (mm) 1600 |
| Balance weight ground clearance (mm) 620 |
| Minimum ground clearance (mm) 310 |
| Minimum turning radius of the front working device (mm) 2510 |
| Rear end turning radius (mm) 1650 |
| Number of carrier rollers (one side) (piece) 1 |
| Number of track shoes (one side) 39 |
| Number of supporting wheels (one side) 5 |
| Scope of work |
| Maximum excavation radius (mm) 6250 |
| Maximum excavation radius of the parking surface (mm) 6130 |
| Maximum excavation depth (mm) 3850 |
| Maximum excavation height (mm) 5800 |
| Maximum unloading height (mm) 4080 |
| Maximum vertical excavation depth (mm) 3440 |
| Bulldozer width x height (mm) 2000 x 400 |
| Bulldozer lifting or pushing depth (mm) 430 × 400 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
