Name:ShangHai Long shou Machinery Co,Ltd

Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China

Contact :Tony

Whats app/Mobile phone:+8613564042317

We chat number:13564042317

specifications

Tonnage (ton) 15

Working weight of the whole machine (kg) 13900

Bucket capacity (m ³)     0.28-0.75

Boom length (mm) 4000/4600

Stick length (mm) 1900/2500/3000

Origin Shandong

Power Traditional Power

Manufacturer joint venture/import

Bucket Backhoe

dynamic system

Engine model: Doosan DB58TIS

Rated power (kW/rpm) 71/1850

Cooling method: water cooling

performance

Rotation speed (rpm) 12

Bucket excavation force (kN) standard 77.4/boost 81.3

Dipper arm excavation force (kN) standard 57.8/boost 62 walking speed (km/h) 3.4-4.9

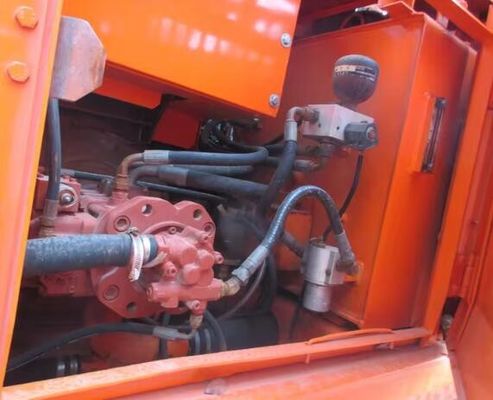

hydraulic system

Rotary hydraulic motor type 26.5 main

Pump maximum flow rate (l/min) 2 × 116

Hydraulic circuit for walking (Mpa) 32.5

Main pump type variable axial column racing pump

Working hydraulic oil circuit (Mpa) standard 32.5/Boost 34.3 Pilot pump flow rate (L/min) 27.7

Main body size

Total length of transportation (mm) 7700

Total transportation width (mm) 2600

Total transportation height (mm) 2830

Full height of cab (mm) 2830

Ground clearance of counterweight (mm) 920

Minimum ground clearance (mm) 410

Rear end turning radius (mm) 2200

Boarding width (mm) 2490

Total length of track (mm) 3495

Track gauge (mm) 2000

Track shoe width (mm) 600

Total width of track (mm) 2600

Track grounding length (mm) 2780

Scope of work

Maximum excavation radius (mm) 7220/8260/8740

Maximum excavation depth (mm) 4670/5630/6130

Maximum excavation height (mm) 7890/8620/8950

Maximum unloading height (mm) 5440/6200/6530

Maximum vertical excavation depth (mm) 4170/5070/5660

Maximum excavation radius of the parking surface (mm) 7050/8110/8600

Maximum effective excavation depth (mm) 4410/5380/5920
