| MOQ: | 3000 sets |
| Price: | $18,000.00 - $23,000.00/sets |
| name:ShangHai Long shou Machinery Co,Ltd |
|
|

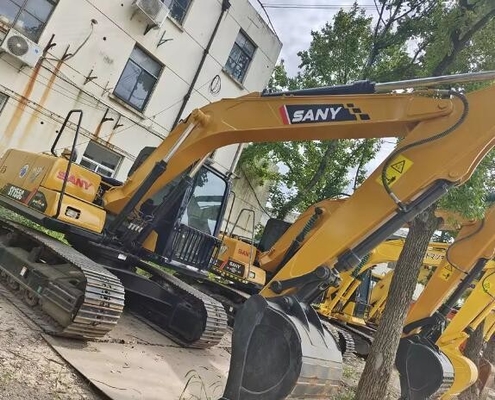

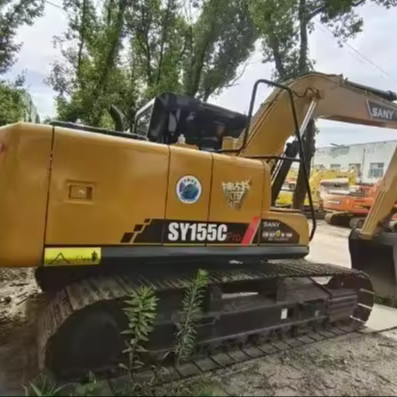

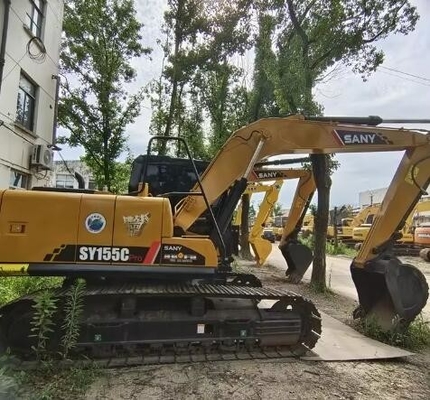

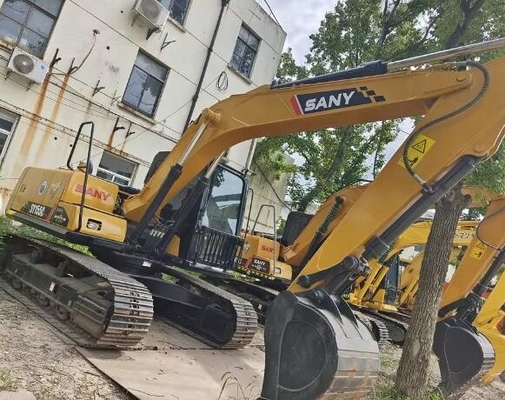

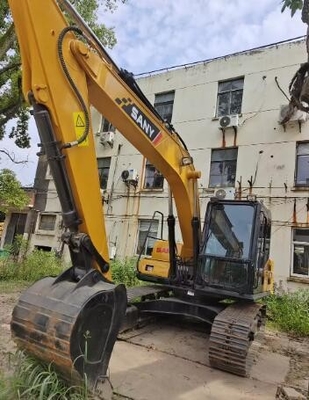

| Parameter configuration of Sany Heavy Industry SY155H excavator |
| specifications |
| Power Traditional Power |
| Domestic production by manufacturers |
| Bucket Backhoe |
| Tonnage (ton) 15 |
| Working weight of the whole machine (kg) 14100 |
| Bucket capacity (m ³) 0.22-0.7 (0.65) |
| performance |
| Rotation speed (rpm) 12 |
| Walking speed (km/h) 5.5/3.5 |
| Climbing ability (%) 70 |
| Ground specific voltage (Kpa) 41.7 |
| Bucket excavation force (kN) 92.7 |
| Dipper arm excavation force (kN) 66.1 |
| dynamic system |
| Engine model Isuzu ISUZU BB-4BG1TRP |
| Rated power (kW/rpm) 84/2200 |
| Maximum torque (N.m) 375/1800 |
| Displacement (L) 2.999 |
| Cooling method: water cooling |

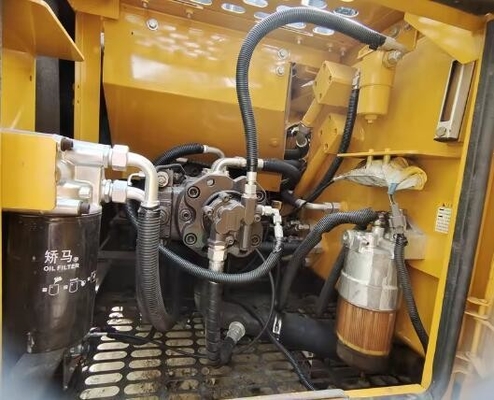

| hydraulic system |
| Is the hydraulic crushing pipeline standard? No |
| Oil capacity |
| Fuel tank (L) 240 |
| Hydraulic oil tank (L) 150 |
| Engine oil change quantity (L) 15 |
| Main body size |
| Total length of transportation (mm) 7870 |
| Total transportation width (mm) 2570 |
| Total transportation height (mm) 2880 |
| Full height of cab (mm) 2740 |
| Boarding width (mm) 2490 |
| Track grounding length (mm) 3010 |
| Total length of track (mm) 3730 |
| Track shoe width (mm) 500 |
| Total width of track (mm) 2550 |
| Track gauge (mm) 1990 |
| Minimum ground clearance (mm) 425 |
| Minimum turning radius of the front working device (mm) 2490 |
| Rear end turning radius (mm) 2210 |
| Maximum height at minimum turning radius (mm) 6495 |
| Number of carrier sprockets (one side) (2 pieces) |
| Number of track shoes (one side) (pieces) 45 |
| Number of supporting wheels (one side) (number) 7 |
| Scope of work |
| Maximum excavation radius (mm) 8330 |
| Maximum excavation depth (mm) 5500 |
| Maximum excavation height (mm) 8685 |
| Maximum unloading height (mm) 6115 |
| Maximum vertical excavation depth (mm) 5085 |
| Bulldozer width x height (mm) N/A |
| Bulldozer lifting or pushing depth (mm) None |
|
|
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
