| Price: | $20,000.00 - $25,000.00/pieces |
| Company’s Name:ShangHai Long shou machinery company Limited |
| Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China |
| Contact :Tony |
| Whats app/ Mobile phone:+8613564042317 |
| We chat number:13564042317 |

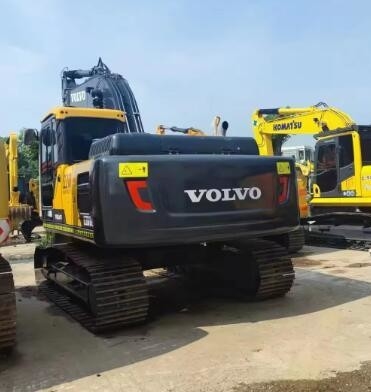

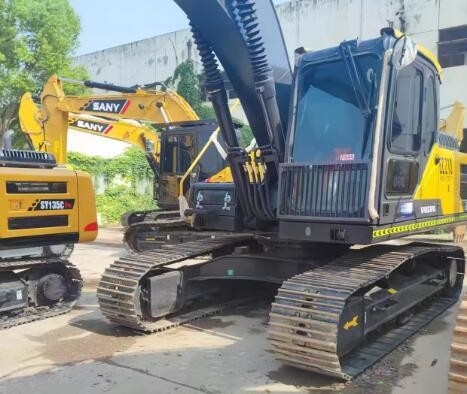

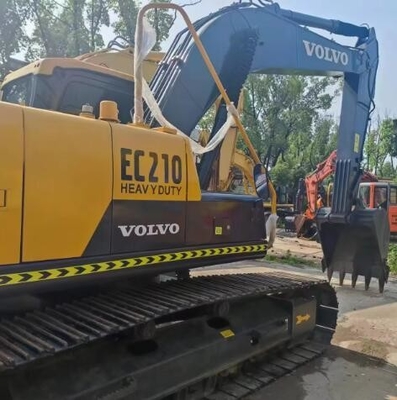

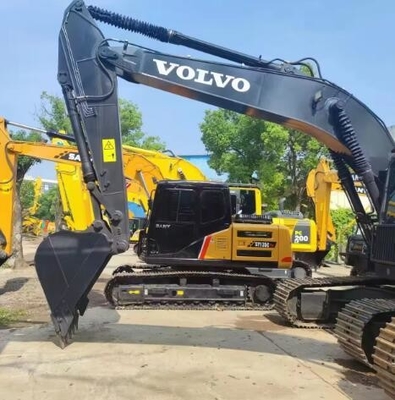

| Volvo EC210D Excavator Parameter Configuration |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |

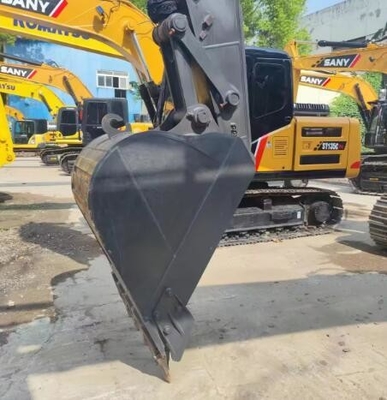

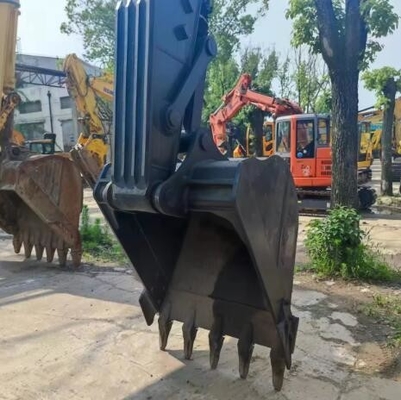

| Bucket Backhoe |
| Tonnage (ton) 21 |
| Working weight of the whole machine (kg) 18100-22800 |
| Bucket capacity (m ³) 0.52-1.22 |
| Boom length (mm) 5700 |
| Stick length (mm) 2900 |
| performance |
| Rotation speed (rpm) 12.3 |
| Rotating torque (Nm) 76.7 |
| Walking speed (km/h) 3.5/5.8 |
| Bucket excavation force (kN) 123 |
| Dipper arm excavation force (kN) 96 |
| Maximum traction force (kN) 183 |
| dynamic system |
| Engine model Volvo D5E |
| Rated power (kW/rpm) 123/2000 |
| Maximum torque (N.m) 670/1600 |
| Displacement (L) 4.7 |
| Number of cylinders 4 |
| Cylinder diameter x stroke (mm) 108 * 130 |
| hydraulic system |
| Main pump type: Two variable displacement axial piston pumps |
| Pilot pump type () Gear pump |
| Maximum flow rate of main pump (l/min) 2 x 212 |
| Pilot pump flow rate (L/min) 1 x 18 |
| Pilot oil circuit (MPa) 3.9 |
| Working hydraulic oil circuit (Mpa) 32.4/34.3 |
| Hydraulic circuit for walking (Mpa) 34.3 |
| Rotary hydraulic circuit (Mpa) 27.9 |
| Main overflow set pressure (Mpa) 32.4/36.3 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 2 * 125 x 1 235 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 1 * 135 x 1 540 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1 * 120 x 1 065 |
| Oil capacity |
| Fuel tank (L) 375 |
| Hydraulic oil tank (L) 160 |
| Hydraulic system (L) 300 |
| Engine oil change quantity (L) 17 |
| Cooling liquid (L) 15 |
| Main body size |
| Total length of transportation (mm) 9745 |
| Total transportation width (mm) 2800 |
| Total transportation height (mm) 3 080 |
| Full height of cab (mm) 2930 |
| Boarding width (mm) 2700 |
| Track grounding length (mm) 3370 |
| Total length of track (mm) 4160 |
| Track shoe width (mm) 600 |
| Track gauge (mm) 2200 |
| Minimum ground clearance (mm) 460 |
| Balance weight ground clearance (mm) 1025 |
| Number of supporting wheels (one side) (number) 7 |
| Number of carrier sprockets (one side) (2 pieces) |
| Number of track shoes (one side) (piece) 46 |
| Scope of work |
| Maximum excavation radius (mm) 9930 |
| Maximum excavation radius of the parking surface (mm) 9380 |
| Maximum excavation depth (mm) 6730 |
| Maximum excavation height (mm) 9220 |
| Maximum unloading height (mm) 6430 |
| Maximum vertical excavation depth (mm) 5620 |
|
|
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
