| MOQ: | 3000 sets |
| Price: | $18,000.00 - $25,000.00/sets |
me:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :olivia
Whats app/ Mobile phone:+8618701954897
We chat number:18701954897

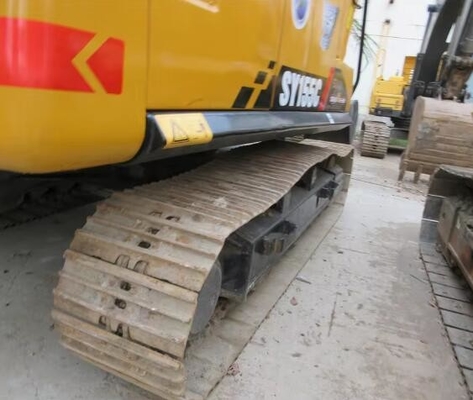

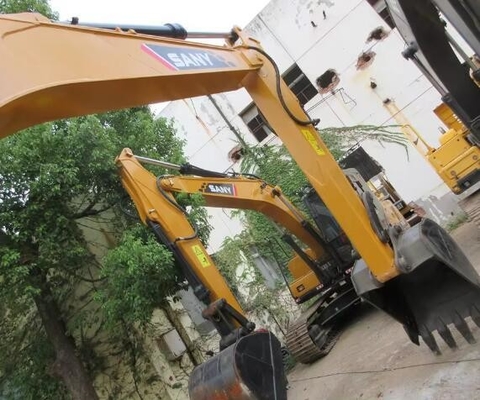

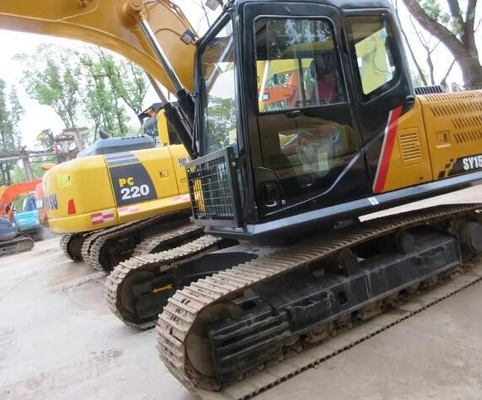

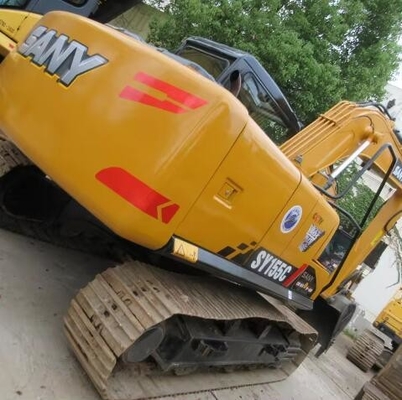

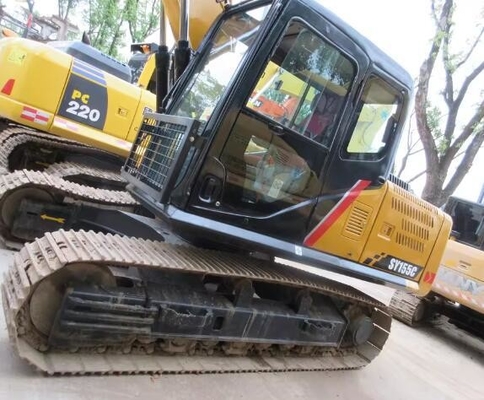

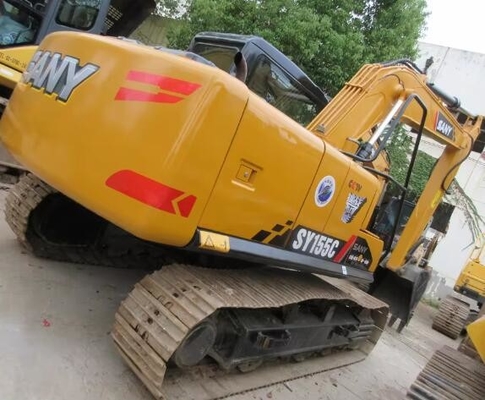

Parameter configuration of Sany Heavy Industry SY155H excavator
specifications
Power Traditional Power
Domestic production by manufacturers
Bucket Backhoe
Tonnage (ton) 15
Working weight of the whole machine (kg) 14100
Bucket capacity (m ³) 0.22-0.7 (0.65)
performance
Rotation speed (rpm) 12
Walking speed (km/h) 5.5/3.5
Climbing ability (%) 70
Ground specific voltage (Kpa) 41.7
Bucket excavation force (kN) 92.7
Dipper arm excavation force (kN) 66.1
dynamic system
Engine model Isuzu ISUZU BB-4BG1TRP
Rated power (kW/rpm) 84/2200
Maximum torque (N.m) 375/1800
Displacement (L) 2.999
Cooling method: water cooling
hydraulic system
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L) 240
Hydraulic oil tank (L) 150
Engine oil change quantity (L) 15
Main body size
Total length of transportation (mm) 7870
Total transportation width (mm) 2570
Total transportation height (mm) 2880
Full height of cab (mm) 2740
Boarding width (mm) 2490
Track grounding length (mm) 3010
Total length of track (mm) 3730
Track shoe width (mm) 500
Total width of track (mm) 2550
Track gauge (mm) 1990
Minimum ground clearance (mm) 425
Minimum turning radius of the front working device (mm) 2490
Rear end turning radius (mm) 2210
Maximum height at minimum turning radius (mm) 6495
Number of carrier sprockets (one side) (2 pieces)
Number of track shoes (one side) (pieces) 45
Number of supporting wheels (one side) (number) 7
Scope of work
Maximum excavation radius (mm) 8330
Maximum excavation depth (mm) 5500
Maximum excavation height (mm) 8685
Maximum unloading height (mm) 6115
Maximum vertical excavation depth (mm) 5085
Bulldozer width x height (mm) N/A
Bulldozer lifting or pushing depth (mm) None
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
