| MOQ: | 40000 sets |
| Price: | $13,000.00 - $18,000.00/sets |

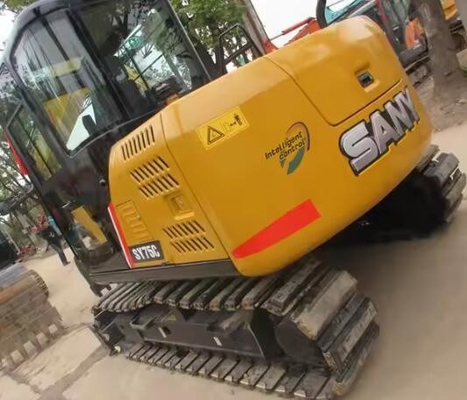

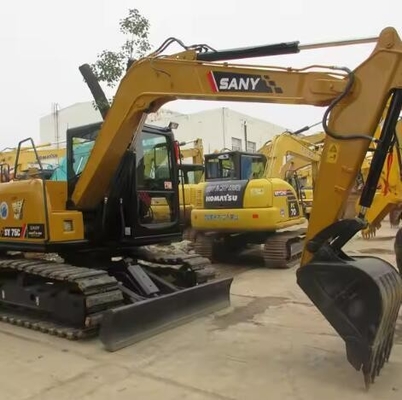

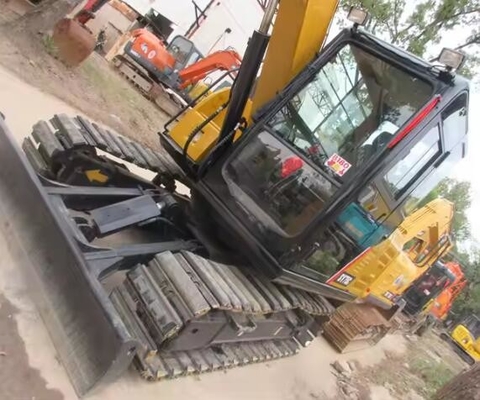

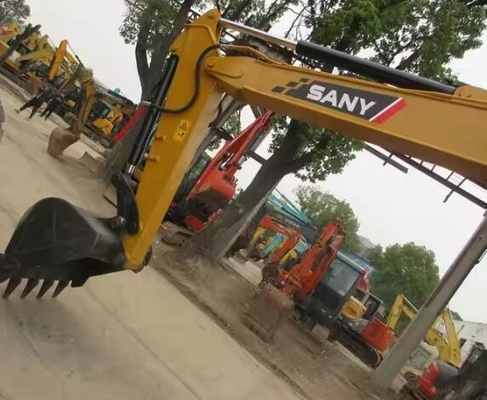

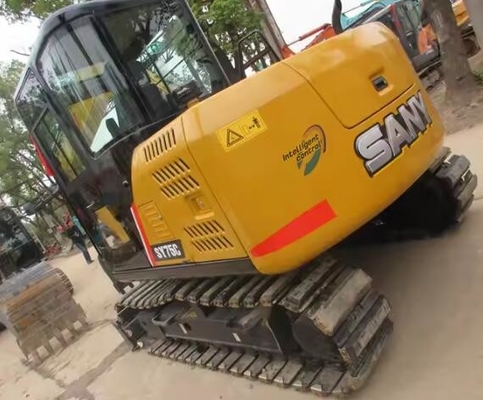

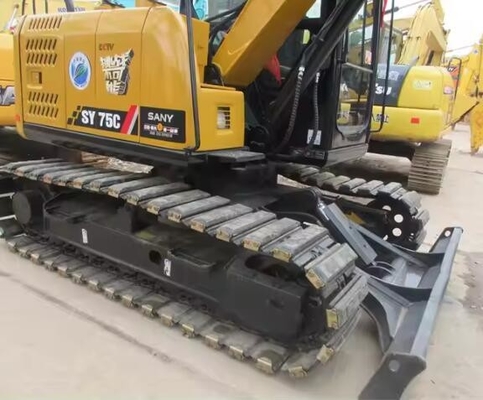

| SANY SY75C |
| Our company name:Shanghai Longshou Machinery Co,.Ltd. Contact person:Tony Specifications |
|
|
| Power traditional power |
|
|
| Domestic manufacturers |
|
|
| Bucket backhoe |
|
|
| Tonnage (ton) 7 |
|
|
| Working weight of complete machine (kg) 7280 |
|
|
| Bucket capacity (m) ³) 0.12~0.32 |
|
|
| performance |
|
|
| Slewing speed (RPM) 11.5 |
|
|
| Traveling speed (km / h) 4.4 / 2.4 |
|
|
| Climbing capacity (%) 70% (35 °) |
|
|
| Grounding specific voltage (kPa) 33 |
|
|
| Bucket digging force (KN) 56 |
|
|
| Stick digging force (KN) 38 |
|
|
| dynamic system |
|
|
| Engine model Isuzu au-4le2x |
|
|
| Rated power (kW / RPM) 43 / 2200 |
|
|
| Maximum torque (N.m / RPM) 200 / 1600 |
|
|
| Displacement (L) 2.179 |
|
|
| Number of cylinders (4) |
|
|
| Cooling mode: water cooling |
|
|
| Oil capacity |
|
|
| Fuel tank (L) 150 |
|
|
| Hydraulic oil tank (L) 120 |
|
|
| Engine oil change quantity (L) 9.5 |
|
|
| Body size |
|
|
| Total transport length (mm) 6120 |
|
|
| Total transportation width (mm) 2220 |
|
|
| Total transport height (mm) 2720 |
|
|
| Track grounding length (mm) 2195 |
|
|
| Total track length (mm) 2820 |
|
|
| Track shoe width (mm): 450 |
|
|
| Track gauge (mm) 1750 |
|
|
| Minimum ground clearance (mm) 380 |
|
|
| Rear end turning radius (mm) 1800 |
|
|
| Number of carrier sprockets (one side) (1) |
|
|
| Number of track shoes (one side) (PCs.) 39 |
|
|
| Number of roller (single side) (5) |
|
|
| Scope of work |
|
|
| Maximum excavation radius (mm): 6240 |
|
|
| Maximum excavation depth (mm) 4020 |
|
|
| Maximum excavation height (mm): 7060 |
|
|
| Maximum unloading height (mm) 5155 |
|
|
| Maximum vertical excavation depth (mm) 3290 |
|
|
| Bulldozer lift or depth (mm) 350 / 360 |
|
|
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
