| MOQ: | 3000 sets |
| Price: | $23,000.00 - $30,000.00/sets |
Excavator Load Method 1 :In bulk or Roroship whole complete machine on boat
Excavator Load Method 2 :In bulk or Roroship.take boom and bucket out
Excavator Load Method 3 :40FR load
Excavator Load Method 4 :40HQ Container
| Name:ShangHai Long shou Machinery Co,Ltd |
|
|

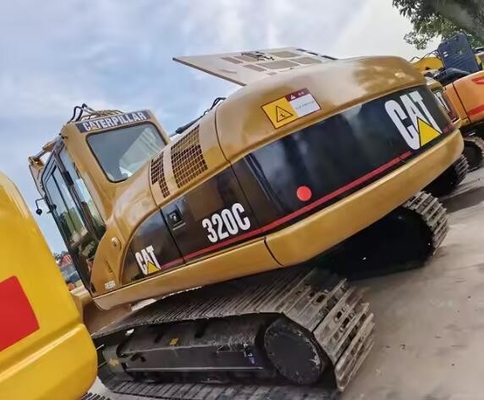

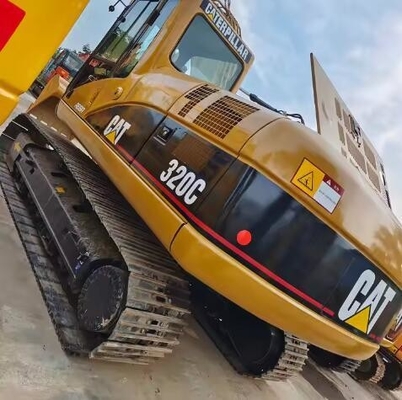

| Parameter configuration of Caterpillar 320C excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Tonnage (ton) 20 |
| Working weight of the whole machine (kg) 21115 |
| Bucket capacity (m ³) zero point eight |
| Boom length (mm) 5680 |
| Stick length (mm) 2900 |
| performance |
| Rotation speed (rpm) 11.5 |
| Walking speed (km/h) 5.5 |
| Ground specific voltage (Kpa) 48.02 |
| Bucket excavation force (kN) 132 |
| Dipper arm excavation force (kN) 99 |
| dynamic system |
| Engine model Carter CAT 3066 ATAAC |
| Rated power (kW/rpm) 110/1800 |
| Displacement (L) 6.4 |
| Cylinder diameter x stroke (mm) 102 x 130 |
| Cooling method: water cooling |
| hydraulic system |
| Maximum flow rate of main pump (l/min) 205 |
| Pilot oil circuit (MPa) 4.12 |
| Working hydraulic oil circuit (Mpa) 34.3 |
| Hydraulic circuit for walking (Mpa) 34.4 |
| Rotary hydraulic circuit (Mpa) 26 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 2-120 x 1260 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 1-140 x 1430 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1-120 x 1030 |
| Oil capacity |
| Fuel tank (L) 320 |
| Hydraulic oil tank (L) 120 |
| Hydraulic system (L) 200 |
| Engine oil change quantity (L) 30 |
| Cooling liquid (L) 24 |
| Main body size |
| Total length of transportation (mm) 9390 |
| Total transportation width (mm) 2800 |
| Total transportation height (mm) 3050 |
| Full height of cab (mm) 3050 |
| Track grounding length (mm) 3260 |
| Total length of track (mm) 4070 |
| Track shoe width (mm) 600 |
| Total width of track (mm) 2800 |
| Track gauge (mm) 2200 |
| Minimum ground clearance (mm) 460 |
| Rear end turning radius (mm) 2770 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 9710 |
| Maximum excavation depth (mm) 6550 |
| Maximum excavation height (mm) 9440 |
| Maximum unloading height (mm) 6770 |
| Maximum vertical excavation depth (mm) 5440 |
|
|
|
|
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
