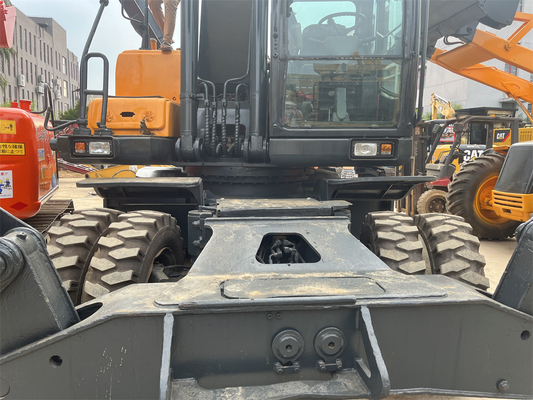

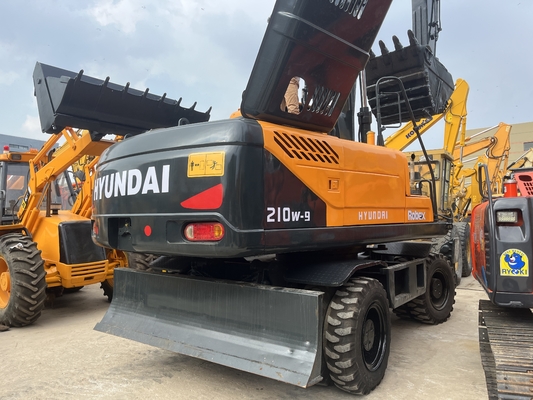

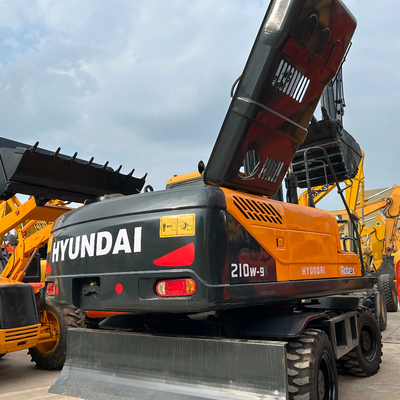

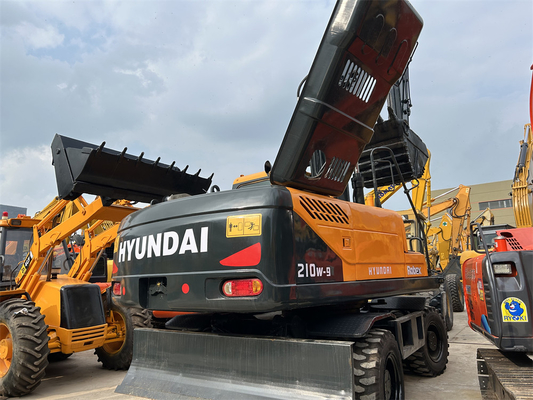

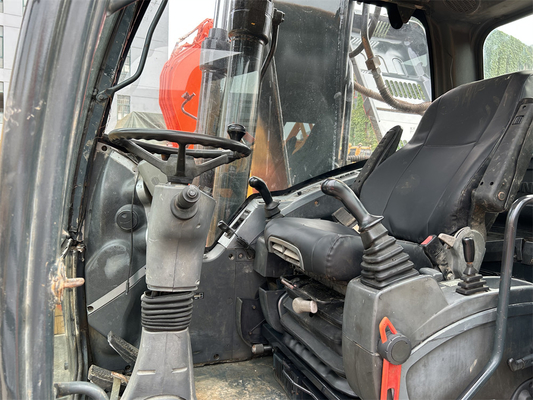

| Brand Name: | HYUNDAI 210W-9 |
| Price: | $40,000.00/sets >=1 sets |
| Specifications |
| Tonnage (ton) 21 |
| Working weight of the whole machine (kg) 20560 |
| Bucket capacity (m ³) 0.51-1.34 |
| Boom length (mm) 5.65 |
| Stick length (mm) 2.92 |
| Origin Beijing |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| dynamic system |
| Engine model Cummins B5.9-C |
| Rated power (kW/rpm) 124/1950 |
| Total displacement (L) 5. nine |
| Cooling method: water cooling |
| Remarks: Six cylinder four stroke turbocharged direct injection engine |
| Maximum torque (N.m/rpm) 68.4/1500 |
| Number of cylinders (6) |
| performance |
| Forward speed (Km/h) 35 |
| Rotation speed (rpm) 11 |
| Climbing ability (%) 31.5 ° |
| Bucket excavation force (kN) 149.1 |
| Dipper arm excavation force (kN) 106.9 |
| Minimum turning radius (m) 6.69 |
| Maximum traction force (kN) 108 |
| Drive form: dual speed axial piston motor drives gearbox |
| hydraulic system |
| Main overflow set pressure (Mpa) 350 |
| Rotary hydraulic motor type quantitative swash plate plunger |
| Motor walking hydraulic motor |
| Type: Double speed axial piston motor |
| Maximum flow rate of main pump (l/min) 222 × 2 |
| Main safety valve pressure (Mpa) 38 |
| Hydraulic circuit for walking (Mpa) 38 |
| Rotary hydraulic circuit (Mpa) 26.5 |
| Control hydraulic circuit (Mpa) 4 |
| Boom cylinder - cylinder diameter x stroke (mm) 2-120 x 1290 |
| Stick cylinder - cylinder diameter x stroke (mm) 140 x 1510 |
| Bucket cylinder - cylinder diameter x stroke (mm) 125 x 1055 |
| Main pump type variable swash plate plunger pump |
| Working hydraulic oil circuit (Mpa) 38 |
| Pilot oil circuit (MPa) 4 |
| Oil capacity |
| Fuel tank (L) 310 |
| Hydraulic oil tank (L) 165 |
| Engine oil change quantity (L) 24 |
| Cooling liquid (L) 35 |
| Hydraulic system (L) 340 |
| Main body size |
| Total length of transportation (mm) 9530 |
| Total transportation width (mm) 2530 |
| Total transportation height (mm) 3500 |
| Ground clearance of counterweight (mm) 1305 |
| Wheelbase (mm) 2800 |
| Single tire width (mm) 308 |
| Total outer width of tire (mm) 640 |
| Track width (mm) 1874 |
| Minimum ground clearance (mm) 365 |
| Minimum turning radius of the front working device (mm) 3580 |
| Rear end turning radius (mm) 2800 |
| Boarding width (mm) 2530 |
| Scope of work |
| Maximum excavation radius (mm) 9960 |
| Maximum excavation radius on the ground (mm) 9750 |
| Maximum excavation depth (mm) 6380 |
| Maximum excavation height (mm) 10000 |
| Maximum unloading height (mm) 7160 |
| Maximum vertical excavation depth (mm) 5990 |
| Maximum excavation depth (mm) 6210 |
| Minimum turning radius (mm) 3580 |
| Bulldozer lifting or pushing depth (mm) 445 |
| Bulldozer width x height (mm) 2490 x 610 |
| Leg width (mm) 3370 |
|
|
|
|
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
