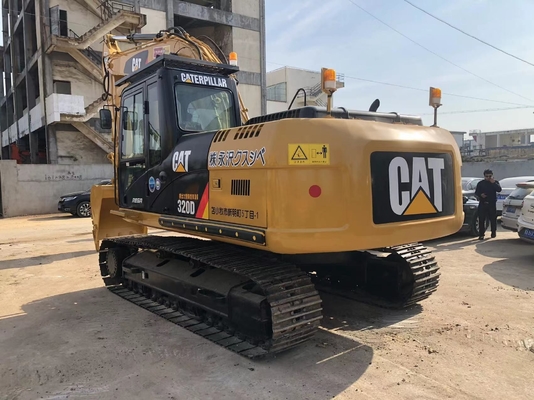

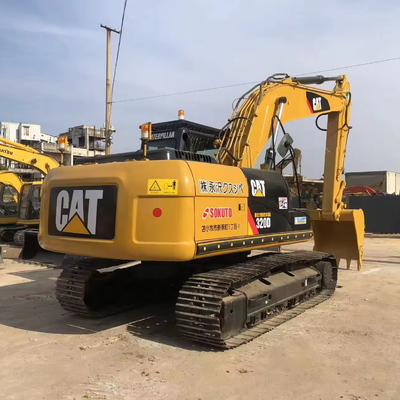

| Brand Name: | CATERPILLAR 320D |
| Price: | $26,000.00/sets >=1 sets |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
Excavator load method 1 :whole machine completely on boat .in bulk or roroship
Excavator load method 2 :take boom and bucket out .in bulk
Excavator load method 3 :40FR Load
Excavator load method 4 :40HQ Container
Parameter configuration of Caterpillar 320D hydraulic excavator
specifications
Working weight of the whole machine (kg) 20930
Bucket capacity (m ³) one
Boom length (mm) 5700
Stick length (mm) 2900
Origin JAPAN
Tonnage (ton) 20
Power Traditional Power

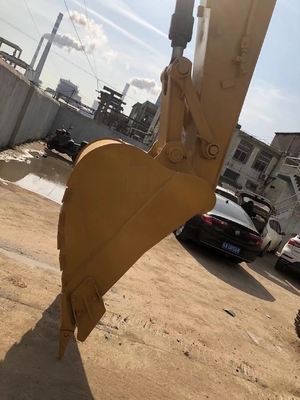

Bucket Backhoe
Manufacturer joint venture/import
Power Traditional Power
performance
Rotation speed (rpm) 11.5
Walking speed (km/h) 3.5/5.7
Climbing ability (%) 70/35 °
Ground specific voltage (Kpa) 6
Bucket excavation force (kN) 140.1
Dipper arm excavation force (kN) 106.4
dynamic system
Engine model Carter C6.4ACERT
Rated power (kW/rpm) 103/2000
Displacement (L) 6.37
Number of cylinders (6)
Cylinder diameter x stroke (mm) 102 x 130
Cooling method: water cooling

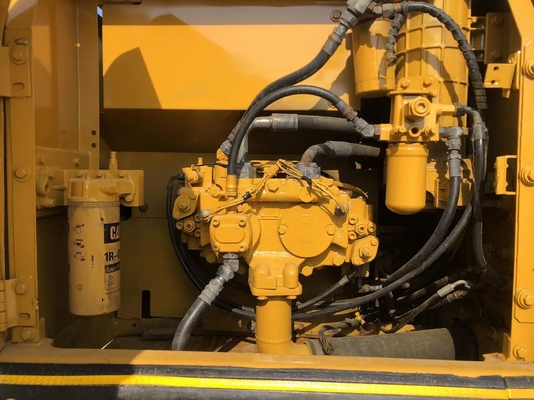

hydraulic system
Maximum flow rate of main pump (l/min) 205
Working hydraulic oil circuit (Mpa) 35
Hydraulic circuit for walking (Mpa) 35
Rotary hydraulic circuit (Mpa) 25
Pilot oil circuit (MPa) 3.9
Boom oil cylinder - number x cylinder diameter x stroke (mm) 2-120 x 1260
Stick oil cylinder - number x cylinder diameter x stroke (mm) 1-140 x 1504
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1-120 x 1104
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L) 410
Hydraulic oil tank (L) 120
Hydraulic system (L) 260 (including oil tank)
Engine oil change quantity (L) 30
Cooling liquid (L) 25
Main body size
Total length of transportation (mm) 9460
Total transportation width (mm) 2800
Total transportation height (mm) 3050
Full height of cab (mm) 2950
Balance weight ground clearance (mm) 1020
Track grounding length (mm) 3265
Total length of track (mm) 4075
Track shoe width (mm) 600
Total width of track (mm) 2800
Track gauge (mm) 2200
Minimum ground clearance (mm) 450
Rear end turning radius (mm) 2750
Scope of work
Maximum excavation radius of the parking surface (mm) 9850
Maximum excavation depth (mm) 6710
Maximum excavation height (mm) 9840
Maximum unloading height (mm) 6500
Maximum vertical excavation depth (mm) 6180
Maximum effective excavation depth (mm) 6540
Bulldozer width x height (mm) without bulldozer blade
Bulldozer lifting or pushing depth (mm) without bulldozer
|
|
