| MOQ: | 2 sets |
| Price: | $50,000.00/sets >=2 sets |
| Name:ShangHai Long shou Machinery Co,Ltd |
|
|
|
|

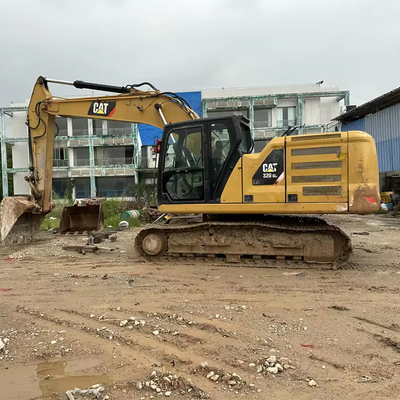

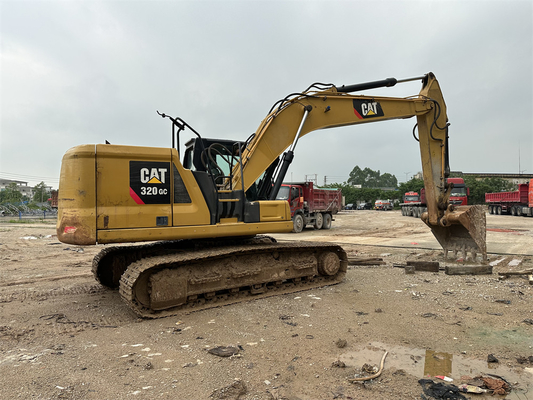

| Caterpillar 320D2GC Excavator Parameter Configuration |
| specifications |
| Working weight of the whole machine (kg) 20100.0-20800.0 |
| Bucket capacity (m ³) zero point nine |
| Tonnage (ton) 20 |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Rotation speed (rpm) 11.9 |
| Walking speed (km/h) 5.8 |
| Bucket excavation force (kN) 148 |
| Dipper arm excavation force (kN) 108 |
| Maximum traction force (kN) 206 |
| dynamic system |
| Engine model Cat C7.1 |
| Rated power (kW/rpm) 93.0 |
| Displacement (L) 7.01 |
| Cylinder diameter x stroke (mm) 105 |
| hydraulic system |
| Maximum flow rate of main pump (l/min) 428.0 |
| Pilot pump flow rate (L/min) 23.1 |
| Rotary hydraulic circuit (Mpa) 25.0 |
| Oil capacity |
| Fuel tank (L) 410 |
| Hydraulic oil tank (L) 138.0 |
| Engine oil change quantity (L) 16 |
| Cooling liquid (L) 25 |
| Main body size |
| Total length of transportation (mm) 9460 |
| Total transportation width (mm) 2800 |
| Total transportation height (mm) 3030 |
| Full height of cab (mm) 2950 |
| Track grounding length (mm) 3270 |
| Total length of track (mm) 4080 |
| Minimum ground clearance (mm) 450 |
| Rear end turning radius (mm) 2750 |
| Scope of work |
| Maximum excavation depth (mm) 6720 |
| Maximum excavation height (mm) 6570 |
| Maximum unloading height (mm) 6490 |
| Maximum vertical excavation depth (mm) 6010 |
|
|
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
