| Price: | $15,000.00/sets >=1 sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Tony zou
Whats app/Mobile phone:+8613564042317
We chat number:13564042317

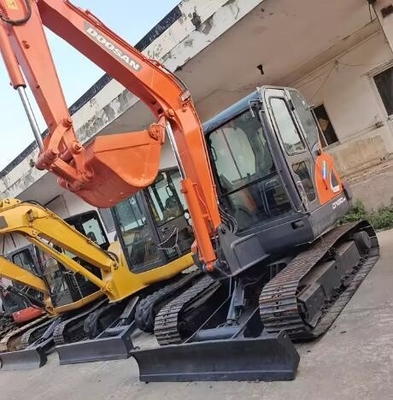

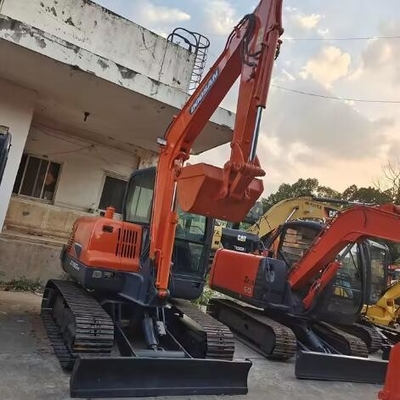

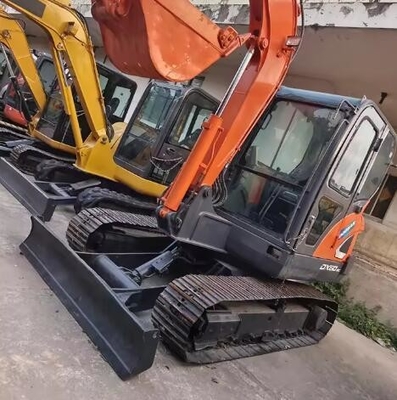

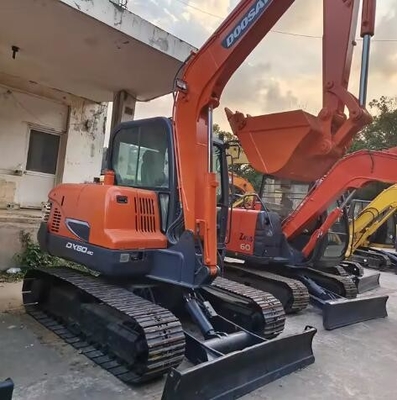

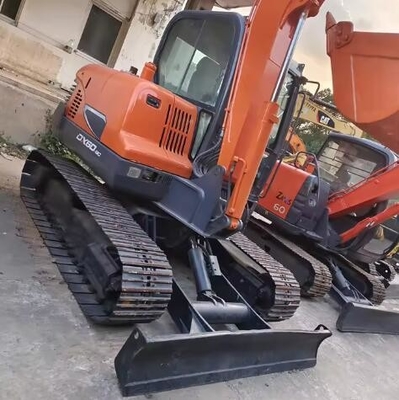

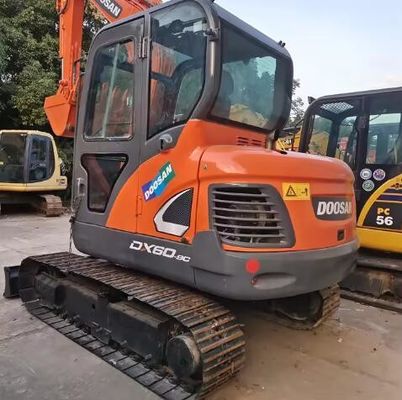

Doosan DX60 Excavator
specifications
Manufacturer joint venture/import
Bucket Backhoe
Tonnage (ton) 6
Working weight of the whole machine (kg) 5700
Bucket capacity (m ³) zero point two one
Boom length (mm) 3000
Stick length (mm) 1600
Origin Yantai
performance
Rotating speed (rpm) 9.5
Rotating torque (Nm) 20~22
Walking speed (km/h) 4.1/3.0
Climbing ability (%) 78/30 degrees
Bucket excavation force (kN) 44
Dipper arm excavation force (kN) 28
Maximum traction force (kN) 58
dynamic system
Engine model Yangma YANMAR 4TNV94L
Rated power (kW/rpm) 39.7/2200
Maximum torque (N.m) 20-22/1100
hydraulic system
Maximum flow rate of main pump (l/min) 60.5 × 2+36
Working hydraulic oil circuit (Mpa) 21.6
Hydraulic circuit for walking (Mpa) 21.6
Oil capacity
Fuel tank (L) 115
Main body size
Total length of transportation (mm) 5850
Total transportation width (mm) 2000
Transportation total height (mm) 2575 (to the top of the cab)
Total length of track (mm) 2540
Minimum ground clearance (mm) 400
Rear end turning radius (mm) 1650
Scope of work
Maximum excavation radius (mm) 6150
Maximum excavation depth (mm) 3805
Maximum excavation height (mm) 5790
Maximum unloading height (mm) 4065
Maximum vertical excavation depth (mm) 3038
Bulldozer width x height (mm) 2000 x 350
Excavator Load Method 1 :In bulk or Roroship whole complete machine on boat
Excavator Load Method 2 :In bulk or Roroship.take boom and bucket out
Excavator Load Method 3 :40FR load
Excavator Load Method 4 :40HQ Container
|
|
