| Price: | $20,000.00/sets >=1 sets |
| specifications |
| Tonnage (ton) 21 |
| Working weight of the whole machine (kg) 20500/21000 |
| Bucket capacity (m ³) 0.5-1.25 |
| Boom length (mm) 5700 |
| Stick length (mm) 2900 |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| dynamic system |
| Engine model Cummins B5.9-C |
| Rated power (kW/rpm) 107 |
| Maximum torque (N.m) 618/1500 |
| Displacement (L) 5.9 |
| performance |
| Ground specific voltage (Kpa) 42.2/43.2 |
| Rotation speed (rpm) 11.6 |
| Main body size |
| Total length of transportation (mm) 9690 |
| Total transportation width (mm) 2990 |
| Total transportation height (mm) 3000 |
| Full height of cab (mm) 2900 |

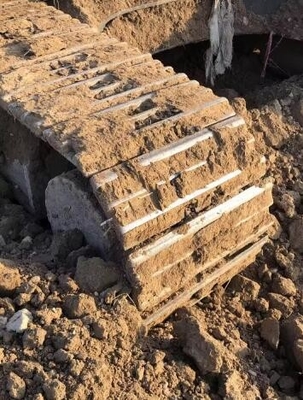

| Track shoe width (mm) 600 |
| Scope of work |
| Maximum excavation radius (mm) 9940 |
| Maximum excavation depth (mm) 6730 |
| Maximum excavation height (mm) 9450 |
| Maximum unloading height (mm) 6650 |
| Maximum vertical excavation depth (mm) 5830 |
| Maximum excavation radius of the parking surface (mm) 9750 |
Excavator Load Method 1 :In bulk or Roroship whole complete machine on boat
Excavator Load Method 2 :In bulk or Roroship.take boom and bucket out
Excavator Load Method 3 :40FR load
Excavator Load Method 4 :40HQ Container
|
|
