| Price: | $50,000.00/sets >=1 sets |

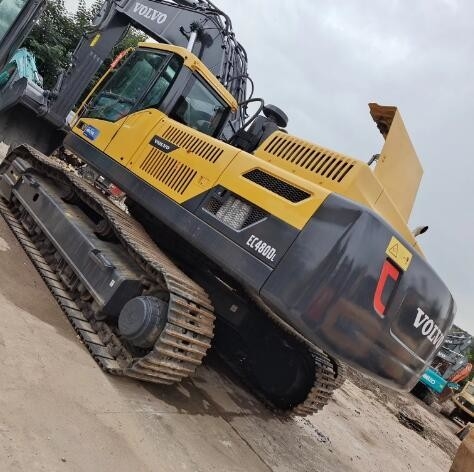

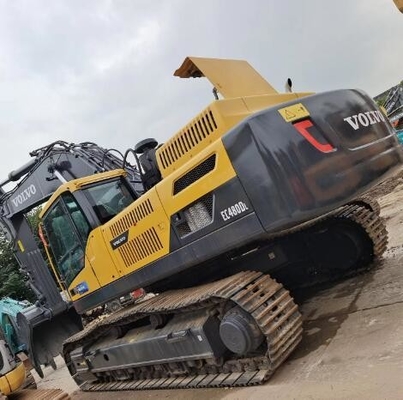

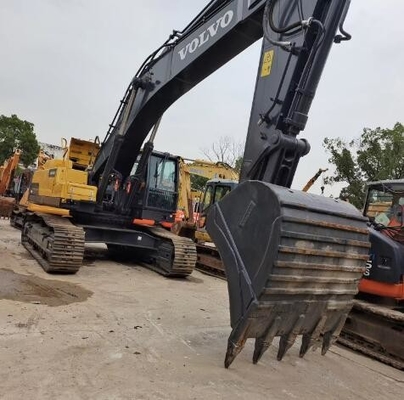

| Volvo EC480D Excavator Parameter Configuration |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |

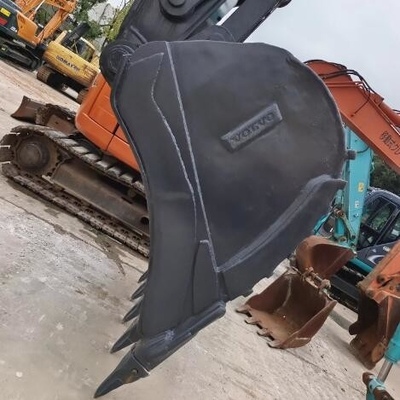

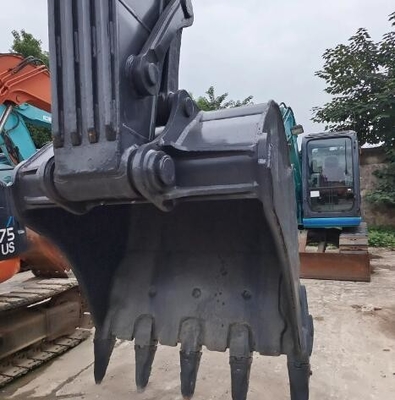

| Bucket Backhoe |
| Tonnage (ton) 48 |
| Working weight of the whole machine (kg) 47900-50500 |
| Bucket capacity (m ³) 1.77-3.80 |
| Boom length (mm) 7 |
| Stick length (mm) 4.8 |
| Origin Korea |
| performance |
| Rotation speed (rpm) 8.8 |
| Walking speed (km/h) 3.1-5.2 |
| Climbing ability (%) 35 |
| Ground specific voltage (Kpa) 73.7 (700mm) |
| Bucket excavation force (kN) 285/310.6 |
| Dipper arm excavation force (kN) 251 |
| dynamic system |
| Engine model Volvo VOLVO-D13-T4 (A) |
| Rated power (kW/rpm) 245 |
| Displacement (L) 12.8 |
| Number of cylinders (6) |
| Cylinder diameter x stroke (mm) 131 * 158 |
| Cooling method: water cooling |
| The work format can meet the emission requirements of Stage IIIB in Europe |
| hydraulic system |
| Main pump type: piston type |
| Traveling hydraulic motor type: piston type |
| Rotary hydraulic motor type: piston type |
| Maximum flow rate of main pump (l/min) 2 * 358 |
| Pilot oil circuit (MPa) 3.9 |
| Working hydraulic oil circuit (Mpa) 32.4/35.3 |
| Hydraulic circuit for walking (Mpa) 32.4 |
| Rotary hydraulic circuit (Mpa) 25.8 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 2 * 165 * 1590 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 1 * 190 * 1850 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1 * 165 * 1330 |
| Oil capacity |
| Fuel tank (L) 685 |
| Hydraulic oil tank (L) 270 |
| Hydraulic system (L) 525 |
| Engine oil change quantity (L) 42 |
| Cooling liquid (L) 60 |
| Main body size |
| Total length of transportation (mm) 12140 |
| Total transportation width (mm) 3367 |
| Total transportation height (mm) 3790 |
| Full height of cab (mm) 3090 |
| Track grounding length (mm) 4370 |
| Total length of track (mm) 5370 |
| Track shoe width (mm) 700 |
| Total width of track (mm) 3590 (in extended state) |
| Track gauge (mm) 2890 (in extended state) |
| Minimum ground clearance (mm) 746 |
| Ground clearance of counterweight (mm) 1385 |
| Rear end turning radius (mm) 3800 |
| Scope of work |
| Maximum excavation radius (mm) 12040 |
| Maximum excavation radius of the parking surface (mm) 11810 |
| Maximum excavation depth (mm) 7720 |
| Maximum excavation height (mm) 11010 |
| Maximum unloading height (mm) 7640 |
| Maximum vertical excavation depth (mm) 7110 |
| Maximum effective excavation depth (mm) 7570 |
| Arm rotation angle (left/right °) 183 |
Excavator Load Method 1 :In bulk or Roroship whole complete machine on boat
Excavator Load Method 2 :In bulk or Roroship.take boom and bucket out
Excavator Load Method 3 :40FR load
Excavator Load Method 4 :40HQ Container
|
|
