| Price: | $20,000.00/sets >=1 sets |

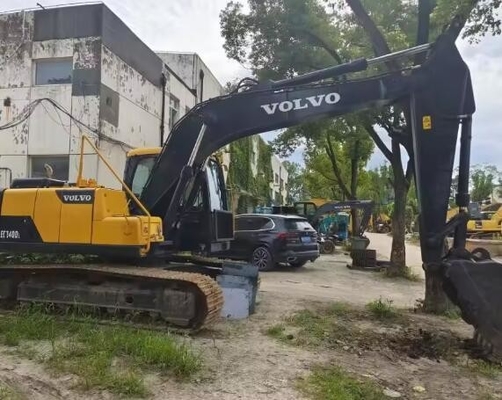

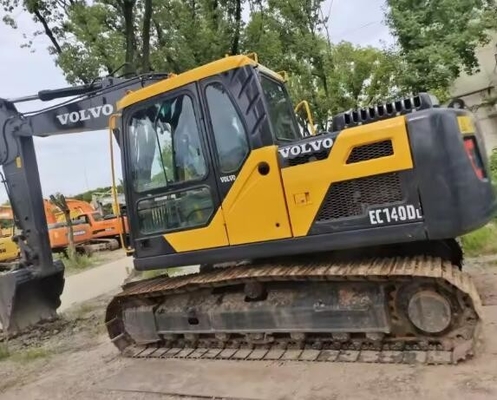

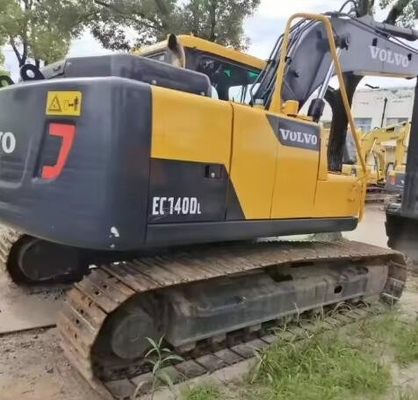

| Volvo EC140DL Excavator Parameter Configuration |
| specifications |
| Power Traditional Po |
| Manufacturer joint venture/impor |

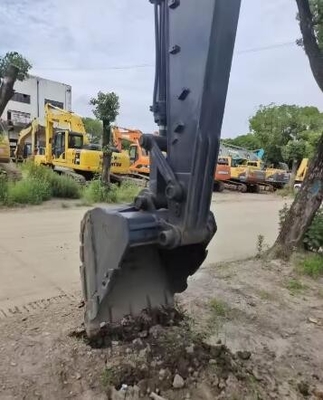

| Bucket Backhoe |
| Tonnage (ton) 14 |
| Working weight of the whole machine (kg) 12920-15870 |
| Bucket capacity (m ³) 0.25-0.66 |
| Boom length (mm) 4600 |
| Stick length (mm) 2500 |
| performance |
| Rotation speed (rpm) 11.2 |
| Rotating torque (Nm) 30.2 |
| Walking speed (km/h) 2.9/5.2 |
| Bucket excavation force (kN) 82.2 |
| Dipper arm excavation force (kN) 61.8 |
| Maximum traction force (kN) 119 |
| dynamic system |
| Engine model Volvo D3.8E |
| Rated power (kW/rpm) 77.4/2200 |
| Maximum torque (N.m) 369.5/1500 |
| Displacement (L) 3.77 |
| Number of cylinders 4 |
| Cylinder diameter x stroke (mm) 100 x 120 |
| Cooling method: water cooling |
| hydraulic system |

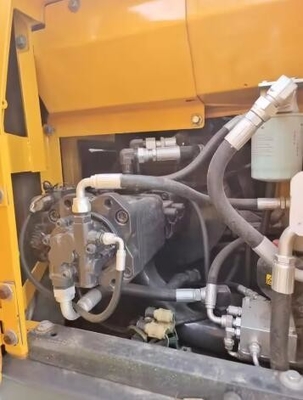

| Main pump type 2 * Variable axial piston pump |
| Maximum flow rate of main pump (l/min) 2 x 118 |
| Pilot oil circuit (MPa) 3.9 |
| Working hydraulic oil circuit (Mpa) 32.4/34.3 |
| Hydraulic circuit for walking (Mpa) 34.3 |
| Rotary hydraulic circuit (Mpa) 24.5 |
| Oil capacity |
| Fuel tank (L) 250 |
| Hydraulic oil tank (L) 85 |
| Hydraulic system (L) 230 |
| Engine oil change quantity (L) 13.2 |
| Cooling liquid (L) 22.3 |
| Main body size |
| Total length of transportation (mm) 7720 |
| Total transportation width (mm) 2590 |
| Full height of cab (mm) 2800 |
| Boarding width (mm) 2490 |
| Total length of track (mm) 3760 |
| Track shoe width (mm) 500 |
| Track gauge (mm) 1990 |
| Minimum ground clearance (mm) 436 |
| Ground clearance of counterweight (mm) 920 |
| Minimum turning radius of the front working device (mm) 2570 |
| Rear end turning radius (mm) 2200 |
| Number of supporting wheels (one side) (number) 7 |
| Number of carrier rollers (one side) (piece) 1 |
| Number of track shoes (one side) (piece) 46 |
| Scope of work |
| Maximum excavation radius (mm) 8330 |
| Maximum excavation radius of the parking surface (mm) 7820 |
| Maximum excavation depth (mm) 5530 |
| Maximum excavation height (mm) 8160 |
| Maximum unloading height (mm) 5790 |
| Maximum vertical excavation depth (mm) 4580 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
