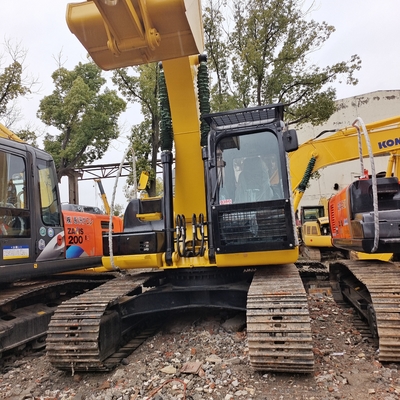

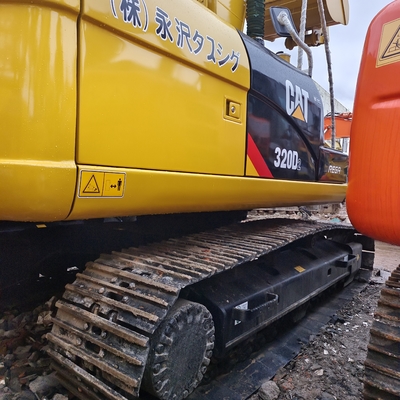

| Brand Name: | CATERPILLAR 320D |
| Price: | $29,000.00/sets >=1 sets |
| Name:ShangHai Long shou Machinery Co,Ltd |
|
|
| Parameter configuration of Caterpillar 320D hydraulic excavator |
| specifications |
| Working weight of the whole machine (kg) 20930 |
| Bucket capacity (m ³) one |
| Boom length (mm) 5700 |
| Stick length (mm) 2900 |
| Origin Xuzhou |
| Tonnage (ton) 20 |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Rotation speed (rpm) 11.5 |
| Walking speed (km/h) 3.5/5.7 |
| Climbing ability (%) 70/35 ° |
| Ground specific voltage (Kpa) 6 |
| Bucket excavation force (kN) 140.1 |
| Dipper arm excavation force (kN) 106.4 |
| dynamic system |
| Engine model Carter C6.4ACERT |
| Rated power (kW/rpm) 103/2000 |
| Displacement (L) 6.37 |
| Number of cylinders (6) |
| Cylinder diameter x stroke (mm) 102 x 130 |
| Cooling method: water cooling |

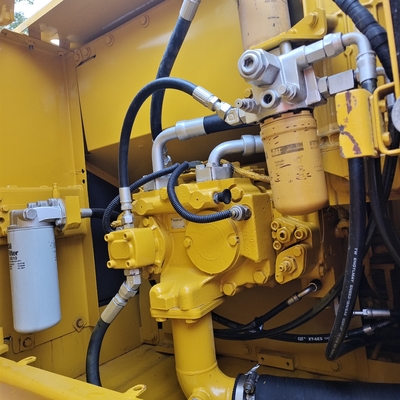

| hydraulic system |
| Maximum flow rate of main pump (l/min) 205 |
| Working hydraulic oil circuit (Mpa) 35 |
| Hydraulic circuit for walking (Mpa) 35 |
| Rotary hydraulic circuit (Mpa) 25 |
| Pilot oil circuit (MPa) 3.9 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 2-120 x 1260 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 1-140 x 1504 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1-120 x 1104 |
| Is the hydraulic crushing pipeline standard? No |
| Oil capacity |
| Fuel tank (L) 410 |
| Hydraulic oil tank (L) 120 |
| Hydraulic system (L) 260 (including oil tank) |
| Engine oil change quantity (L) 30 |
| Cooling liquid (L) 25 |
| Main body size |
| Total length of transportation (mm) 9460 |
| Total transportation width (mm) 2800 |
| Total transportation height (mm) 3050 |
| Full height of cab (mm) 2950 |
| Balance weight ground clearance (mm) 1020 |
| Track grounding length (mm) 3265 |
| Total length of track (mm) 4075 |
| Track shoe width (mm) 600 |
| Total width of track (mm) 2800 |
| Track gauge (mm) 2200 |
| Minimum ground clearance (mm) 450 |
| Rear end turning radius (mm) 2750 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 9850 |
| Maximum excavation depth (mm) 6710 |
| Maximum excavation height (mm) 9840 |
| Maximum unloading height (mm) 6500 |
| Maximum vertical excavation depth (mm) 6180 |
| Maximum effective excavation depth (mm) 6540 |
| Bulldozer width x height (mm) without bulldozer blade |
| Bulldozer lifting or pushing depth (mm) without bulldozer |
|
|
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
