| MOQ: | 3000 sets |
| Price: | $28,000.00 - $29,000.00/sets |
| Company’s Name:ShangHai Long shou machinery company Limited |
| Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China |
| Contact :Olivia.He |
| Whats app/ Mobile phone:+8618701954897 |
| We chat number:18701954897 |
|
|

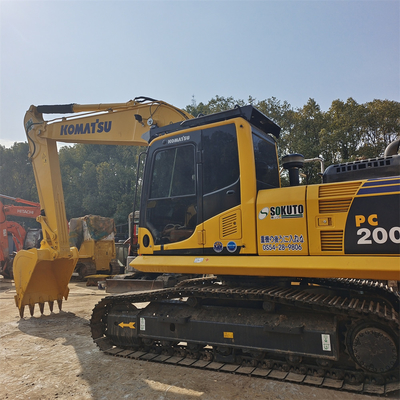

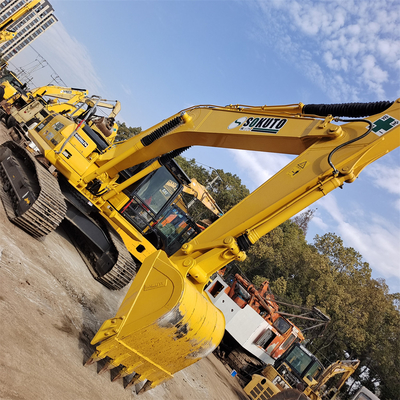

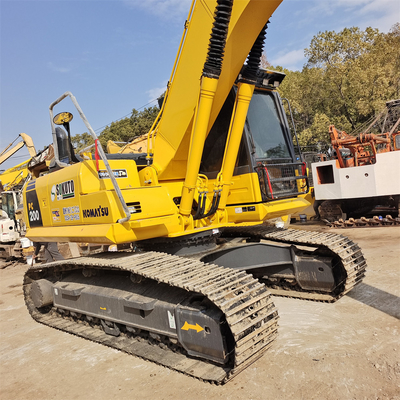

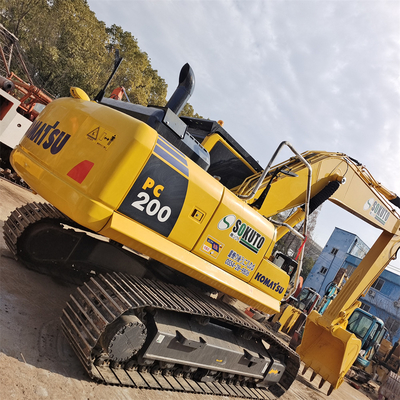

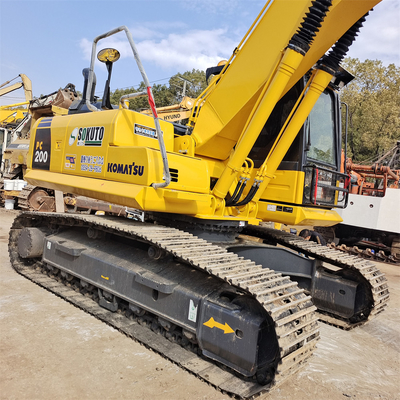

| Parameter Configuration of Komatsu PC200-8 Excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Working weight of the whole machine (kg) 19900 |
| Bucket capacity (m ³) zero point eight |
| Boom length (mm) 5700 |
| Stick length (mm) 2925 |
| Origin: Jining, Shandong |
| Tonnage (ton) 20 |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Rotation speed (rpm) 12.4 |
| Walking speed (km/h) 3.0/4.1/5.5 |
| Climbing ability (%) 70/35 ° |
| Ground specific voltage (Kpa) 44.1 |
| Bucket excavation force (kN) 149 |
| Dipper arm excavation force (kN) 108 |
| dynamic system |
| Engine model Komatsu SAA6D107E-1 |
| Rated power (kW/rpm) 110/2000 |
| Displacement (L) 6.69 |
| Working form: 6-cylinder, direct injection, turbocharged, post cooled engine; Meets the 2006 EPA/Tier3 and EUIIIA level standards. |
| hydraulic system |
| Traveling hydraulic motor type axial piston motor × 2 (with parking brake) |
| Rotary hydraulic motor type axial piston motor × 1 (with rotary holding valve) |
| Maximum flow rate of main pump (l/min) 439 |
| Hydraulic circuit for walking (Mpa) 37.3 |
| Rotary hydraulic circuit (Mpa) 28.9 |
| Control hydraulic circuit (Mpa) 3.2 Pilot oil circuit |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 120 x 1334 x 85 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 135 x 1490 x 95 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 115 x 1120 x 80 |
| Is the hydraulic crushing pipeline standard? No |
| Oil capacity |
| Fuel tank (L) 400 |
| Hydraulic oil tank (L) 135 |
| Engine oil change quantity (L) 23.1 |
| Cooling liquid (L) 20.4 |
| Main body size |
| Total length of transportation (mm) 9480 |
| Total transportation width (mm) 2800 |
| Total transportation height (mm) 3040 |
| Full height of cab (mm) 3040 |
| Track grounding length (mm) 3275 |
| Total length of track (mm) 4070 |
| Track shoe width (mm) 600 |
| Total width of track (mm) 2800 |
| Track gauge (mm) 2200 |
| Ground clearance of counterweight (mm) 1085 |
| Minimum ground clearance (mm) 440 |
| Rear end turning radius (mm) 2710 |
| Scope of work |
| Maximum excavation radius (mm) 9875 |
| Maximum excavation radius of the parking surface (mm) 9700 |
| Maximum excavation depth (mm) 6620 |
| Maximum excavation height (mm) 10000 |
| Maximum unloading height (mm) 7110 |
| Maximum vertical excavation depth (mm) 5980 |
| Maximum effective excavation depth (mm) 6370 |
| Bulldozer lifting or pushing depth (mm) without bulldozer |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
