| MOQ: | 300 sets |
| Price: | $26,000.00 - $33,000.00/sets |
| Company’s Name:ShangHai Long shou Machinery Co, Ltd |
| Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China |
| Contact :Olivia.He |
| Whats app/ Mobile phone:+8618701954897 |
| We chat number:18701954897 |
|
|

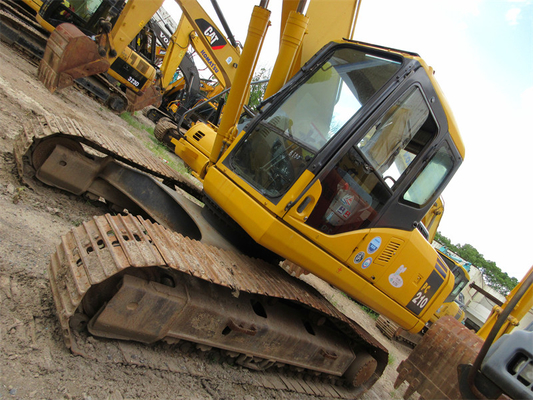

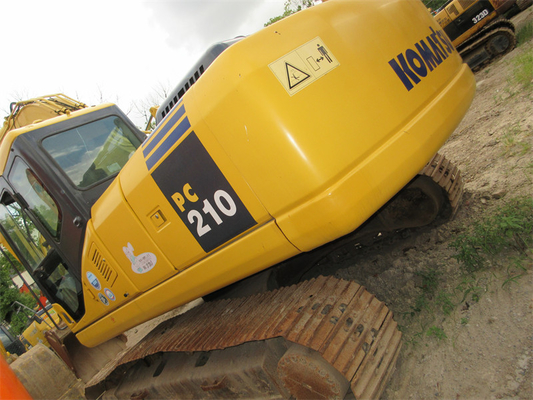

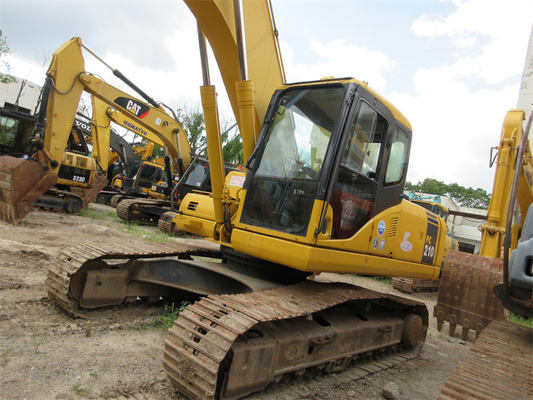

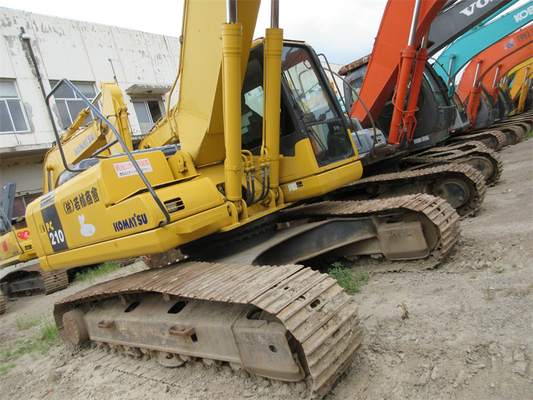

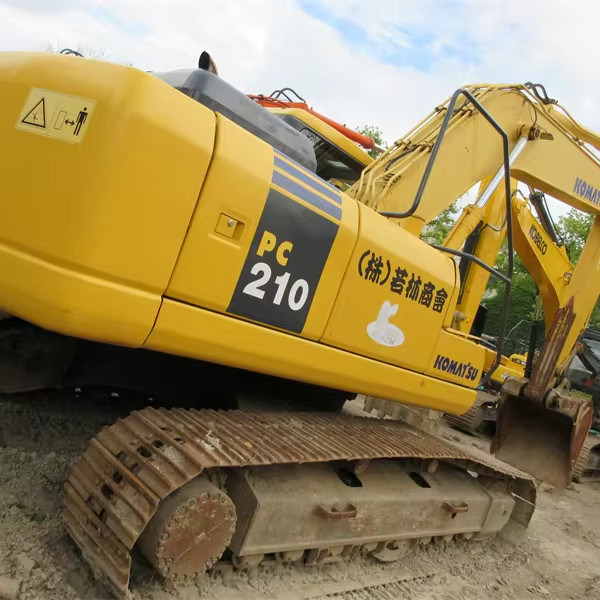

| Parameter Configuration of Komatsu PC210LC-7 Excavator |
| specifications |
| Working weight of the whole machine (kg) 21305 |
| Bucket capacity (m ³) zero point nine six |
| Tonnage (ton) 21 |
| Manufacturer joint venture/import |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Ground specific voltage (Kpa) 44.1 |
| Walking speed (km/h) 5.5 |
| Bucket excavation force (kN) 178.5 |
| dynamic system |
| Engine model Komatsu SAA6D102E-2 |
| Rated power (kW/rpm) 107/1950 |
| Displacement (L) 5.9 |
| Oil capacity |
| Fuel tank (L) 400 |
| Hydraulic system (L) 143 |
| Engine oil change quantity (L) 143 |
| Cooling liquid (L) 30.9 |
| Main body size |
| Total length of transportation (mm) 9540 |
| Total transportation width (mm) 2980 |
| Total transportation height (mm) 2985 |
| Full height of cab (mm) 3015 |
| Balance weight ground clearance (mm) 1100 |
| Track grounding length (mm) 3640 |
| Track shoe width (mm) 600 |
| Track gauge (mm) 2380 |
| Minimum ground clearance (mm) 440 |
| Rear end turning radius (mm) 2800 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 8660 |
| Maximum excavation depth (mm) 5380 |
| Maximum excavation height (mm) 9500 |
| Maximum unloading height (mm) 6630 |
| Maximum vertical excavation depth (mm) 4630 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
