| Price: | $12,000.00 - $20,000.00/sets |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine

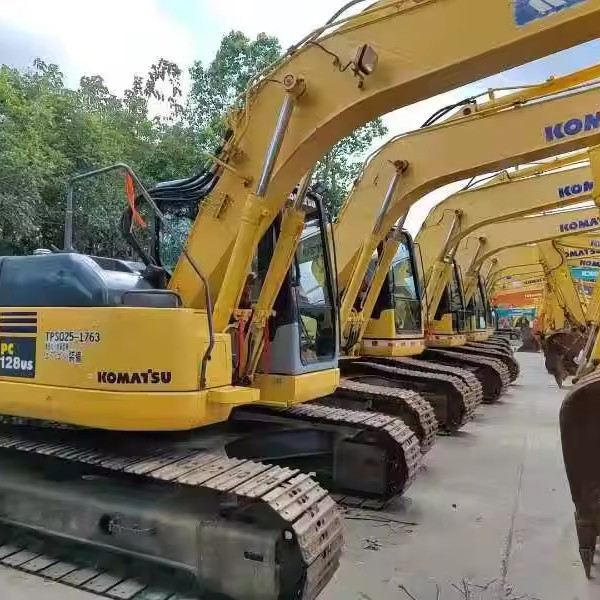

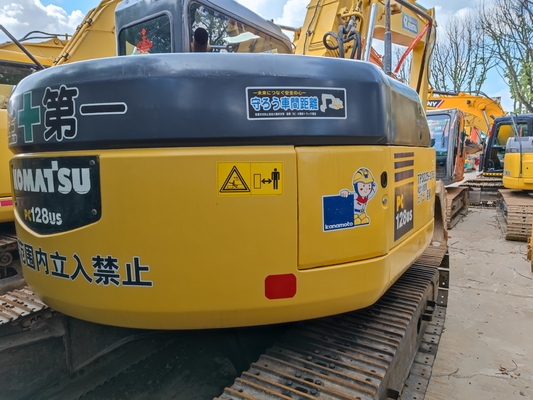

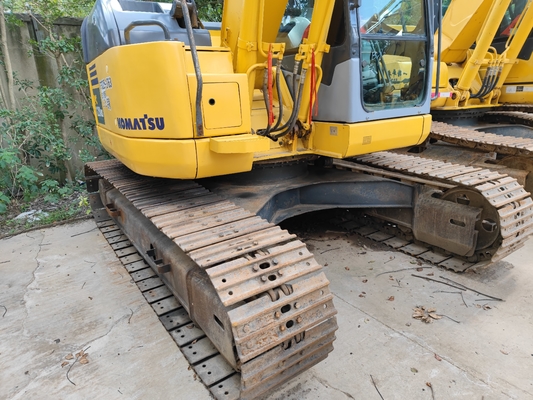

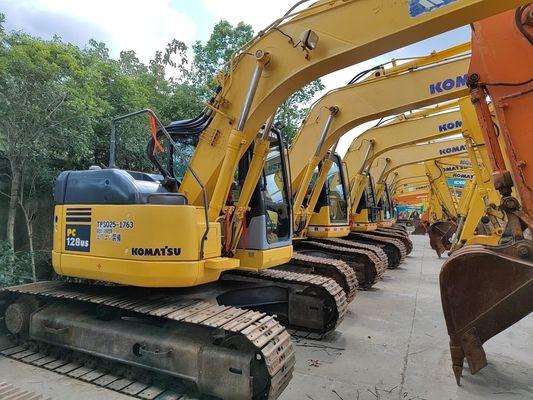

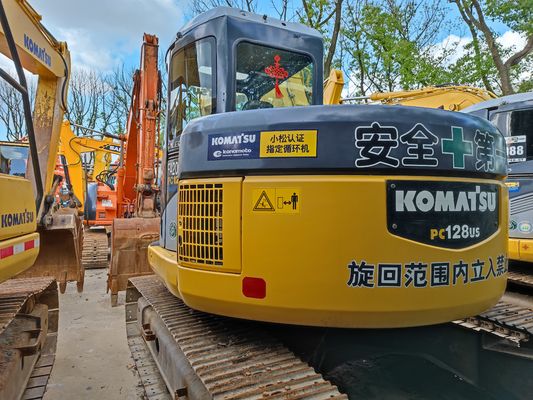

| Komatsu PC128US excavator |
| specifications |
| Working weight of the whole machine (kg) 12700 |
| Bucket capacity (m ³) zero point four four |
| Boom length (mm) 4600 |
| Stick length (mm) 2500 |
| Origin Japan |
| Tonnage (ton) 12 |
| Manufacturer joint venture/import |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Ground specific voltage (Kpa) 41.4 |
| Rotation speed (rpm) 12 |
| Walking speed (km/h) 51 |
| dynamic system |
| Engine model Komatsu S4D102E |
| Rated power (kW/rpm) 64/2200 |
| Displacement (L) 3.9 |
| Number of cylinders 4 |
| hydraulic system |
| Main overflow set pressure (Mpa) 34.818 |
| Maximum flow rate of main pump (l/min) 226 |
| Oil capacity |
| Fuel tank (L) 135 |
| Hydraulic system (L) 122 |
| Main body size |
| Total length of transportation (mm) 7835 |
| Total transportation width (mm) 2460 |
| Total transportation height (mm) 2775 |
| Full height of cab (mm) 2775 |
| Ground clearance of counterweight (mm) 885 |
| Track grounding length (mm) 2750 |
| Track shoe width (mm) 500 |
| Total width of track (mm) 2460 |
| Track gauge (mm) 1960 |
| Minimum ground clearance (mm) 415 |
| Rear end turning radius (mm) 1465 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 8085 |
| Maximum excavation depth (mm) 5445 |
| Maximum excavation height (mm) 9300 |
| Maximum unloading height (mm) 6980 |
| Maximum vertical excavation depth (mm) 4865 |
|
|
