| Price: | $12,000.00 - $20,000.00/sets |

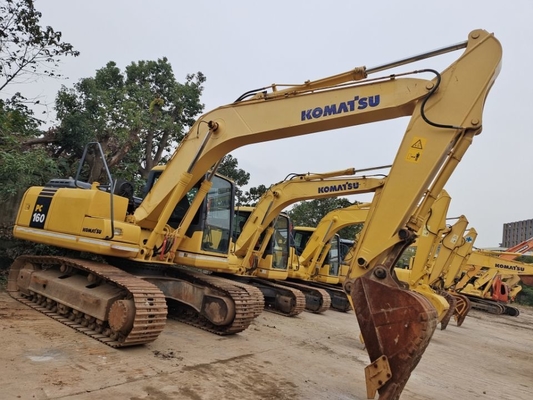

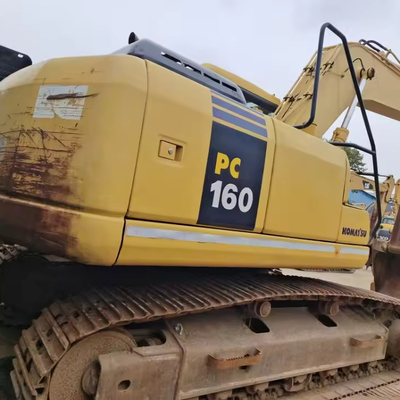

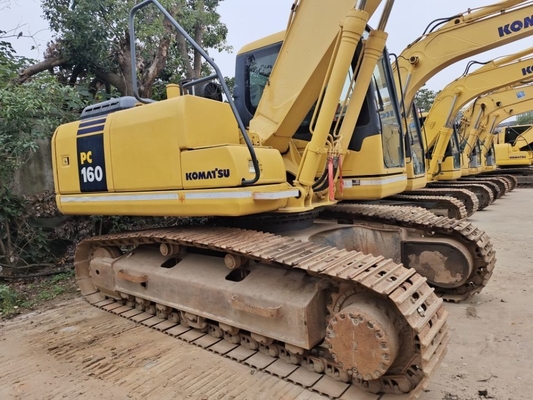

| Komatsu PC160-6 Excavator |
| specifications |
| Working weight of the whole machine (kg) 16300 |
| Bucket capacity (m ³) zero point six seven |
| Tonnage (ton) 16 |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Ground specific voltage (Kpa) 51 |
| Walking speed (km/h) 5.5 |
| Bucket excavation force (kN) 135.3 |
| dynamic system |
| Engine model Komatsu SA4D102E |
| Rated power (kW/rpm) 84.7/2100 (80/2100) |
| Displacement (L) 3.9 |
| Oil capacity |
| Fuel tank (L) 250 |
| Hydraulic system (L) 120 |
| Engine oil change quantity (L) 16 |
| Cooling liquid (L) 20 |
| Main body size |
| Total length of transportation (mm) 8565 |
| Total transportation width (mm) 2490 |
| Total transportation height (mm) 8735 |
| Full height of cab (mm) 2829 |
| Ground clearance of counterweight (mm) 989 |
| Track grounding length (mm) 2880 |
| Track shoe width (mm) 500 |
| Minimum ground clearance (mm) 442 |
| Rear end turning radius (mm) 2417 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 8190 |
| Maximum excavation depth (mm) 5240 |
| Maximum excavation height (mm) 8735 |
| Maximum unloading height (mm) 6090 |
| Maximum vertical excavation depth (mm) 4546 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
