| Price: | $12,000.00 - $20,000.00/sets |

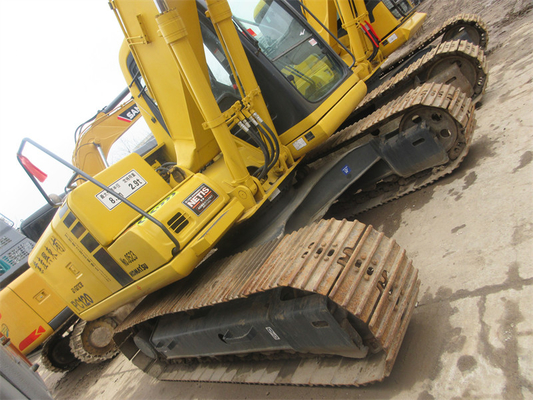

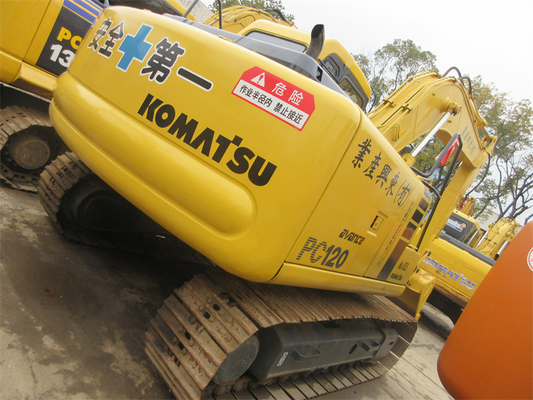

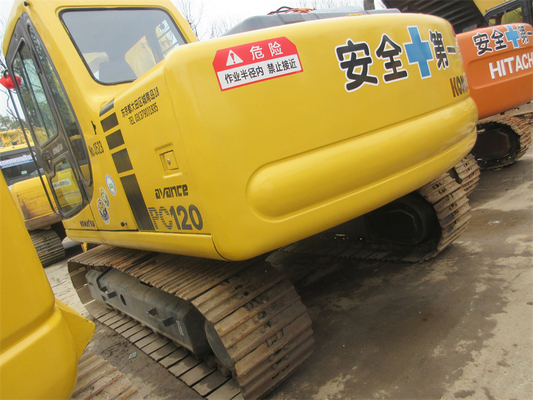

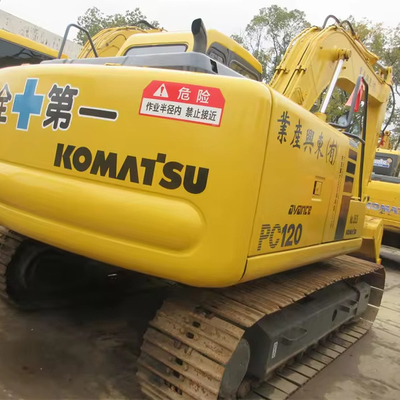

| Komatsu PC120 excavator |
| specifications |
| Working weight of the whole machine (kg) 11498.6 |
| Boom length (mm) 4600 |
| Stick length (mm) 2002 |
| Origin Japan |
| Tonnage (ton) 12 |
| Manufacturer joint venture/import |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Ground specific voltage (Kpa) 41.2 |
| Rotation speed (rpm) 12 |
| Walking speed (km/h) 2.2/3.6 |
| Climbing ability (%) 70/35 ° |
| dynamic system |
| Engine model Komatsu S4D105-5 |
| Rated power (kW/rpm) 67.1/ |
| Displacement (L) 4.3 |
| hydraulic system |
| Maximum flow rate of main pump (l/min) 323 |
| Oil capacity |
| Fuel tank (L) 230 |
| Hydraulic oil tank (L) 145 |
| Main body size |
| Total length of transportation (mm) 7470 |
| Total transportation width (mm) 2430 |
| Total transportation height (mm) 2675 |
| Full height of cab (mm) 2675 |
| Ground clearance of counterweight (mm) 910 |
| Track grounding length (mm) 2570 |
| Track shoe width (mm) 480 |
| Total width of track (mm) 2430 |
| Track gauge (mm) 1950 |
| Minimum ground clearance (mm) 400 |
| Rear end turning radius (mm) 2225 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 7540 |
| Maximum excavation depth (mm) 5000 |
| Maximum excavation height (mm) 7550 |
| Maximum unloading height (mm) 5220 |
| Maximum vertical excavation depth (mm) 4200 |
|
|
