| Price: | $18,000.00 - $22,000.00/sets |

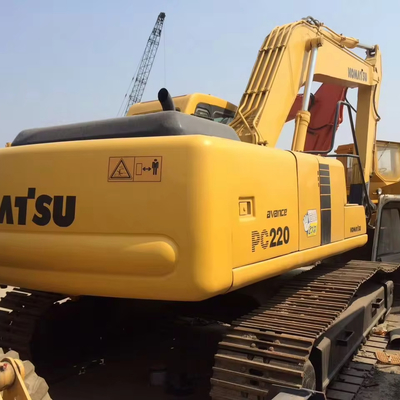

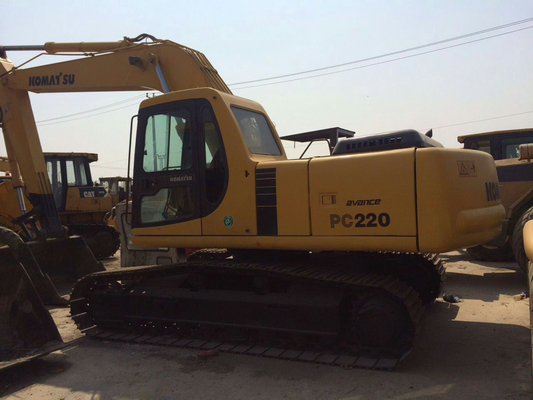

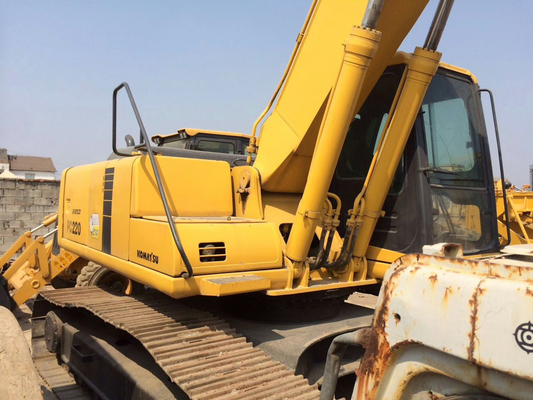

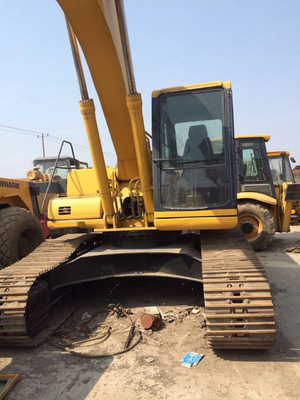

| KOMATSU PC220-6 |
| specifications |
| Tonnage (ton) 22 |
| Working weight of the whole machine (kg) 22180 |
| Bucket capacity (m ³) 1/0.72/1.3 |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| dynamic system |

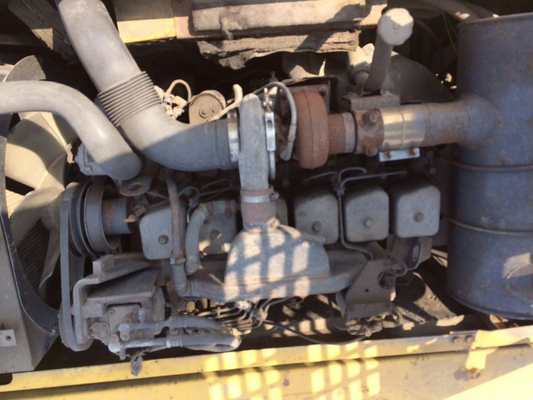

| Engine model Komatsu SA6D102E |
| Rated power (kW/rpm) 119.3/2100 (117.8/2100) |
| Displacement (L) 5.9 |
| performance |
| Ground specific voltage (Kpa) 48.3 |
| Walking speed (km/h) 5.5 |
| Oil capacity |
| Fuel tank (L) 340 |
| Hydraulic system (L) 166 |
| Main body size |
| Total length of transportation (mm) 9780 |
| Total transportation width (mm) 2980 |
| Total transportation height (mm) 3125 |
| Full height of cab (mm) 2905 |
| Ground clearance of counterweight (mm) 1085 |
| Minimum ground clearance (mm) 440 |
| Rear end turning radius (mm) 2860 |
| Track gauge (mm) 2380 |
| Track shoe width (mm) 600 |
| Track grounding length (mm) 3445 |
| Scope of work |
| Maximum excavation depth (mm) 5880 |
| Maximum excavation height (mm) 9070 |
| Maximum unloading height (mm) 6120 |
| Maximum vertical excavation depth (mm) 4800 |
| Maximum excavation radius of the parking surface (mm) 9090 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
| Price: | $18,000.00 - $22,000.00/sets |
| KOMATSU PC220-6 |
| specifications |
| Tonnage (ton) 22 |
| Working weight of the whole machine (kg) 22180 |
| Bucket capacity (m ³) 1/0.72/1.3 |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| dynamic system |
| Engine model Komatsu SA6D102E |
| Rated power (kW/rpm) 119.3/2100 (117.8/2100) |
| Displacement (L) 5.9 |
| performance |
| Ground specific voltage (Kpa) 48.3 |
| Walking speed (km/h) 5.5 |
| Oil capacity |
| Fuel tank (L) 340 |
| Hydraulic system (L) 166 |
| Main body size |
| Total length of transportation (mm) 9780 |
| Total transportation width (mm) 2980 |
| Total transportation height (mm) 3125 |
| Full height of cab (mm) 2905 |
| Ground clearance of counterweight (mm) 1085 |
| Minimum ground clearance (mm) 440 |
| Rear end turning radius (mm) 2860 |
| Track gauge (mm) 2380 |
| Track shoe width (mm) 600 |
| Track grounding length (mm) 3445 |
| Scope of work |
| Maximum excavation depth (mm) 5880 |
| Maximum excavation height (mm) 9070 |
| Maximum unloading height (mm) 6120 |
| Maximum vertical excavation depth (mm) 4800 |
| Maximum excavation radius of the parking surface (mm) 9090 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
