| Price: | $18,000.00 - $22,000.00/sets |

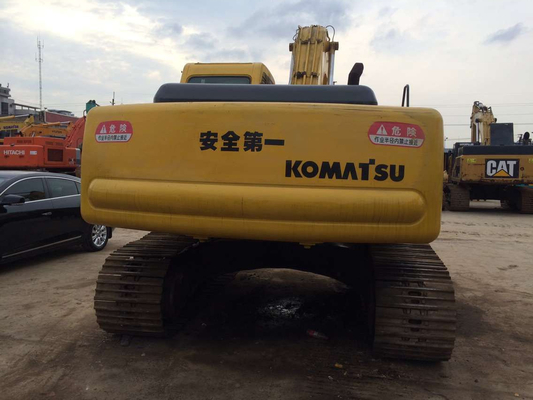

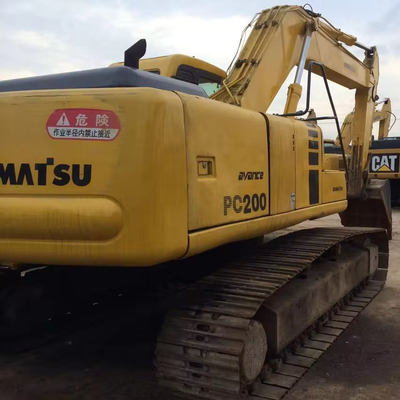

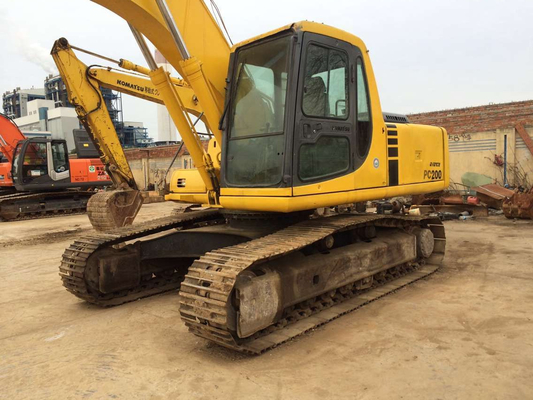

| Komatsu PC200-6 Excavator |
| specifications |
| Working weight of the whole machine (kg) 19180 |
| Bucket capacity (m ³) zero point eight |

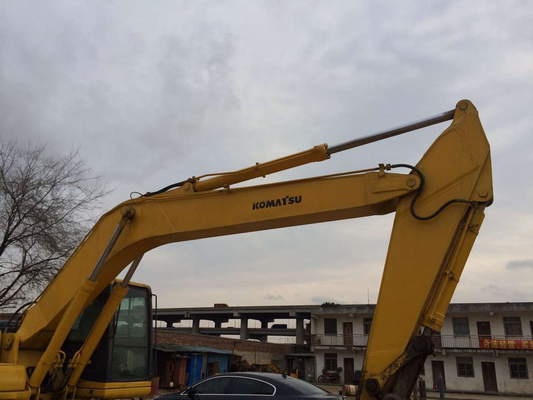

| Boom length (mm) 5700 |
| Stick length (mm) 1840 |
| Origin Japan |
| Tonnage (ton) 20 |
| Manufacturer joint venture/import |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Ground specific voltage (Kpa) 44.1 |
| Rotation speed (rpm) 12.4 |
| Walking speed (km/h) 5.5 |
| Climbing ability (%) 70/35 ° |
| dynamic system |
| Engine model Komatsu S6D102E |
| Rated power (kW/rpm) 99/2200 |
| Displacement (L) 5.9 |
| Number of cylinders (6) |
| hydraulic system |
| Main overflow set pressure (Mpa) 34.818 |
| Maximum flow rate of main pump (l/min) 412 |
| Oil capacity |
| Fuel tank (L) 340 |
| Hydraulic system (L) 166 |
| Main body size |
| Total length of transportation (mm) 9510 |
| Total transportation width (mm) 2800 |
| Total transportation height (mm) 2985 |
| Full height of cab (mm) 2905 |
| Balance weight ground clearance (mm) 440 |
| Track grounding length (mm) 3270 |
| Track shoe width (mm) 600 |
| Total width of track (mm) 2800 |
| Track gauge (mm) 2200 |
| Minimum ground clearance (mm) 440 |
| Rear end turning radius (mm) 2750 |
| Scope of work |
| Maximum excavation height (mm) 8895 |
| Maximum unloading height (mm) 6065 |
| Maximum vertical excavation depth (mm) 4965 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
