| Price: | $14,000.00 - $18,000.00/sets |

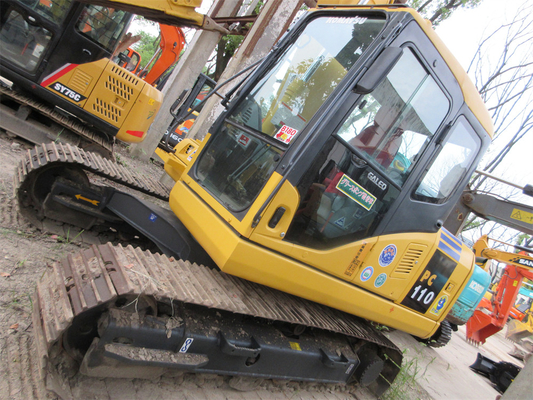

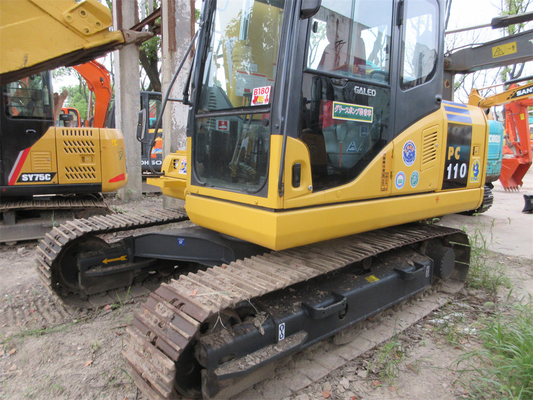

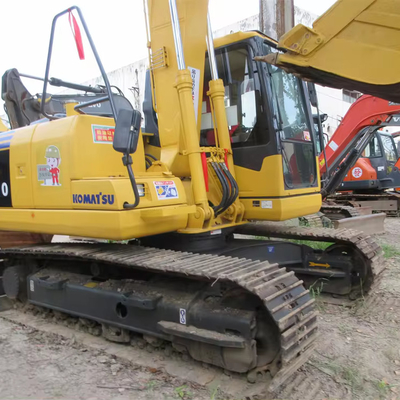

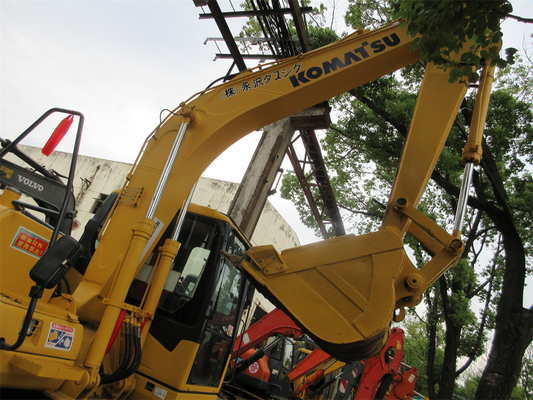

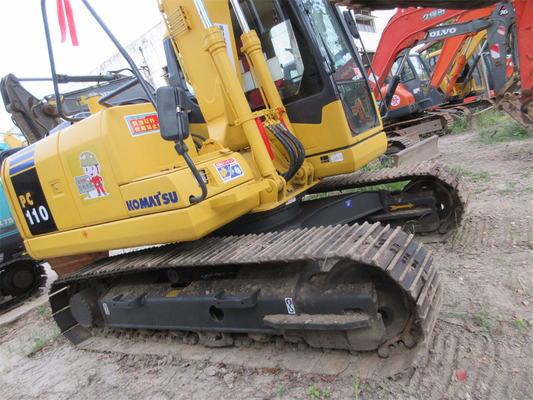

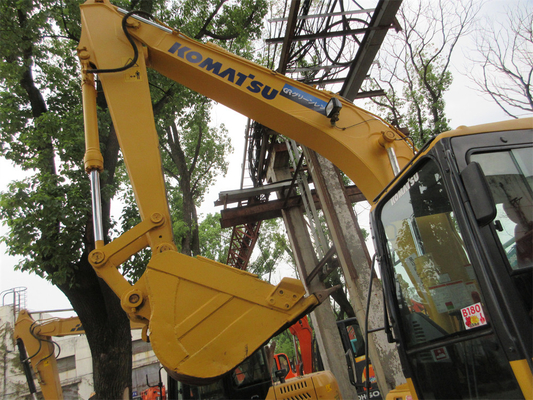

| Komatsu PC110-7 Excavator |
| specifications |
| Working weight of the whole machine (kg) 10980 |
| Bucket capacity (m ³) zero point four eight |
| Boom length (mm) 4260 |
| Stick length (mm) 2260 |
| Origin: Japan |
| Tonnage (ton) 11 |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Rotation speed (rpm) 11 |
| Walking speed (km/h) 2.7-5.5 |
| Climbing ability (%) 70/30 ° |
| Ground specific voltage (Kpa) 0.37 |
| Bucket excavation force (kN) 86 |
| Dipper arm excavation force (kN) 56 |
| dynamic system |
| Engine model Komatsu SAA4D95LE-3 |
| Rated power (kW/rpm) 65/2200 |
| Displacement (L) 3.26 |
| Cylinder diameter x stroke (mm) 95 x 115 |
| Cooling method: water cooling |
| Working mode: 4-stroke, post cooling, direct injection; Complies with the 2001 EPA/EU/Japan Level 2 emission standards. |
| hydraulic system |
| The maximum flow rate of the main pump (l/min) is 226L/min |
| Traveling hydraulic motor type axial piston motor × 2 (with parking brake) |
| Rotary hydraulic motor type axial piston motor × 1 (with rotary holding valve) |
| Hydraulic circuit for walking (Mpa) 355 |
| Rotary hydraulic circuit (Mpa) 295 |
| Control hydraulic circuit (Mpa) 325 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 110 x 980 x 65 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 133 x 1005 x 75 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 104 x 885 x 60 |
| Is the hydraulic crushing pipeline standard? No |
| Oil capacity |
| Fuel tank (L) 247 |
| Hydraulic oil tank (L) 90 |
| Engine oil change quantity (L) 11 |
| Cooling liquid (L) 13.4 |
| Main body size |
| Total length of transportation (mm) 7170 |
| Total transportation width (mm) 2490 |
| Total transportation height (mm) 2810 |
| Full height of cab (mm) 2810 |
| Ground clearance of counterweight (mm) 855 |
| Track grounding length (mm) 2705 |
| Total length of track (mm) 3435 |
| Track shoe width (mm) 500 |
| Total width of track (mm) 2490 |
| Track gauge (mm) 1990 |
| Minimum ground clearance (mm) 400 |
| Rear end turning radius (mm) 2110 |
| Scope of work |
| Maximum excavation radius (mm) 7730 |
| Maximum excavation radius of the parking surface (mm) 7600 |
| Maximum excavation depth (mm) 5060 |
| Maximum excavation height (mm) 7910 |
| Maximum unloading height (mm) 5650 |
| Maximum vertical excavation depth (mm) 4570 |
| Maximum effective excavation depth (mm) 4730 |
| Bulldozer lifting or pushing depth (mm) without bulldozer |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
