| Price: | $10,000.00 - $15,000.00/sets |

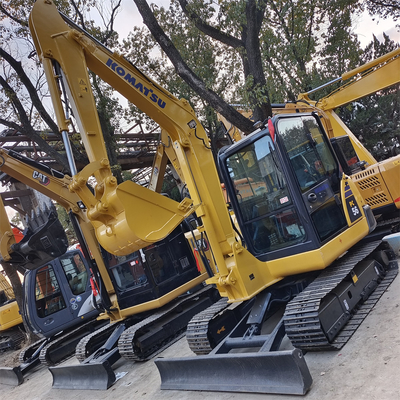

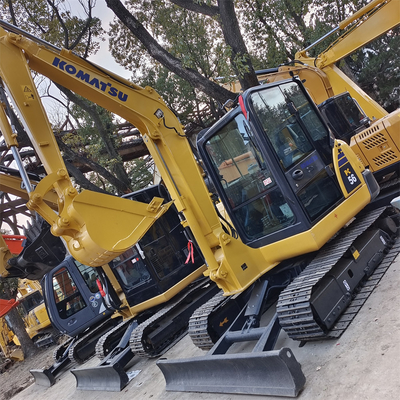

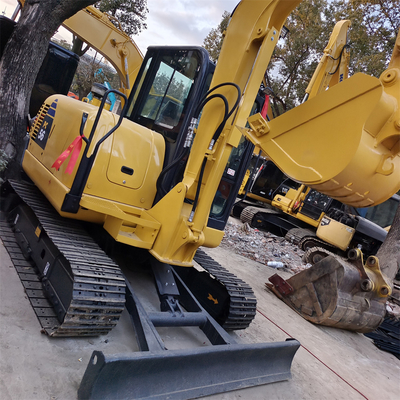

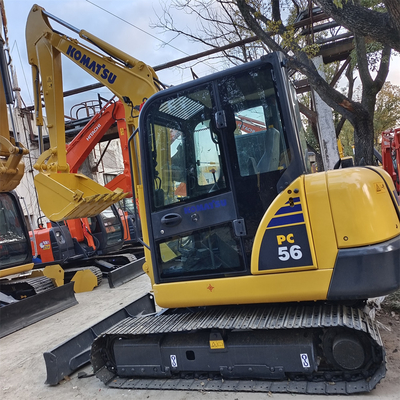

| Komatsu PC56-7 Excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Tonnage (ton) 5 |
| Working weight of the whole machine (kg) 5300 |
| Bucket capacity (m ³) 0.055-0.22 |
| Origin: Jining, Shandong |
| performance |
| Rotation speed (rpm) 9 |
| Walking speed (km/h) 2.6/4.1 |
| Ground specific voltage (Kpa) 30.7 |
| dynamic system |

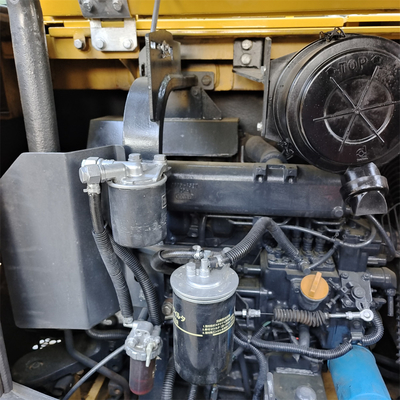

| Engine model Komatsu S4D87E-1 |
| Rated power (kW/rpm) 34.5/2300 |
| Displacement (L) 2.434 |
| Cooling method: water cooling |
| Working form: 4-stroke, water-cooled inline, direct injection engine, stroke: 102.4mm, cylinder diameter: 87mm. |
| hydraulic system |
| Rotary hydraulic motor type fixed plunger type × 1 |
| Traveling hydraulic motor type variable plunger type × 2 |
| Working hydraulic oil circuit (Mpa) 26.5 |
| Hydraulic circuit for walking (Mpa) 26.5 |
| Rotary hydraulic circuit (Mpa) 19.6 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 90 x 689.5 x 55 |
| Dipper rod oil cylinder - number x cylinder diameter x stroke (mm) 85 x 709.5 x 55 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 75 x 580 x 50 |
| Is the hydraulic crushing pipeline standard? No |
| Oil capacity |
| Fuel tank (L) 120 |
| Hydraulic oil tank (L) 55 |
| Engine oil change quantity (L) 9.7 |
| Cooling liquid (L) 8 |
| Main body size |
| Total length of transportation (mm) 5935 |
| Total transportation width (mm) 1960 |
| Total transportation height (mm) 2550 |
| Full height of cab (mm) 2550 |
| Track grounding length (mm) 1980 |
| Total length of track (mm) 2500 |
| Track shoe width (mm) 400 |
| Total width of track (mm) 1960 |
| Track gauge (mm) 1560 |
| Minimum ground clearance (mm) 320 |
| Rear end turning radius (mm) 1650 |
| Scope of work |
| Maximum excavation radius (mm) 6130 |
| Maximum excavation radius of the parking surface (mm) 5980 |
| Maximum excavation depth (mm) 3810 |
| Maximum excavation height (mm) 5860 |
| Maximum unloading height (mm) 4130 |
| Maximum vertical excavation depth (mm) 3060 |
| Bulldozer lifting or pushing depth (mm) 355 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
