| Price: | $27,000.00/sets >=1 sets |

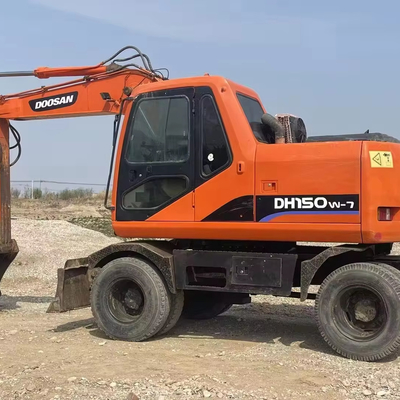

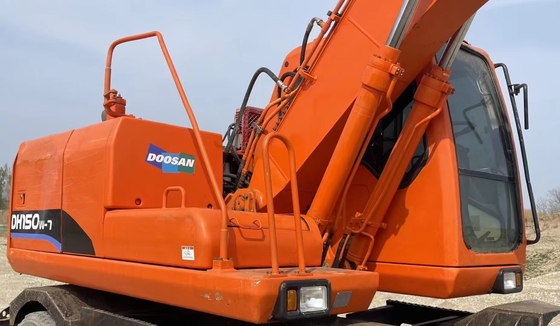

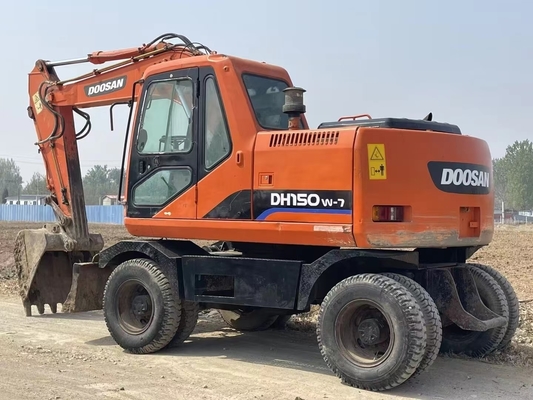

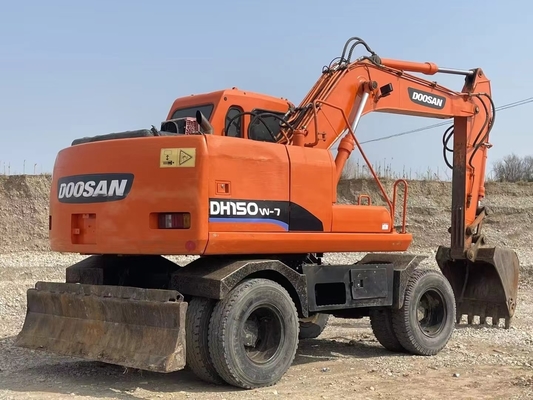

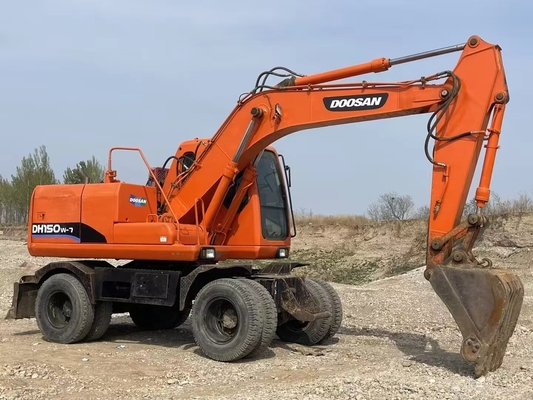

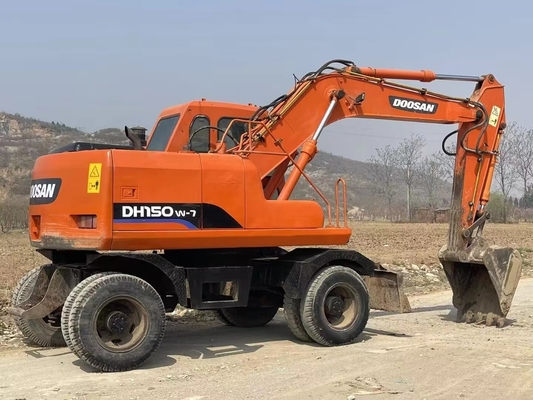

| DoosanH150W-7 Excavator |
| Specifications |
| Work Weight (kg) 12900 |
| Bucket capacity (m) 0.57 |
| Arm length (mm) 4300 |
| Bucket rod length (mm) 2100/2500 |
| korea Origin |
| Tonnage (tonnage) 15 |
| Manufacturer Import |
| Bucket backhoe |
| Power Traditional Power |
| performance |
| Driving Hydraulic Drive |
| Forward Speed (Km/h) 10-37 |
| Minimum turning radius (m) 77 |
| RPM 12.5 |
| Climbing ability (%) 70 |
| Excavation force of bucket (kN) 94.1 |
| Bucket bar excavation force (kN) 68.6 |
| Maximum traction force (kN) 62 |
| Engine |
| Engine Model DB58TIS |
| Rated power (kw / rpm) 96 / 2200 |
| Cylinder Number (Number) 6 |
| Cylinder diameter * stroke (mm) 102 * 118 |
| Cooling mode air cooling |
| Hydraulic system |
| Main Pump Type Variable Axial Pillar Pump |
| Maximum flow rate of main pump (l/min) 2*162 |
| Working Hydraulic Oil Circuit (Mpa) Standard 22.7/Boost 34.3 |
| Walking Hydraulic Circuit (Mpa) 34.3 |
| Rotary Hydraulic Circuit (Mpa) 26.5 |
| Boom cylinder-cylinder diameter * stroke (mm) 2-110 * 1030 |
| Bucket rod cylinder-bore x stroke (mm) 1-110 x 1085 |
| Bucket cylinder-cylinder diameter * stroke (mm) 1-95 * 885 |
| Oil capacity |
| Fuel tank (L) 280 |
| Hydraulic oil tank (L)95 |
| Body dimensions |
| Total length of transport (mm) 7250 |
| Total Transportation Width (mm) 2495 |
| Total Transportation Height (mm) 3125 (to the top of the cab) |
| Cab Height (mm) 3116 |
| Wheelbase (mm) 2800 |
| Wheelbase (mm) 1914 |
| Single tire width (mm) 582 |
| Tyre Outside Total Width (mm) 2496 |
| Counterweight ground clearance (mm) 1241 |
| Minimum ground clearance (mm) 350 |
| Back end radius of rotation (mm) 2210 |
| Scope of work |
| Maximum excavation radius (mm) 7530 |
| Maximum excavation radius (mm) 7295/7728 |
| Maximum excavation depth (mm) 4615 |
| Maximum vertical excavation depth (mm) 4086/4675 |
| Maximum excavation height (mm) 8015 |
| Maximum unloading height (mm) 5630 |
| Minimum radius of rotation (mm) 2210 |
|
|
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
