| Price: | $18,000.00/sets >=1 sets |

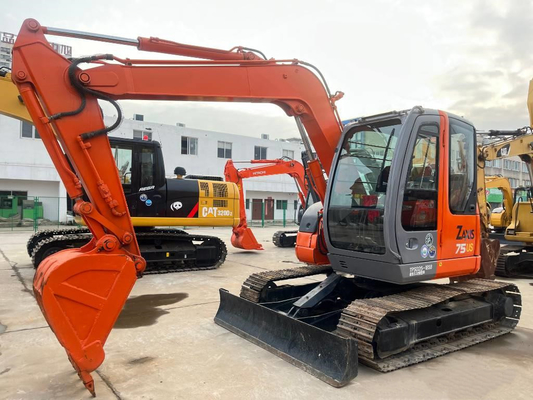

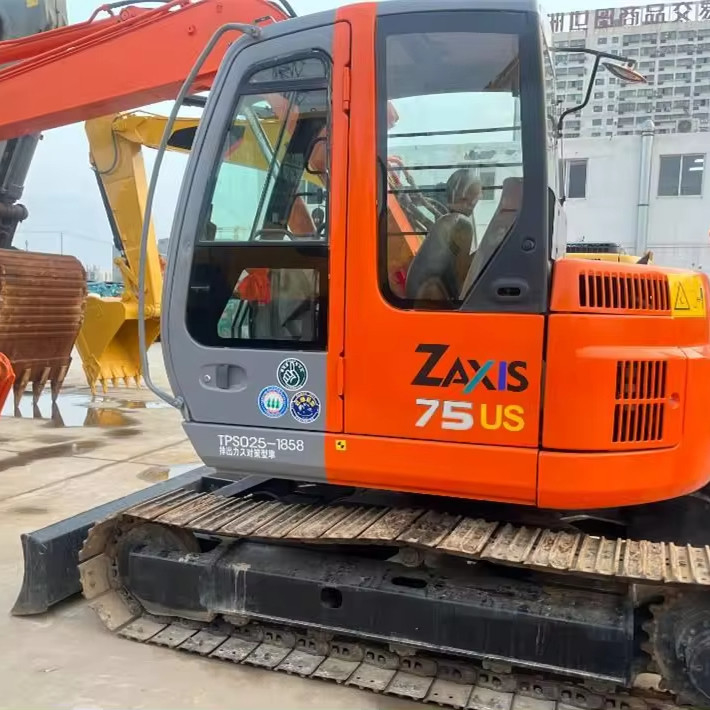

| Hitachi ZX75US Excavator Parameter Configuration |
| specifications |
| Working weight of the whole machine (kg) 7100 |
| Bucket capacity (m ³) 0.28/0.13/0.33 |
| Tonnage (ton) 7 |
| Bucket Backhoe |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Ground specific voltage (Kpa) 30 |
| Walking speed (km/h) 5 |
| dynamic system |
| Engine model Isuzu CC-4JG1 |
| Rated power (kW/rpm) 40.3/2100 |
| Displacement (L) 3.1 |
| Oil capacity |
| Fuel tank (L) 120 |
| Hydraulic system (L) 90 |
| Engine oil change quantity (L) 12 |
| Cooling liquid (L) 9.2 |
| Main body size |
| Total length of transportation (mm) 5870 |
| Total transportation width (mm) 2320 |
| Total transportation height (mm) 2690 |
| Full height of cab (mm) 2690 |
| Ground clearance of counterweight (mm) 760 |
| Track grounding length (mm) 2290 |
| Track shoe width (mm) 450 |
| Total width of track (mm) 2320 |
| Track gauge (mm) 1870 |
| Minimum ground clearance (mm) 360 |
| Rear end turning radius (mm) 1210 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 6260 |
| Maximum excavation depth (mm) 4110 |
| Maximum excavation height (mm) 7210 |
| Maximum unloading height (mm) 5210 |
| Maximum vertical excavation depth (mm) 3670 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
