| Price: | $52,000.00/sets >=1 sets |

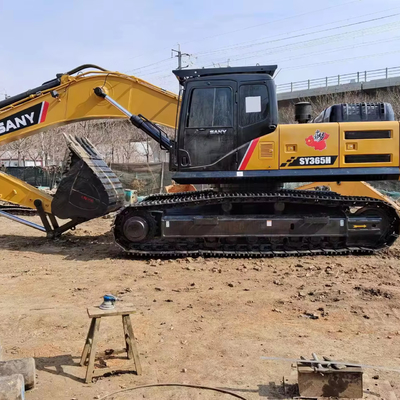

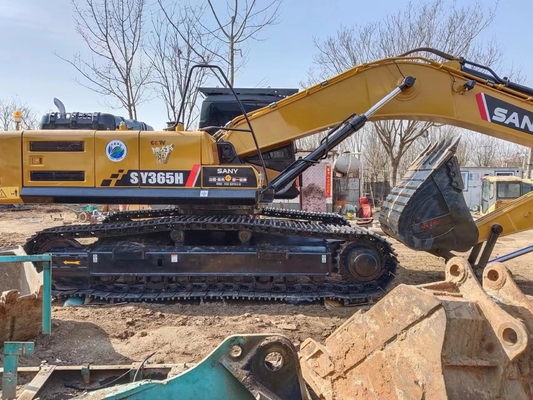

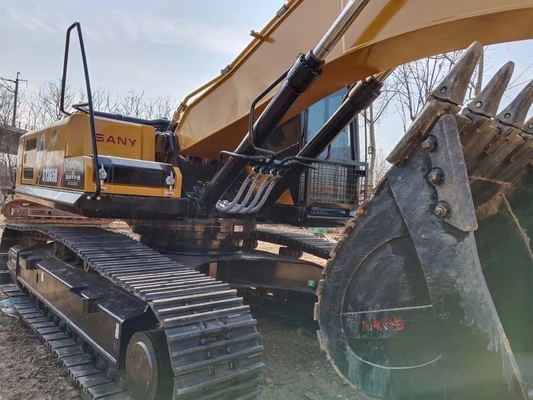

| Sany Heavy Industry SY365H excavator |
| specifications |
| Power Traditional Power |
| Domestic production by manufacturers |
| Bucket Backhoe |
| Tonnage (ton) 36 |
| Working weight of the whole machine (kg) 36000 |
| Bucket capacity (m ³) 1.6-2.32 |
| performance |
| Rotating speed (rpm) 9.5 |
| Walking speed (km/h) 5.5/3.5 |
| Climbing ability (%) 70% (35 °) |
| Ground specific voltage (Kpa) 65 |
| Bucket excavation force (kN) 235 |
| Dipper arm excavation force (kN) 180 |

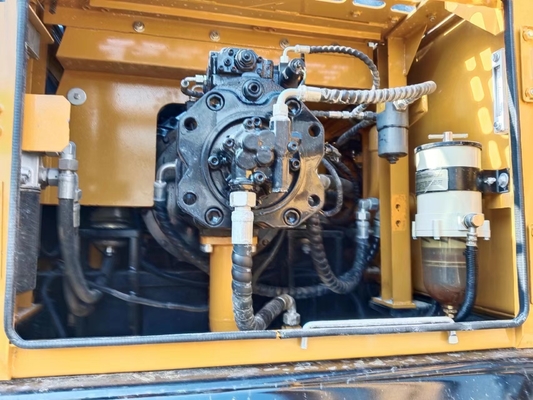

| dynamic system |
| Engine model GH-6HK1XKSC |
| Rated power (kW/rpm) 212/2000 |
| Maximum torque (N.m) 1080/1500 |
| Displacement (L) 7.79 |
| Cooling method: water cooling |
| Oil capacity |
| Fuel tank (L) 690 |
| Hydraulic oil tank (L) 380 |
| Engine oil change quantity (L) 36 |
| Main body size |
| Total length of transportation (mm) 11530 |
| Total transportation width (mm) 3190 |
| Total transportation height (mm) 3545 |
| Full height of cab (mm) 3320 |
| Boarding width (mm) 3150 |
| Track grounding length (mm) 4140 |
| Total length of track (mm) 5065 |
| Track shoe width (mm) 600 |
| Track gauge (mm) 2590 |
| Minimum ground clearance (mm) 550 |
| Minimum turning radius of the front working device (mm) 4495 |
| Rear end turning radius (mm) 3560 |
| Maximum height at minimum turning radius (mm) 8600 |
| Number of carrier sprockets (one side) (2 pieces) |
| Number of track shoes (one side) (pieces) 49 |
| Number of supporting wheels (one side) 9 |
| Scope of work |
| Maximum excavation radius (mm) 10780 |
| Maximum excavation depth (mm) 7050 |
| Maximum excavation height (mm) 9890 |
| Maximum unloading height (mm) 6920 |
| Maximum vertical excavation depth (mm) 3970 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
