| Price: | $49,000.00/sets >=1 sets |

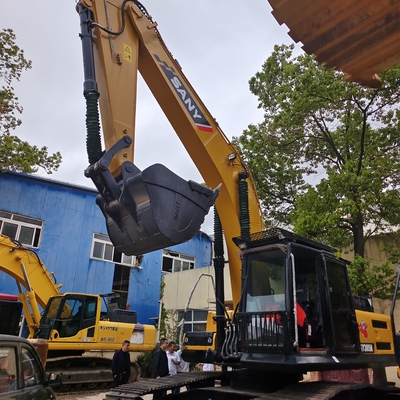

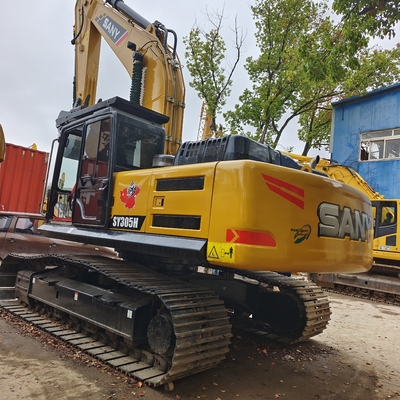

| Sany SY305H excavator |
| specifications |
| Power Traditional Power |
| Domestic production by manufacturers |
| Bucket Backhoe |
| Tonnage (ton) 30 |
| Working weight of the whole machine (kg) 31500 |
| Bucket capacity (m ³) 1.65~2.0 (1.65) |
| performance |
| Rotating speed (rpm) 9.0 |
| Walking speed (km/h) 5.4/3.2 |
| Climbing ability (%) 70% (35 °) |
| Ground specific voltage (Kpa) 62.3 |
| Bucket excavation force (kN) 204 |
| Dipper arm excavation force (kN) 153 |
| dynamic system |
| Engine model Isuzu GH-6HK1 |
| Rated power (kW/rpm) 212/2000 |
| Maximum torque (N.m) 1080/1500 |
| Displacement (L) 7.79 |
| Number of cylinders (6) |
| Cooling method: water cooling |
| Oil capacity |
| Fuel tank (L) 540 |
| Hydraulic oil tank (L) 380 |
| Engine oil change quantity (L) 2 * 4.0 |
| Cooling liquid (L) 35 |
| Main body size |
| Total length of transportation (mm) 10667 |
| Total transportation width (mm) 3190 |
| Total transportation height (mm) 3470 |
| Full height of cab (mm) 3280 |
| Boarding width (mm) 3175 |
| Track grounding length (mm) 3916 |
| Total length of track (mm) 4840 |
| Track shoe width (mm) 600 |
| Track gauge (mm) 2590 |
| Minimum ground clearance (mm) 550 |
| Minimum turning radius of the front working device (mm) 4000 |
| Maximum height at minimum turning radius (mm) 8405 |
| Rear end turning radius (mm) 3315 |
| Number of supporting wheels (one side) 8 |
| Number of carrier sprockets (one side) (2 pieces) |
| Number of track shoes (one side) (pieces) 47 |
| Scope of work |
| Maximum excavation radius (mm) 10870 |
| Maximum excavation depth (mm) 6815 |
| Maximum excavation height (mm) 10497 |
| Maximum unloading height (mm) 7359 |
| Maximum vertical excavation depth (mm) 6170 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
