| Price: | $17,000.00/sets >=1 sets |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine

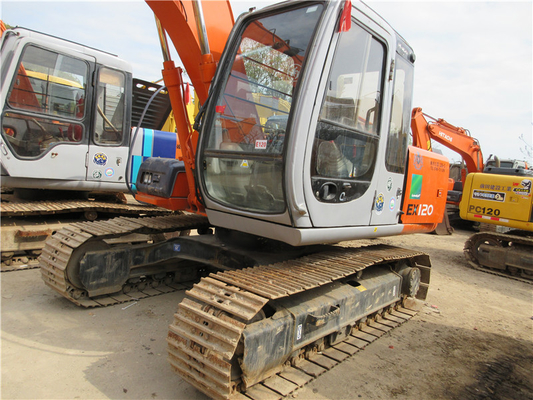

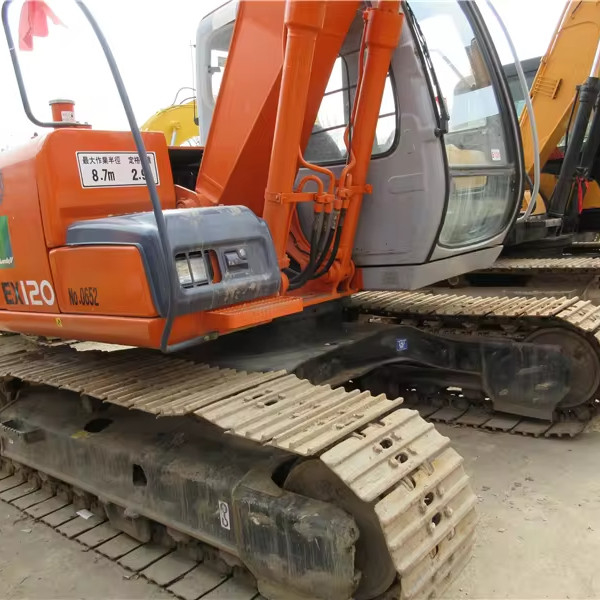

| Hitachi ZX120-3 Excavator Parameter Configuration |
| specifications |
| Working weight of the whole machine (kg) 12100 |
| Bucket capacity (m ³) zero point five nine |
| Tonnage (ton) 12 |
| Power Traditional Power |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Walking speed (km/h) 5.5 |
| dynamic system |
| Engine model Isuzu AJ-4JJ1X |
| Rated power (kW/rpm) 93/1800 |
| Displacement (L) 3 |
| Main body size |
| Total length of transportation (mm) 7660 |
| Total transportation width (mm) 2490 |
| Total transportation height (mm) 2740 |
| Track grounding length (mm) 2880 |
| Track shoe width (mm) 500 |
| Minimum ground clearance (mm) 440 |
| Rear end turning radius (mm) 2130 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 7830 |
| Maximum excavation depth (mm) 5570 |
| Maximum unloading height (mm) 5690 |
| Maximum vertical excavation depth (mm) 4270 |
|
|
