| Price: | $45,000.00/sets >=1 sets |
| Name:ShangHai Long shou Machinery Co,Ltd |
|
|
|
|

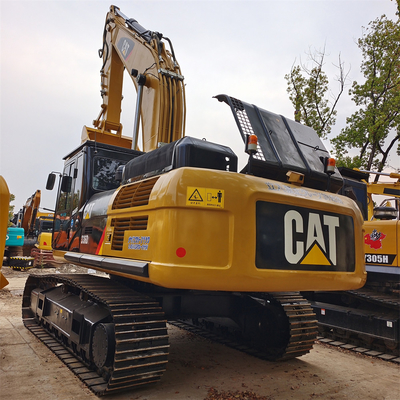

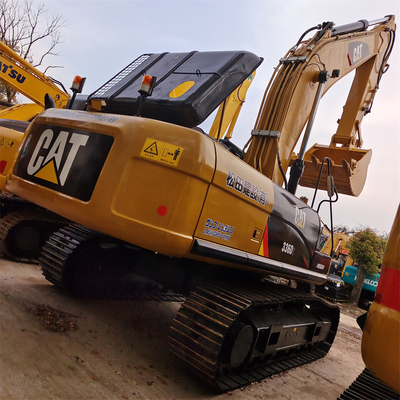

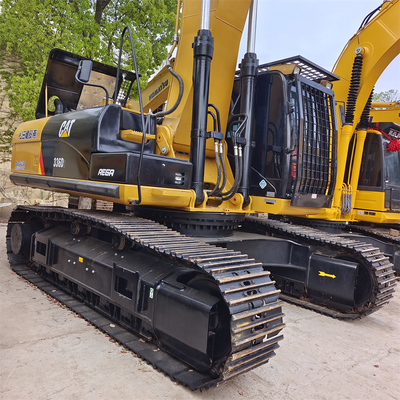

| Parameter configuration of Caterpillar 336D hydraulic excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Working weight of the whole machine (kg) 33750 |
| Bucket capacity (m ³) one point four |
| Boom length (mm) 6500 |
| Stick length (mm) 3200 |
| Origin Japan/Xuzhou |
| Tonnage (ton) 36 |
| Bucket Backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| performance |
| Rotation speed (rpm) 10 |
| Walking speed (km/h) March 5th |
| Climbing ability (%) 70/35 ° |
| Bucket excavation force (kN) 222 |
| Dipper arm excavation force (kN) 146 |
| dynamic system |
| Engine model C9ACERT |
| Rated power (kW/rpm) 200/1900 |
| Displacement (L) 8.8 |
| Number of cylinders (6) |
| Cylinder diameter x stroke (mm) 110 x 127 |
| Cooling method: water cooling |

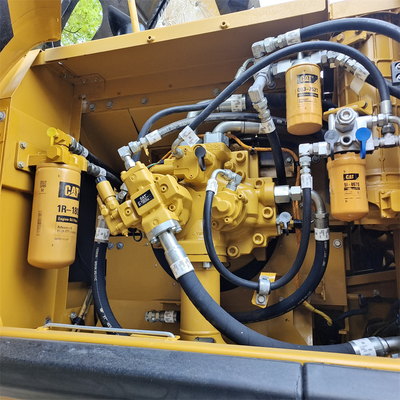

| hydraulic system |
| Maximum flow rate of main pump (l/min) 280 |
| Pilot oil circuit (MPa) 3.9 |
| Working hydraulic oil circuit (Mpa) 3.5 |
| Hydraulic circuit for walking (Mpa) 3.5 |
| Rotary hydraulic circuit (Mpa) 2.8 |
| Main overflow set pressure (Mpa) 3.5 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 150 x 1440 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 170 x 1738 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 150 x 1151 |
| Is the hydraulic crushing pipeline standard? No |
| Oil capacity |
| Fuel tank (L) 620 |
| Hydraulic oil tank (L) 175 |
| Hydraulic system (L) 410 (including oil tank) |
| Engine oil change quantity (L) 40 |
| Cooling liquid (L) 40 |
| Main body size |
| Total length of transportation (mm) 11150 |
| Total transportation width (mm) 3190 |
| Total transportation height (mm) 3340 |
| Full height of cab (mm) 3140 |
| Track grounding length (mm) 3610 |
| Total length of track (mm) 4590 |
| Track shoe width (mm) 600 |
| Total width of track (mm) 3190 |
| Track gauge (mm) 2590 |
| Minimum ground clearance (mm) 450 |
| Balance weight ground clearance (mm) 1220 |
| Rear end turning radius (mm) 3500 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 10920 |
| Maximum excavation depth (mm) 7390 |
| Maximum excavation height (mm) 10240 |
| Maximum unloading height (mm) 7200 |
| Maximum vertical excavation depth (mm) 5830 |
| Maximum effective excavation depth (mm) 7230 |
| Bulldozer width x height (mm) without bulldozer blade |
| Bulldozer lifting or pushing depth (mm) without bulldozer |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
