| Price: | $26,000.00 - $33,000.00/sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia

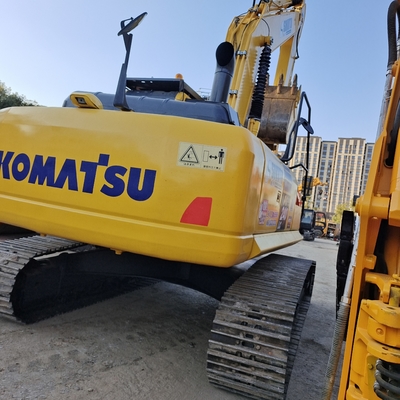

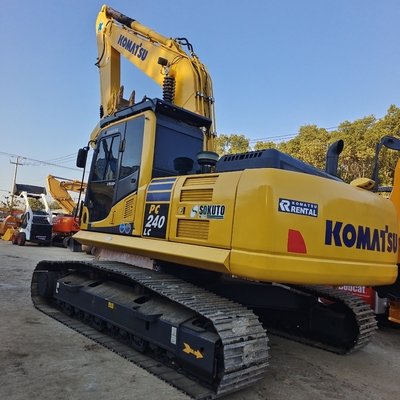

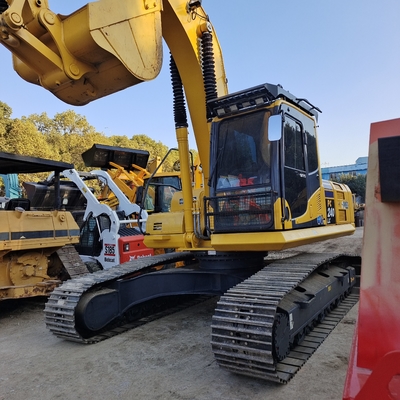

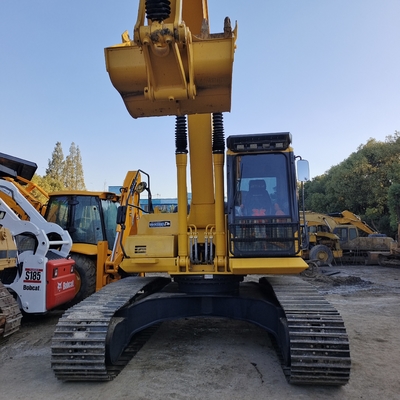

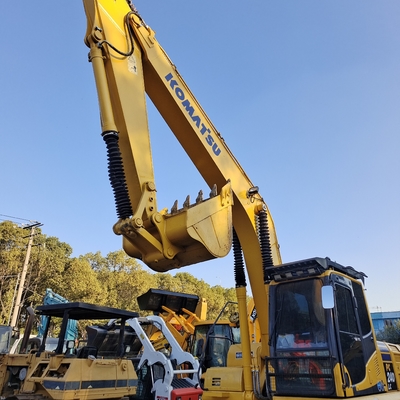

Komatsu PC240LC-8 Excavator
specifications
Working weight of the whole machine (kg) 25130
Bucket capacity (m ³) one point two
Boom length (mm) 5850
Stick length (mm) 3045
Tonnage (ton) 24
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional Power
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional Power
performance
Rotation speed (rpm) 11.7
Walking speed (km/h) 3.1/4.2/5.5
Climbing ability (%) 70/35 °
Ground specific voltage (Kpa) 41.7
Bucket excavation force (kN) 172
Dipper arm excavation force (kN) 129
dynamic system
Engine model Komatsu SAA6D107E-1
Rated power (kW/rpm) 125/2000
Displacement (L) 6.69
Number of cylinders (6)
Cylinder diameter x stroke (mm) 107 x 124
Cooling method: water cooling
Working forms include direct injection, turbocharging, and post cooling; Meets the 2006 EPA/Tier3 and EUIIIA level standards.
hydraulic system
Maximum flow rate of main pump (l/min) 439
Traveling hydraulic motor type axial piston motor × 2 (with parking brake)
Rotary hydraulic motor type axial piston motor × 1 (with rotary holding valve)
Hydraulic circuit for walking (Mpa) 37.3
Rotary hydraulic circuit (Mpa) 28.9
Control hydraulic circuit (Mpa) 3.2 Pilot oil circuit
Boom oil cylinder - number x cylinder diameter x stroke (mm) 130 x 1335 x 90
Stick oil cylinder - number x cylinder diameter x stroke (mm) 140 x 1635 x 100
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 130 x 1020 x 90
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L) 400
Hydraulic oil tank (L) 135
Engine oil change quantity (L) 23.1
Cooling liquid (L) 19.8
Main body size
Total length of transportation (mm) 9885
Total transportation width (mm) 3280
Total transportation height (mm) 3185
Full height of cab (mm) 3055
Balance weight ground clearance (mm) 1100
Track grounding length (mm) 3845
Total length of track (mm) 4640
Track shoe width (mm) 700
Total width of track (mm) 3280
Track gauge (mm) 2580
Minimum ground clearance (mm) 440
Rear end turning radius (mm) 2905
Scope of work
Maximum excavation radius (mm) 10180
Maximum excavation radius of the parking surface (mm) 10020
Maximum excavation depth (mm) 6920
Maximum excavation height (mm) 10000
Maximum unloading height (mm) 7035
Maximum vertical excavation depth (mm) 6010
Maximum effective excavation depth (mm) 6700
Bulldozer lifting or pushing depth (mm) without bulldozer
|
|
