| Price: | $12,000.00/sets >=1 sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia
Whats app/Mobile phone:+8618701954897
We chat number:18701954897

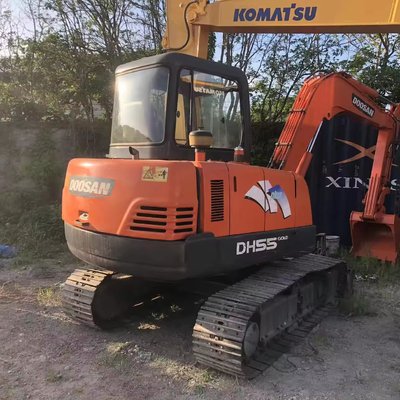

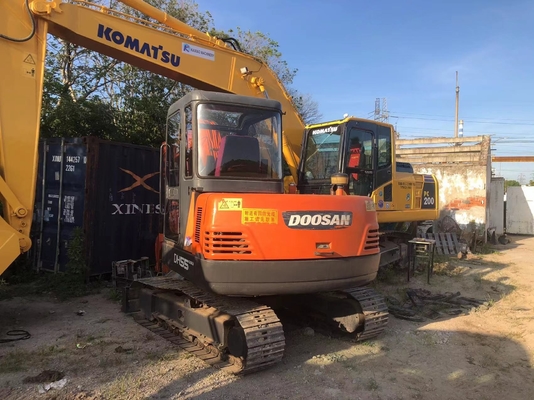

specificationsTonnage (ton) 5
Working weight of the whole machine (kg) 5500
Bucket capacity (m ³) 0.18-0.21

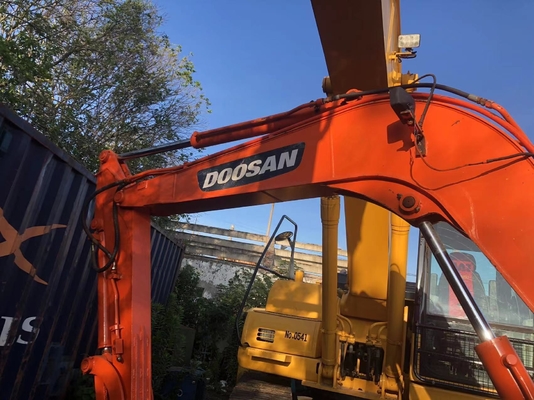

Boom length (mm) 3000
Stick length (mm) 1600
Power Traditional Power
Manufacturer joint venture/import

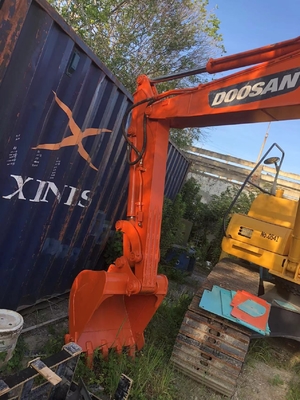

Bucket Backhoe
dynamic system

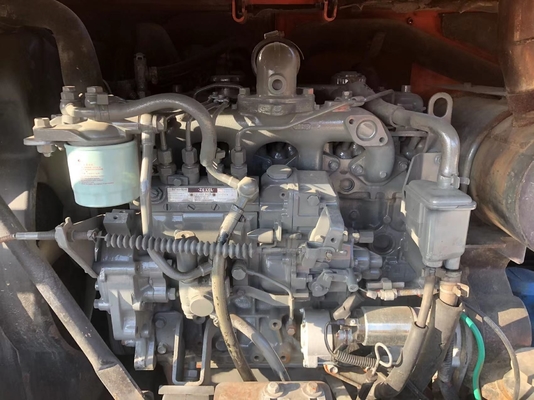

Engine model 4TNV94L
Rated power (kW/rpm) 36.2/2100
Cylinder diameter x stroke (mm) 94 * 110
Number of cylinders 4
performance
Rotation speed (rpm) 9.2
Bucket excavation force (kN) 40.2
Dipper arm excavation force (kN) 24.5
Walking speed (km/h) 4.3/2.4
hydraulic system
Maximum flow rate of main pump (l/min) 2 * 57.8

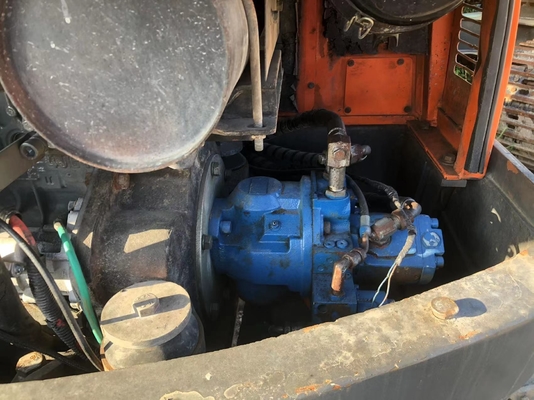

Main pump type variable piston pump
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 85 X 55 X 600
Stick oil cylinder - number x cylinder diameter x stroke (mm) 85 X 55 X 883
Boom oil cylinder - number x cylinder diameter x stroke (mm) 110 X 60 X 719
Oil capacity
Fuel tank (L) 115
Hydraulic oil tank (L) 62
Main body size
Total length of transportation (mm) 5850
Total transportation height (mm) 1930
Ground clearance of counterweight (mm) 685
Minimum ground clearance (mm) 360
Rear end turning radius (mm) 1650
Boarding width (mm) 1860
Total length of track (mm) 2540
Track shoe width (mm) 380
Number of carrier rollers (one side) (piece) 1
Number of supporting wheels (one side) 5
Number of track shoes (one side) (pieces) 40
Scope of work
Maximum excavation radius (mm) 6135
Maximum excavation depth (mm) 3800
Maximum excavation height (mm) 5795
Maximum unloading height (mm) 4110
Maximum vertical excavation depth (mm) 3125
Maximum excavation radius of the parking surface (mm) 6000
Maximum effective excavation depth (mm) 3800
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
