| Price: | $20,000.00/sets >=1 sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia
Whats app/Mobile phone:+8618701954897
We chat number:18701954897

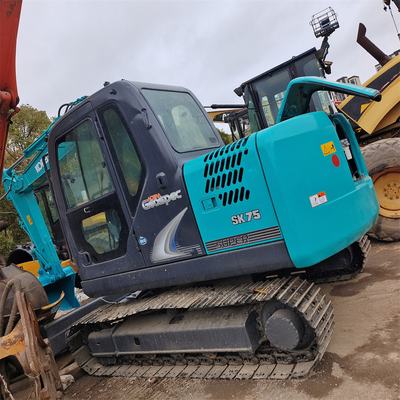

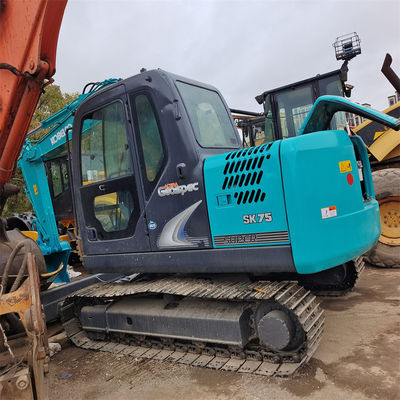

Kobelco SK75 excavator
specifications
Working weight of the whole machine (kg) 7000 (approximately)
Origin Chengdu
Tonnage (ton) 7
Manufacturer joint venture/import
Power Traditional Power
Bucket Backhoe
Manufacturer joint venture/import
Power Traditional Power
performance
Walking speed (km/h) 2.8/5.3

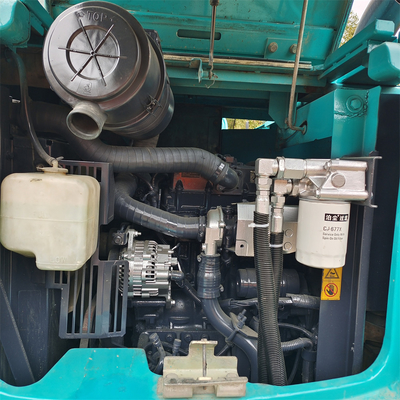

dynamic system
Engine model Isuzu ISUZU AU4LE2X
Rated power (kW/rpm) 41/2200
Displacement (L) 2.179
Number of cylinders 4
Cylinder diameter x stroke (mm) 85 x 96
Cooling method: water cooling
hydraulic system
Main pump type: dual variable displacement axial piston pump+pilot gear pump
Rotary hydraulic motor type axial piston motor
Working hydraulic oil circuit (Mpa) 29.4
Hydraulic circuit for walking (Mpa) 27.5
Rotary hydraulic circuit (Mpa) 14.5
Control hydraulic circuit (Mpa) 3.5
Oil capacity
Fuel tank (L) 120
Hydraulic oil tank (L) 72
Hydraulic system (L) 120
Engine oil change quantity (L) 11
Cooling liquid (L) 8.5
Main body size
Total transportation height (mm) 2630
Full height of cab (mm) 2630
Minimum turning radius of the front working device (mm) 1760
Rear end turning radius (mm) 1290
Scope of work
Maximum excavation radius (mm) 6460
Maximum excavation radius of the parking surface (mm) 6300
Maximum excavation depth (mm) 4160
Maximum excavation height (mm) 7390
Maximum unloading height (mm) 5330
Maximum vertical excavation depth (mm) 3450
Maximum effective excavation depth (mm) 3800
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
