| MOQ: | 2 sets |
| Price: | $20,000.00/sets >=2 sets |
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia
Whats app/Mobile phone:+8618701954897

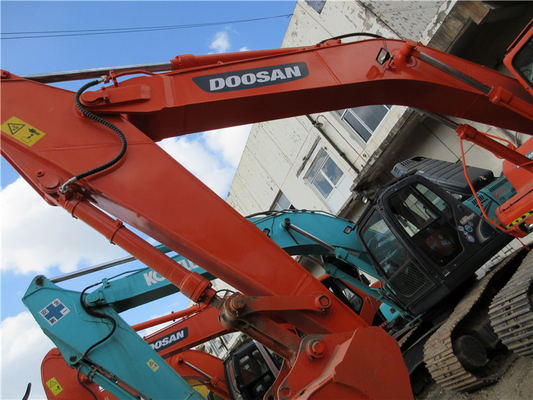

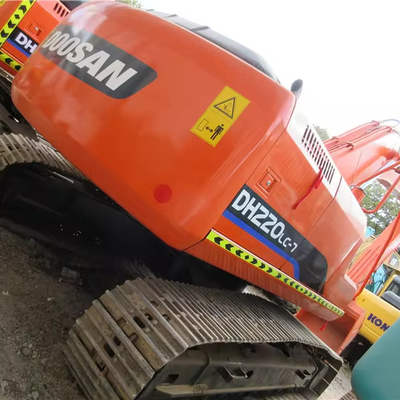

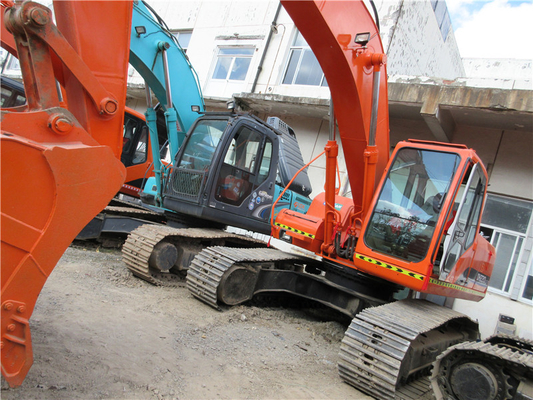

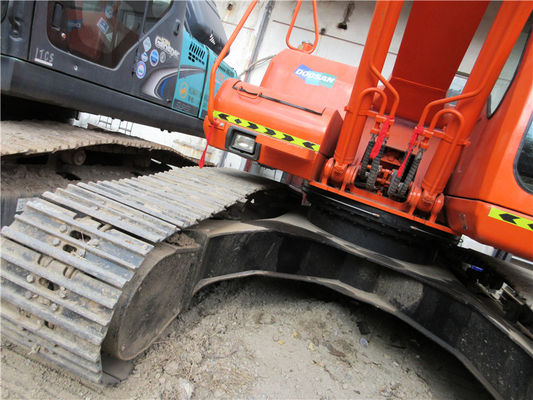

Parameter Configuration of DH225LC-7 Excavator
specifications
Power Traditional Power
Manufacturer joint venture/import
Bucket Backhoe
Tonnage (ton) 22
Working weight of the whole machine (kg) 21500
Bucket capacity (m ³) 0.5-1.28
Boom length (mm) 5700
Stick length (mm) 2900
performance
Rotation speed (rpm) 12.4
Walking speed (km/h) 3.1-4.5
Bucket excavation force (kN) 136.2/144.1
Dipper arm excavation force (kN) 97/102.9
dynamic system
Engine model: Doosan DB58TIS
Rated power (kW/rpm) 110/1950
Displacement (L) 6.3
Cooling method: air cooling
hydraulic system

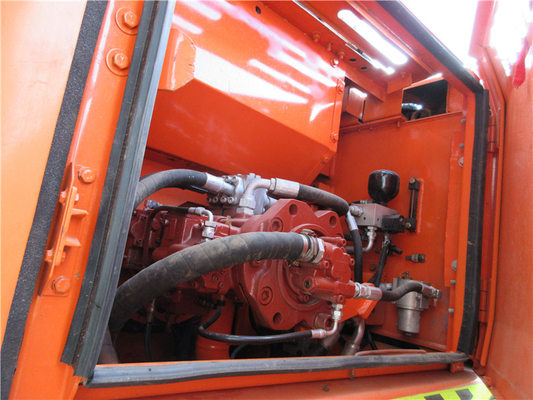

Main pump type variable axial piston pump
Maximum flow rate of main pump (l/min) 2 × 215
Main body size
Total length of transportation (mm) 9510
Total transportation width (mm) 2990
Total transportation height (mm) 3030
Full height of cab (mm) 3000

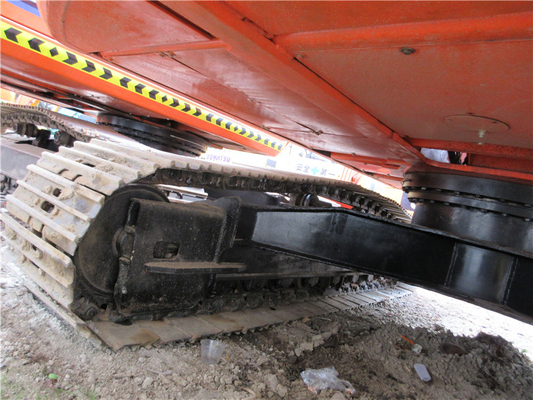

Track grounding length (mm) 3645
Total length of track (mm) 4440
Track shoe width (mm) 600
Total width of track (mm) 2990
Track gauge (mm) 2390
Minimum ground clearance (mm) 480
Ground clearance of counterweight (mm) 1105
Rear end turning radius (mm) 2750
Scope of work
Maximum excavation radius (mm) 9910
Maximum excavation radius of the parking surface (mm) 9735
Maximum excavation depth (mm) 6630
Maximum excavation height (mm) 9660
Maximum unloading height (mm) 6810
Maximum vertical excavation depth (mm) 6045
Maximum effective excavation depth (mm) 6445
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
