| Price: | $15,000.00/sets >=1 sets |

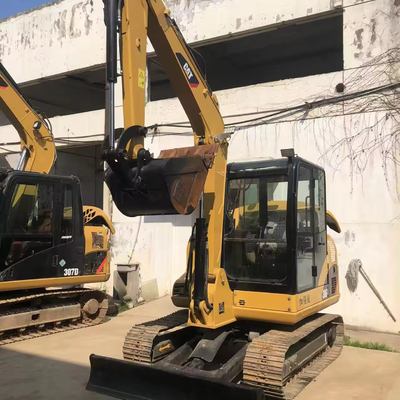

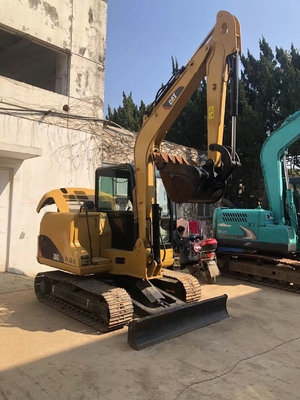

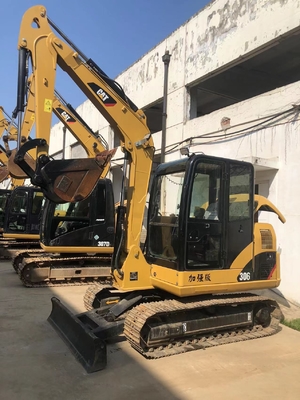

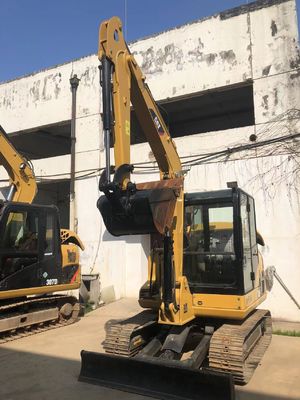

Parameter Configuration of Caterpillar 306D Hydraulic Excavator
Manufacturer joint venture/import
Bucket Backhoe
Tonnage (ton) 6
Working weight of the whole machine (kg) 5775
performance
Rotating speed (rpm) 8.8 RPM
Rotating torque (Nm) 12.3 kN · m
Walking speed (km/h) 4.8 km/h
Bucket excavation force (kN) 38.6
Dipper arm excavation force (kN) 25.5
Maximum traction force (kN) 48.2 kN

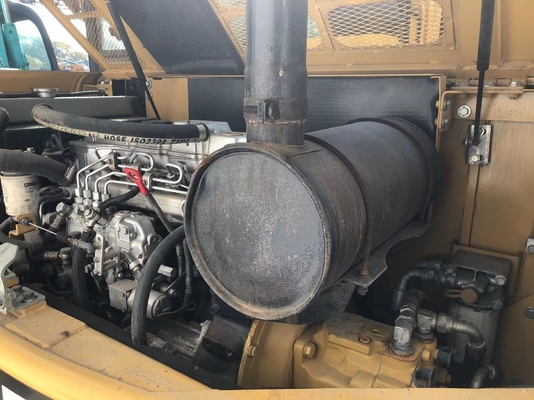

dynamic system
Engine model 4M40
Rated power (kW/rpm) 41
Cylinder diameter x stroke (mm) 95 x100
hydraulic system
Maximum flow rate of main pump (l/min) 152
Main overflow set pressure (Mpa) 24500
Oil capacity
Fuel tank (L) 135 L
Hydraulic oil tank (L) 57 L
Hydraulic system (L) 85 L
Engine oil change quantity (L) 11.2 L
Main body size
Track shoe width (mm) 400 mm
Name:ShangHai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :Olivia
Whats app/Mobile phone:+8618701954897
We chat number:18701954897
|
|
