| MOQ: | 3000 sets |
| Price: | $150,000.00 - $180,000.00/sets |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
| Name:ShangHai Long shou Machinery Co,Ltd |
|
|

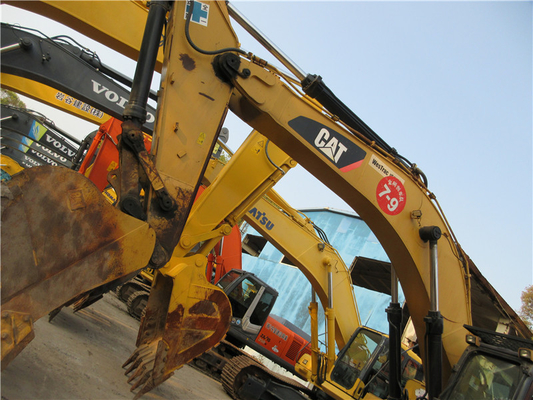

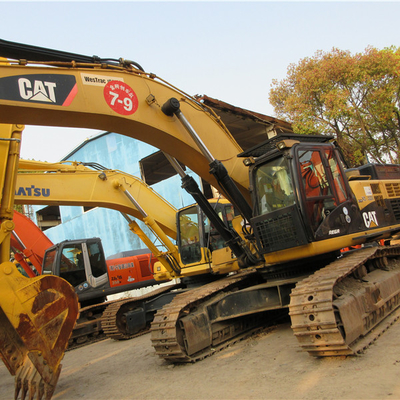

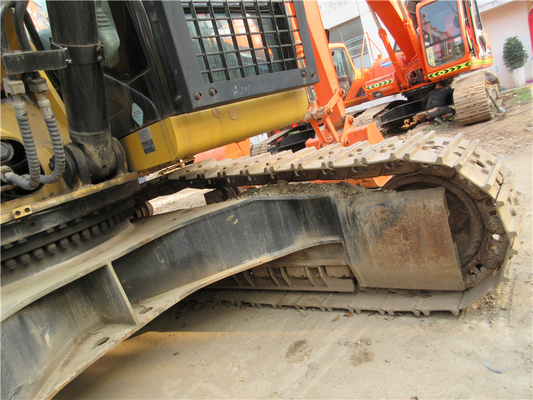

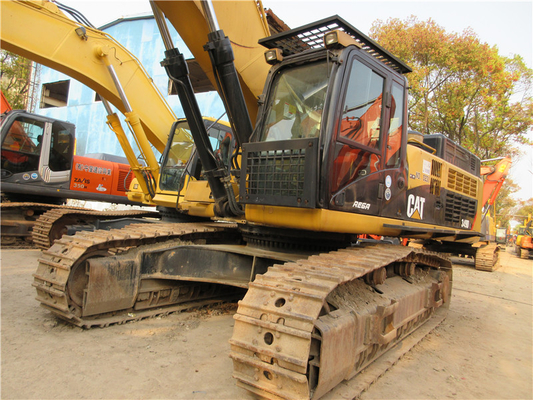

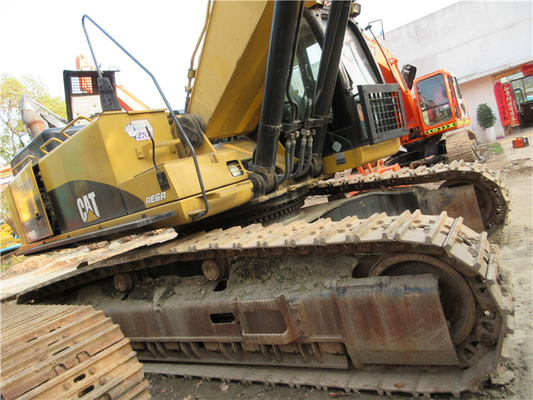

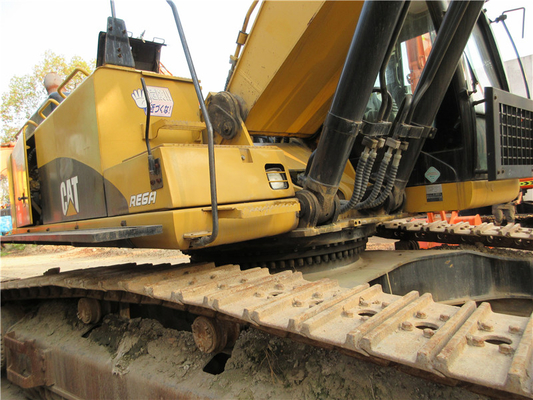

| Parameter Configuration of Caterpillar 349D Hydraulic Excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Tonnage (ton) 49 |
| Working weight of the whole machine (kg) 46285 |
| Bucket capacity (m ³) 1.8-3.11 |
| Boom length (mm) 7400/6900/6550 |
| Stick length (mm) 4300/3900/3350 |
| Origin Xuzhou, Jiangsu |
| performance |
| Rotation speed (rpm) 8.7 |
| Walking speed (km/h) 4.5 |
| dynamic system |
| Engine model Caterpillar Cat C13 ACERT |
| Rated power (kW/rpm) 283 |
| Displacement (L) 12.5 |
| Cylinder diameter x stroke (mm) 130 x 157 |
| Cooling method: water cooling |
| hydraulic system |
| Maximum flow rate of main pump (l/min) 734 |
| Pilot pump flow rate (L/min) 43 |
| Pilot oil circuit (MPa) 4.11 |
| Working hydraulic oil circuit (Mpa) 35 |
| Hydraulic circuit for walking (Mpa) 35 |
| Rotary hydraulic circuit (Mpa) 31.4 |
| Main overflow set pressure (Mpa) 35 |
| Boom oil cylinder - number x cylinder diameter x stroke (mm) 1-160 x 1575 |
| Stick oil cylinder - number x cylinder diameter x stroke (mm) 1-190 x 1778 |
| Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1-160 x 1356 |
| Oil capacity |
| Fuel tank (L) 705 |
| Hydraulic oil tank (L) 243 |
| Hydraulic system (L) 570 |
| Engine oil change quantity (L) 42 |
| Cooling liquid (L) 35.5 |
| Main body size |
| Total length of transportation (mm) 12450 |
| Total transportation width (mm) 3640 |
| Total transportation height (mm) 3680 |
| Full height of cab (mm) 3210 |
| Total length of track (mm) 5070 |
| Track shoe width (mm) 750 |
| Total width of track (mm) 3640 |
| Track gauge (mm) 2740 |
| Minimum ground clearance (mm) 510 |
| Balance weight ground clearance (mm) 1320 |
| Rear end turning radius (mm) 3770 |
| Scope of work |
| Maximum excavation radius of the parking surface (mm) 12940 |
| Maximum excavation depth (mm) 8920 |
| Maximum unloading height (mm) 7870 |
| Maximum vertical excavation depth (mm) 5860 |
| Maximum effective excavation depth (mm) 8790 |
|
|
