| MOQ: | 3000 sets |
| Price: | $120,000.00 - $130,000.00/sets |
| Name:ShangHai Long shou Machinery Co,Ltd |

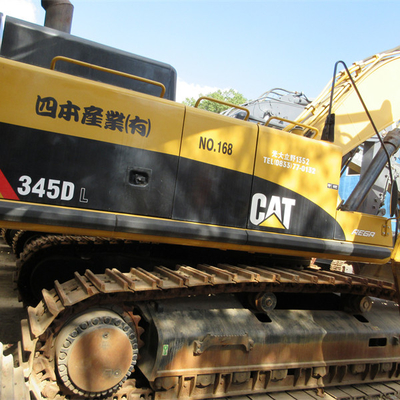

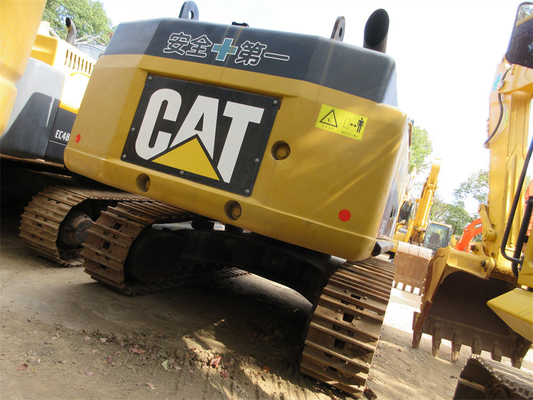

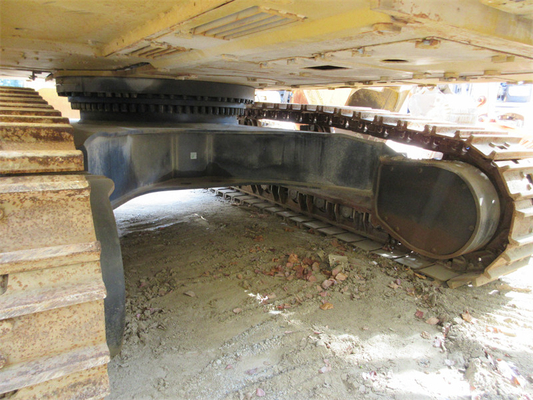

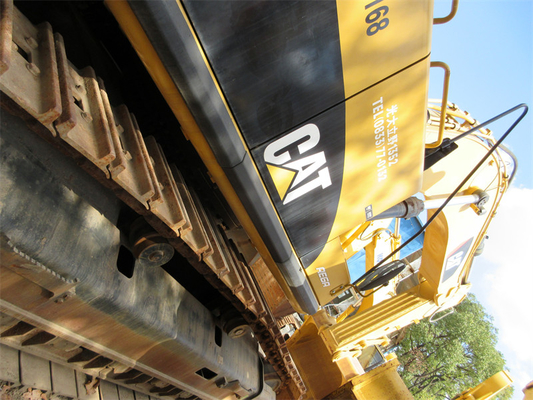

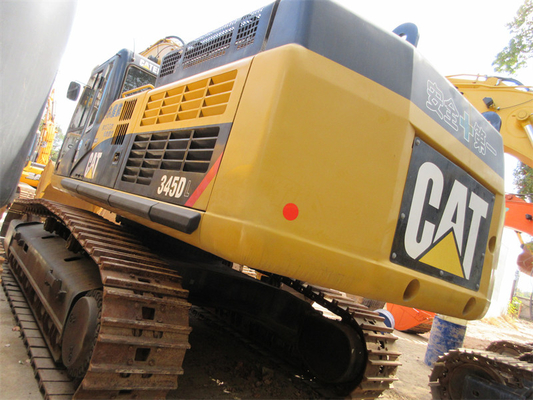

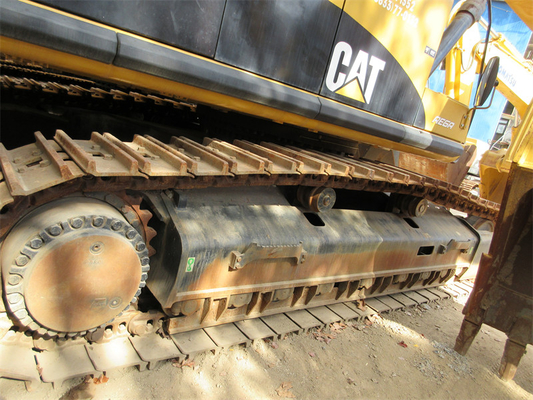

| Caterpillar 345D Excavator Parameter Configuration |
| • Specifications |
| Working weight of the whole machine (kg) 45375 |
| Bucket capacity (m) ³) 1.8-3.5 |
| Boom length (mm) 4300 |
| • Origin Japan |
| Tonnage (ton) 45 |
| Power Traditional Power |
| • Bucket backhoe |
| Manufacturer joint venture/import |
| Power Traditional Power |
| Performance |
| Rotating speed (rpm) 8.7 |
| Walking speed (km/h) 2.8/4.5 |
| Climbing ability (%) 70/35 ° |
| Power system |
| Engine model Caterpillar CAT C13ACERT |
| Rated power (kW/rpm) 283 |
| Displacement (L) 12.5 |
| Number of cylinders 6 |
| Hydraulic system |
| Maximum flow rate of main pump (l/min) 734 |
| • Oil capacity |
| Fuel tank (L) 705 |
| Hydraulic oil tank (L) 570 (including system) |
| Hydraulic system (L) 570 |
| Engine oil change quantity (L) 42 |
| Cooling liquid (L) 35.5 |
| Main body size |
| Total length of transportation (mm) 12450 |
| Total transportation height (mm) 3680 |
| Track shoe width (mm) 750 |
| • Scope of work |
| Maximum excavation radius of the parking surface (mm) 12940 |
| Maximum excavation depth (mm) 8920 |
| Maximum unloading height (mm) 7820 |
| Maximum vertical excavation depth (mm) 5860 |
|
|
