| MOQ: | 3000 sets |
| Price: | $23,000.00 - $30,000.00/sets |
| Name:ShangH |
ai Long shou Machinery Co,Ltd
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :olivia
Whats app/ Mobile phone:+8618701954897
We chat number:18701954897

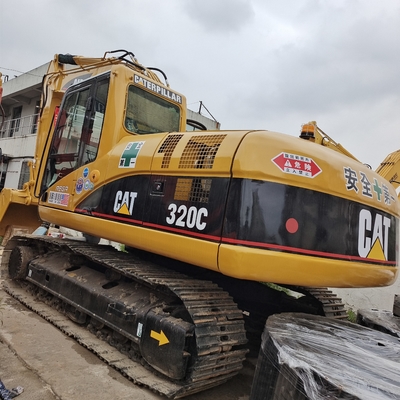

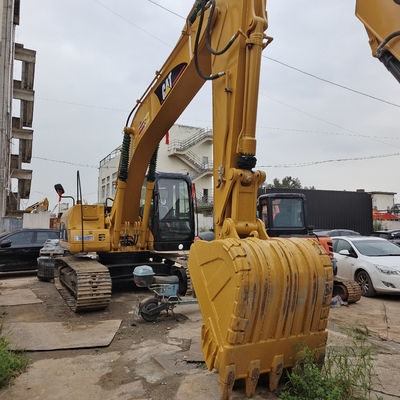

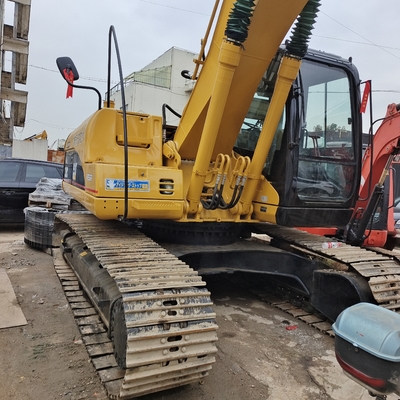

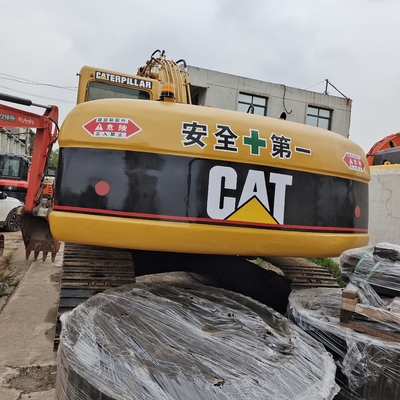

Parameter configuration of Caterpillar 320C excavator
specifications
Power Traditional Power
Manufacturer joint venture/import

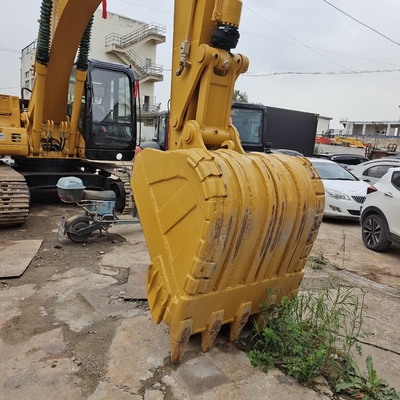

Bucket Backhoe
Tonnage (ton) 20
Working weight of the whole machine (kg) 21115
Bucket capacity (m ³) zero point eight
Boom length (mm) 5680
Stick length (mm) 2900
performance
Rotation speed (rpm) 11.5
Walking speed (km/h) 5.5
Ground specific voltage (Kpa) 48.02
Bucket excavation force (kN) 132
Dipper arm excavation force (kN) 99
dynamic system
Engine model Carter CAT 3066 ATAAC
Rated power (kW/rpm) 110/1800
Displacement (L) 6.4
Cylinder diameter x stroke (mm) 102 x 130
Cooling method: water cooling
hydraulic system
Maximum flow rate of main pump (l/min) 205
Pilot oil circuit (MPa) 4.12
Working hydraulic oil circuit (Mpa) 34.3
Hydraulic circuit for walking (Mpa) 34.4
Rotary hydraulic circuit (Mpa) 26
Boom oil cylinder - number x cylinder diameter x stroke (mm) 2-120 x 1260
Stick oil cylinder - number x cylinder diameter x stroke (mm) 1-140 x 1430
Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1-120 x 1030
Oil capacity
Fuel tank (L) 320
Hydraulic oil tank (L) 120
Hydraulic system (L) 200
Engine oil change quantity (L) 30
Cooling liquid (L) 24
Main body size
Total length of transportation (mm) 9390
Total transportation width (mm) 2800
Total transportation height (mm) 3050
Full height of cab (mm) 3050
Track grounding length (mm) 3260
Total length of track (mm) 4070
Track shoe width (mm) 600
Total width of track (mm) 2800
Track gauge (mm) 2200
Minimum ground clearance (mm) 460
Rear end turning radius (mm) 2770
Scope of work
Maximum excavation radius of the parking surface (mm) 9710
Maximum excavation depth (mm) 6550
Maximum excavation height (mm) 9440
Maximum unloading height (mm) 6770
Maximum vertical excavation depth (mm) 5440
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
