| MOQ: | 3000 sets |
| Price: | $15,000.00 - $18,000.00/sets |
|
|
|
|
|
|

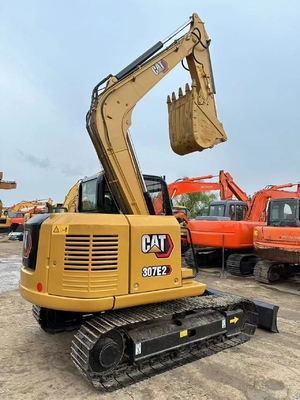

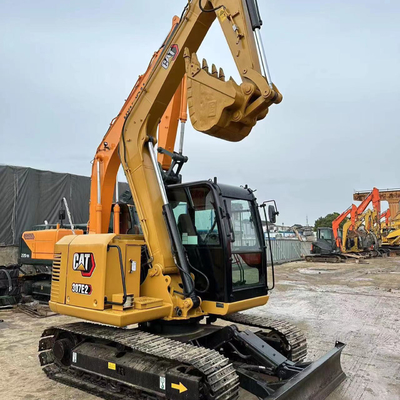

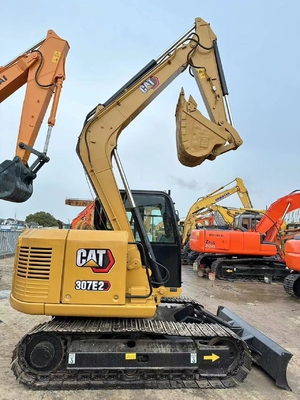

| Parameter Configuration of Caterpillar 307E Hydraulic Excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Tonnage (ton) 7 |
| Working weight of the whole machine (kg) 6800 |
| Bucket capacity (m ³) zero point three one |
| Origin: Wujiang, Jiangsu |
| performance |
| Rotation speed (rpm) 10.8 |
| Walking speed (km/h) 5.1/3.2 |
| Climbing ability (%) 30 degrees |
| Bucket excavation force (kN) 50.6 |
| Dipper arm excavation force (kN) 37.1 |
| Maximum traction force (kN) 56.9 |
| dynamic system |

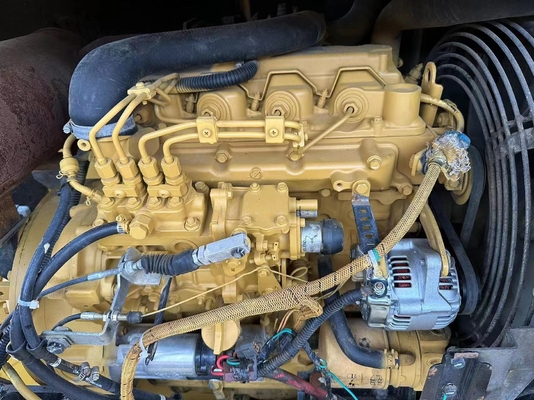

| Engine model Caterpillar C2.6 DI Turbo |
| Rated power (kW/rpm) 43 |
| Displacement (L) 2.615 |
| Cylinder diameter x stroke (mm) 87 x 110 |
| Cooling method: water cooling |
| Work form: direct injection; Turbocharging; Meets EPA Tier 2 standards |
| hydraulic system |
| Working hydraulic oil circuit (Mpa) 28 |
| Hydraulic circuit for walking (Mpa) 28 |
| Rotary hydraulic circuit (Mpa) 24 |
| Oil capacity |
| Fuel tank (L) 125 |
| Hydraulic oil tank (L) 51 |
| Hydraulic system (L) 78 |
| Engine oil change quantity (L) 11 |
| Cooling liquid (L) 14 |
| Main body size |
| Total length of transportation (mm) 6070 |
| Total transportation width (mm) 2300 |
| Total transportation height (mm) 2630 |
| Full height of cab (mm) 2630 |
| Total length of track (mm) 2760 |
| Track shoe width (mm) 450 |
| Ground clearance of counterweight (mm) 775 |
| Minimum turning radius of the front working device (mm) 1690 |
| Rear end turning radius (mm) 1820 |
| Scope of work |
| Maximum excavation radius (mm) 6300 |
| Maximum excavation radius of the parking surface (mm) 6160 |
| Maximum excavation depth (mm) 4070 |
| Maximum excavation height (mm) 7274 |
| Maximum unloading height (mm) 5190 |
| Bulldozer lifting or pushing depth (mm) lifting 445 |
|
|
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
