| MOQ: | 3000 sets |
| Price: | $12,000.00 - $17,000.00/sets |
|
|
|
|

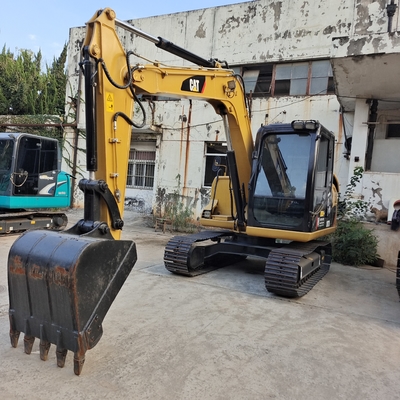

| Parameter Configuration of Caterpillar 307D Hydraulic Excavator |
| specifications |
| Power Traditional Power |
| Manufacturer joint venture/import |
| Bucket Backhoe |
| Tonnage (ton) 7 |
| Working weight of the whole machine (kg) 7193 |
| Bucket capacity (m ³) zero point three one |
| Stick length (mm) 1670 |
| Origin Wujiang |
| performance |
| Rotation speed (rpm) 10 |
| Walking speed (km/h) 3.1/5.0 |
| Climbing ability (%) 70/35 ° |
| Bucket excavation force (kN) 50.6 |
| Dipper arm excavation force (kN) 37.1 |
| Maximum traction force (kN) 56.7 |
| dynamic system |
| Engine model Mitsubishi 4M40TL |
| Rated power (kW/rpm) 41.5/2200 |
| Displacement (L) 2.83 |
| Number of cylinders 4 |
| Cylinder diameter x stroke (mm) 95 x 100 |
| Cooling method: water cooling |
| The work format complies with the US EPA Inter Tier 4 emission requirements |
| hydraulic system |
| Maximum flow rate of main pump (l/min) 128 |
| Working hydraulic oil circuit (Mpa) 28 |
| Hydraulic circuit for walking (Mpa) 32 |
| Rotary hydraulic circuit (Mpa) 24 |
| Is the hydraulic crushing pipeline standard? No |
| Oil capacity |
| Fuel tank (L) 135 |
| Hydraulic oil tank (L) 80 |
| Hydraulic system (L) 94 (including oil tank) |
| Engine oil change quantity (L) 12.5 |
| Cooling liquid (L) 15.7 |
| Main body size |
| Total length of transportation (mm) 6070 |
| Total transportation width (mm) 2300 |
| Total transportation height (mm) 2630 |
| Full height of cab (mm) 2630 |
| Total length of track (mm) 2760 |
| Track shoe width (mm) 450 |
| Total width of track (mm) 2290 |
| Ground clearance of counterweight (mm) 760 |
| Minimum turning radius of the front working device (mm) 1670 |
| Rear end turning radius (mm) 1750 |
| Scope of work |
| Maximum excavation radius (mm) 6300 |
| Maximum excavation radius of the parking surface (mm) 6200 |
| Maximum excavation depth (mm) 4070 |
| Maximum excavation height (mm) 7240 |
| Maximum unloading height (mm) 5190 |
| Maximum vertical excavation depth (mm) 3640 |
| Bulldozer width x height (mm) Height 450 |
| Bulldozer lifting or pushing depth (mm) 380/360 |
|
|
| |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
