| MOQ: | 3000 sets |
| Price: | $26,000.00 - $32,000.00/sets |
| Name:ShangHai Long shou Machinery Co,Ltd |
|
|

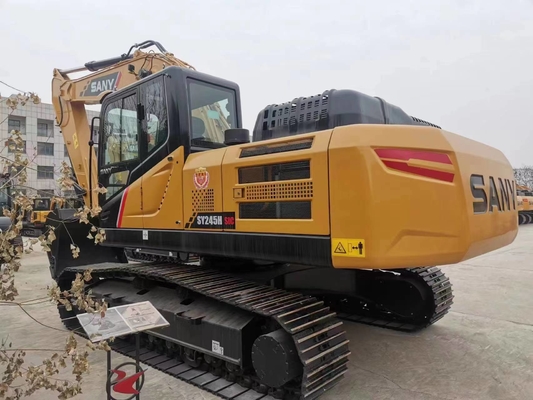

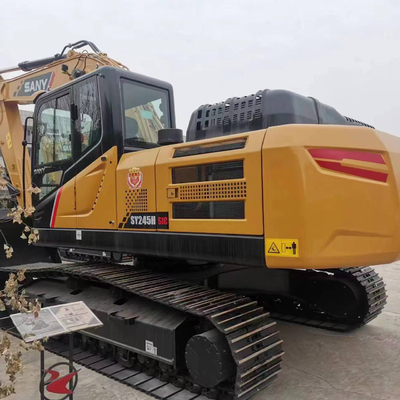

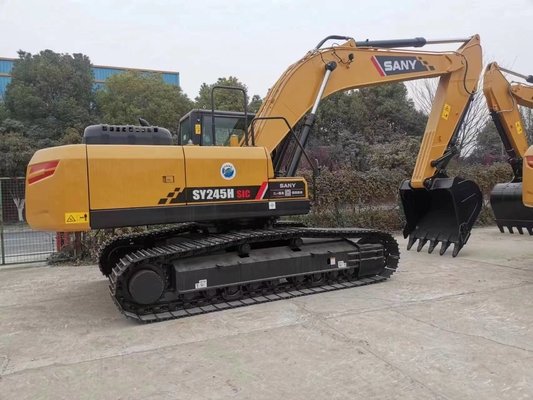

| Parameter configuration of Sany Heavy Industry SY245H excavator |
| specifications |
| Power Traditional Power |
| Domestic production by manufacturers |
| Bucket Backhoe |
| Tonnage (ton) 24 |
| Working weight of the whole machine (kg) 25500 |
| Bucket capacity (m ³) 1.3~1.5 (1.5) |
| performance |
| Rotation speed (rpm) 10.6 |
| Walking speed (km/h) 5.4/3.4 |
| Climbing ability (%) 70 |
| Ground specific voltage (Kpa) 53.2 |
| Bucket excavation force (kN) 175 |
| Dipper arm excavation force (kN) 120 |
| dynamic system |
| Engine model D06FRC |
| Rated power (kW/rpm) 147/2100 |
| Maximum torque (N.m) 750/1350 |
| Displacement (L) 6.373 |
| Number of cylinders (6) |
| Cooling method: water cooling |
| Oil capacity |
| Fuel tank (L) 475 |
| Hydraulic oil tank (L) 277 |
| Engine oil change quantity (L) 29 |
| Main body size |
| Total length of transportation (mm) 10290 |
| Total transportation width (mm) 3190 |
| Total transportation height (mm) 3190 |
| Full height of cab (mm) 3255 |
| Boarding width (mm) 3045 |
| Track grounding length (mm) 3640 |
| Total length of track (mm) 4445 |
| Track shoe width (mm) 600 |
| Track gauge (mm) 2590 |
| Minimum ground clearance (mm) 470 |
| Minimum turning radius of the front working device (mm) 3800 |
| Rear end turning radius (mm) 3105 |
| Maximum height at minimum turning radius (mm) 8016 |
| Number of carrier sprockets (one side) (2 pieces) |
| Number of track shoes (one side) (pieces) 49 |
| Number of supporting wheels (one side) 9 |
| Scope of work |
| Maximum excavation radius (mm) 10225 |
| Maximum excavation depth (mm) 6705 |
| Maximum excavation height (mm) 9745 |
| Maximum unloading height (mm) 6715 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
