| MOQ: | 40000 sets |
| Price: | $15,000.00 - $18,000.00/sets |

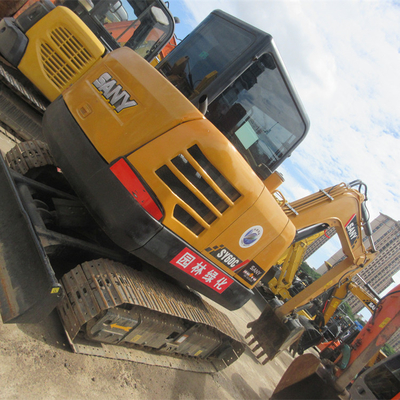

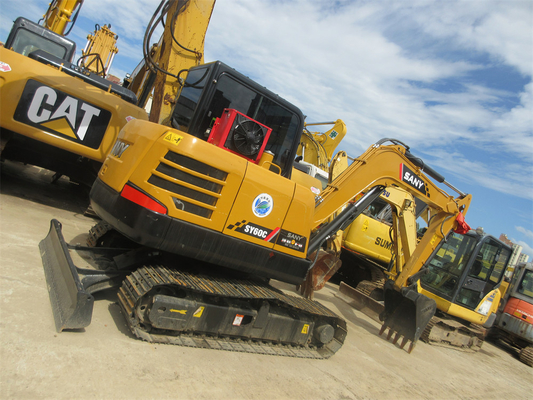

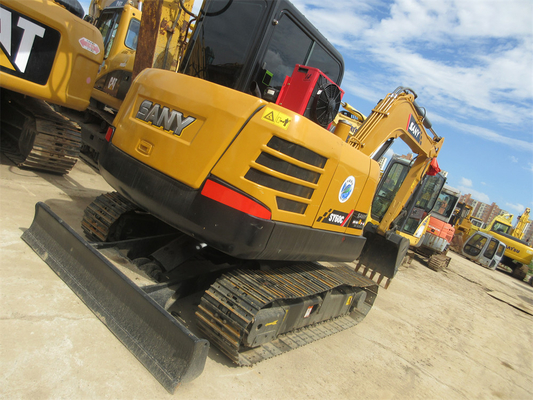

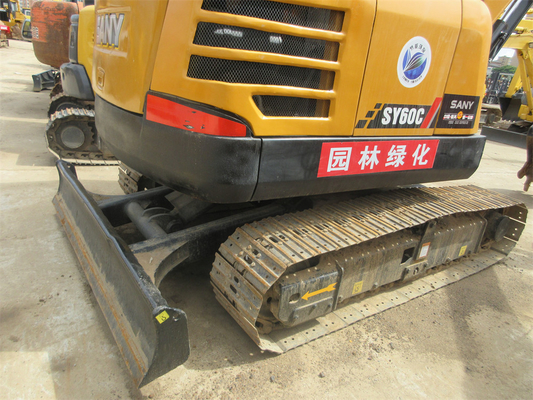

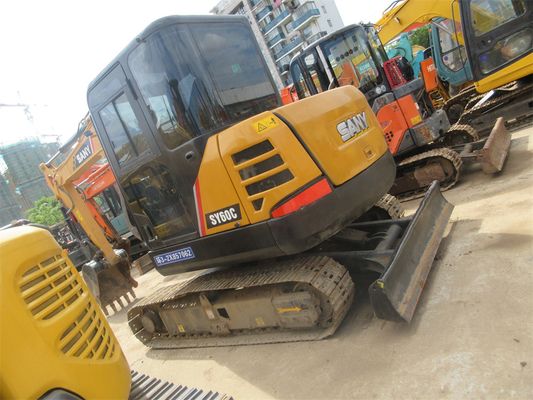

| Sany SY60C excavator |
| specifications |
| Power Traditional Power |
| Domestic production by manufacturers |
| Bucket Backhoe |
| Tonnage (ton) 6 |
| Working weight of the whole machine (kg) 6000 |
| Bucket capacity (m ³) 0.10-0.28 (0.23) |
| performance |
| Rotation speed (rpm) 9.6 |
| Walking speed (km/h) 4.22/2.25 |
| Climbing ability (%) 70% (35 °) |
| Ground specific voltage (Kpa) 30.7 |
| Bucket excavation force (kN) 45 |
| Dipper arm excavation force (kN) 33 |
| dynamic system |
| Engine model V2607 |
| Rated power (kW/rpm) 36/2100 |
| Maximum torque (N.m) 206.9/1100-1500 |
| Displacement (L) 2.615 |
| Number of cylinders 4 |
| Cooling method: water cooling |
| Oil capacity |
| Fuel tank (L) 130 |
| Hydraulic oil tank (L) 85 |
| Engine oil change quantity (L) 9.6 |
| Main body size |
| Total length of transportation (mm) 5925 |
| Total transportation width (mm) 2005 |
| Total transportation height (mm) 2630 |
| Total length of track (mm) 2700 |
| Track shoe width (mm) 400 |
| Track gauge (mm) 1600 |
| Minimum ground clearance (mm) 370 |
| Rear end turning radius (mm) 1640 |
| Number of supporting wheels (one side) 5 |
|
|
| Number of carrier rollers (one side) (piece) 1 |
| Number of track shoes (one side) (piece) 42 |
| Scope of work |
| Maximum excavation radius (mm) 6090 |
| Maximum excavation depth (mm) 3770 |
| Maximum excavation height (mm) 5735 |
| Maximum unloading height (mm) 3975 |
| Maximum vertical excavation depth (mm) 3025 |
| Bulldozer lifting or pushing depth (mm) 300/405 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
