| MOQ: | 3000 sets |
| Price: | $14,000.00 - $17,000.00/sets |

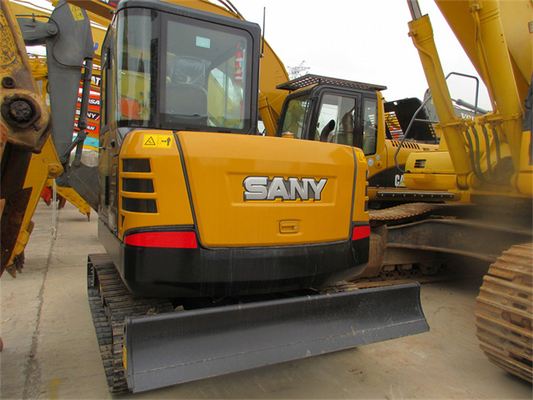

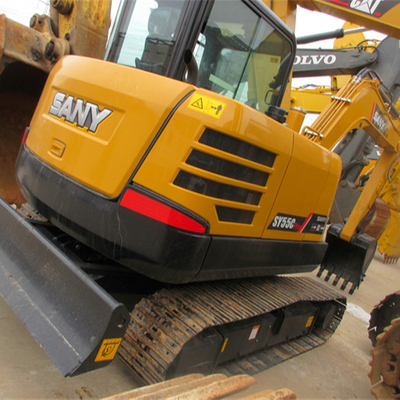

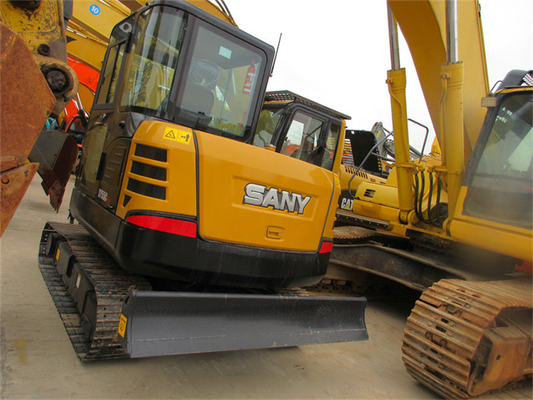

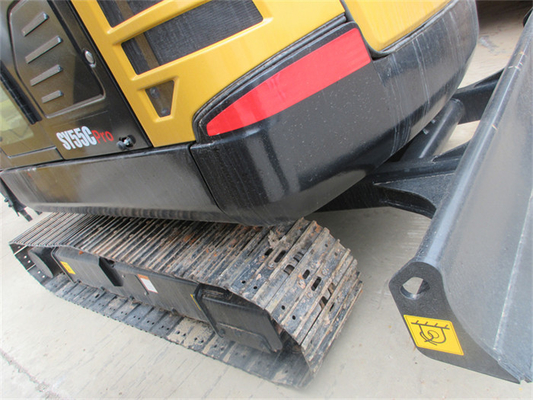

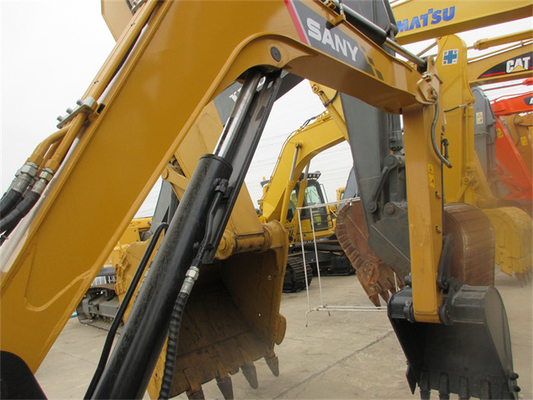

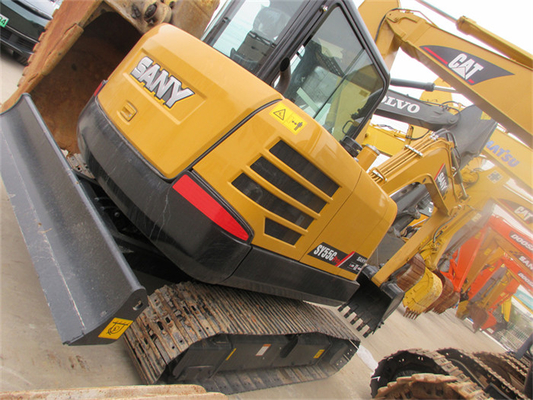

| Parameter configuration of Sany Heavy Industry SY55C excavator |
| • Specifications |
| Power Traditional Power |
| Domestic production by manufacturers |
| • Bucket backhoe |
| Tonnage (ton) 5 |
| Working weight of the whole machine (kg) 5780 |
| Bucket capacity (m) ³) 0.1~0.28 (0.21) |
| Performance |
| Rotation speed (rpm) 9.6 |
| Walking speed (km/h) 3.73/2.4 |
| • Climbing ability (%) 70% (35 °) |
| Grounding specific voltage (Kpa) 32.75 |
| • Bucket excavation force (kN) 45 |
| Dipper arm excavation force (kN) 33 |
| Power system |
| Engine model 4JG1 |
| Rated power (kW/rpm) 36/2100 |
| Maximum torque (N.m) 175/1800 |
| Displacement (L) 3.059 |
| Number of cylinders 4 |
| • Cooling method: water cooling |
| • Oil capacity |
| Fuel tank (L) 130 |
| Hydraulic oil tank (L) 85 |
| Engine oil change quantity (L) 9.6 |
| Main body size |
| Total length of transportation (mm) 5925 |
| Total transportation width (mm) 2005 |
| Total transportation height (mm) 2595 |
| Total length of track (mm) 2545 |
| Track shoe width (mm) 400 |
| Track gauge (mm) 1600 |
| Minimum ground clearance (mm) 330 |
| Rear end turning radius (mm) 1640 |
| Number of supporting wheels (one side) 5 |
| Number of carrier sprockets (one side) 1 |
| Number of track shoes (one side) (pieces) 40 |
| • Scope of work |
| Maximum excavation radius (mm) 6090 |
| Maximum excavation depth (mm) 3815 |
| Maximum excavation height (mm) 5690 |
| Maximum unloading height (mm) 3930 |
| Maximum vertical excavation depth (mm) 3070 |
| Bulldozer lifting or pushing depth (mm) 385/380 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
