| MOQ: | 3000 sets |
| Price: | $25,000.00 - $27,000.00/sets |
| Name:ShangHai Long shou Machinery Co,Ltd |
| Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China |
| Contact :olivia |
| Whats app/ Mobile phone:+8618701954897 |
| We chat number:18701954897 |
|
|

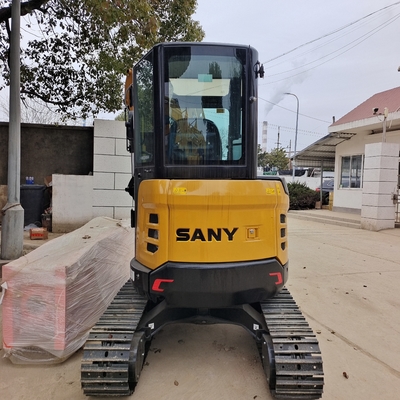

| Technical parameters of Sany Heavy Industry SY35U (National IV) micro excavator |
| Specifications |
| Operating Weight 3780kg |
| Bucket capacity 0.12m ³ |
| Performance |
| Climbing ability 58% |
| Rotating speed of 9rpm |
| Grounding specific pressure 32kPa |
| Bucket excavation force 30.4kN |
| Dipper arm excavation force 18.2kN |
| Walking speed 4.2/2.4 (km/h) km/h |
| Walking section |
| Track width 300mm |
| 4 supporting wheels on each side |
| Carrier chain wheel 1 |
| Number of track shoes/ |
| Oil and coolant capacity |
| Fuel tank 50L |
| Hydraulic oil tank 40L |
| Engine oil 6L |
| Radiator 3.8L |
| Final drive 2x0.7L |
| Engine |
| Model Kubota D1703 |
| Rated power 18.2/2200kW/rpm |
| Maximum torque 97.4N • m |
| Displacement 1.647L |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
