| MOQ: | 3000 sets |
| Price: | $19,000.00 - $22,000.00/sets |
|

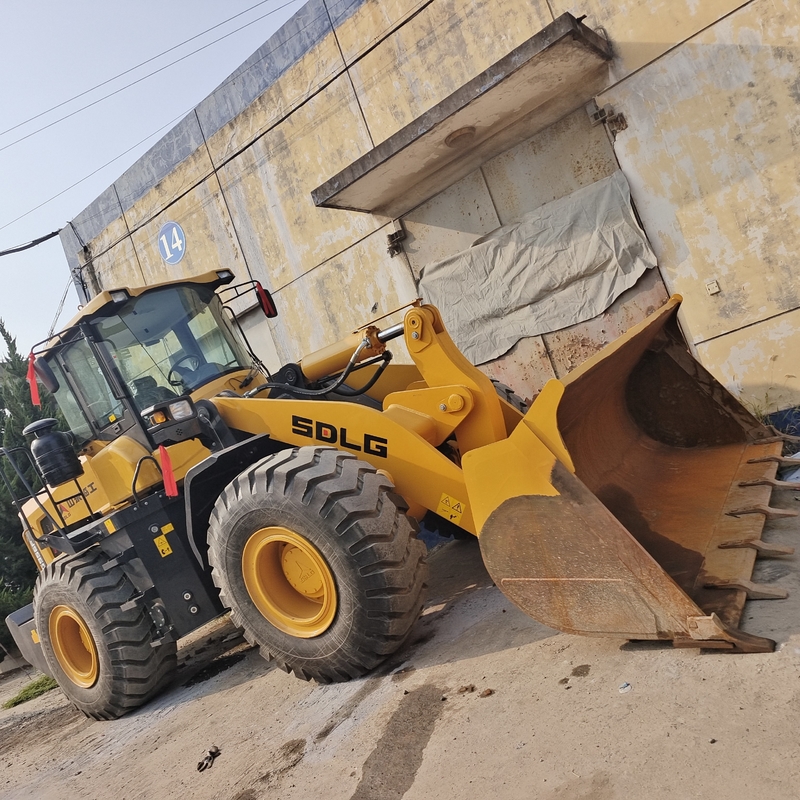

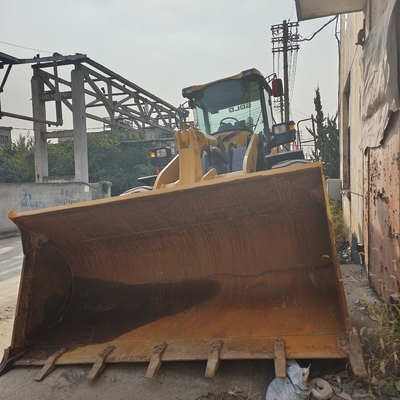

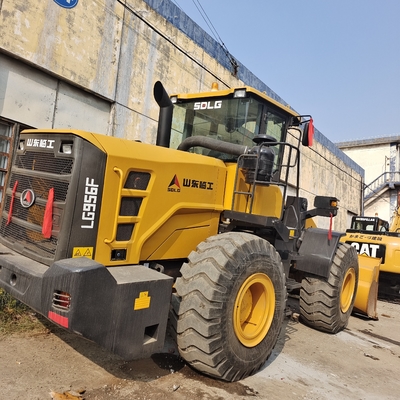

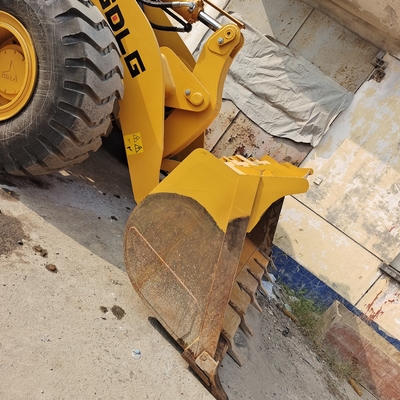

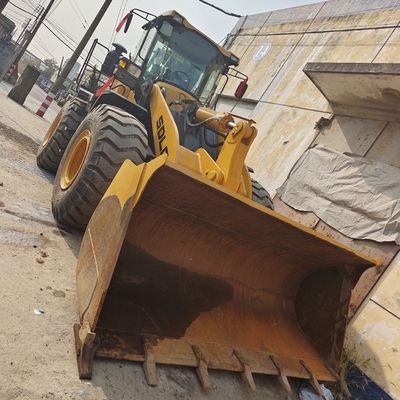

Parameter configuration of Shandong Lingong L955F loader |
|
Basic performance |
|
Rated load (ton) 5-6 tons |
|
Rated load capacity (kg) 5000 |
|
Operating weight of the whole machine (kg) 17000 |
|
Bucket capacity (m ³) 2.8 (2.7-4.5) |
|
Maximum unloading height (mm) 3080 |
|
Unloading distance (mm) 1050 |
|
Excavation force (digging force) (kN) 175 |
|

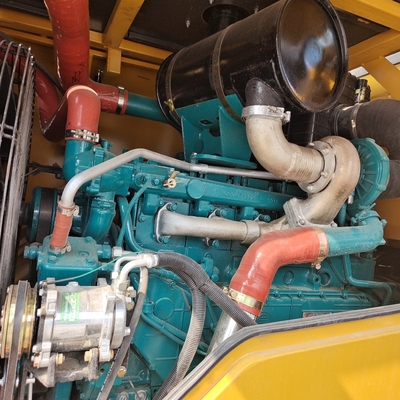

engine |
|
Engine model WP10G220E343 |
|
Rated power (kW/rpm) 162/2000 |
|
Maximum torque (N.m) 980/1300-1500 |
|
Exhaust volume (L) 9.726 |
|
Cooling method: water cooling |
|
Working form: inline, water-cooled, electrically controlled high-pressure common rail, four valves |
|
Oil capacity |
|
Fuel tank (L) 260 |
|
Hydraulic oil tank (L) 240 |
|
Engine oil (L) 20 |
|
Transmission |
|
Gear setting front two rear one |
|
Maximum speed (km/h) 38 |
|
Driving speed 1st gear (km/h) 0-13 |
|
Driving speed 2nd gear (km/h) 0-38 |
|
steering system |
|
Steering angle 35 |
|
Working device action time |
|
Triple sum (s) 10 |
|
technical parameter |
|
Overturning load (kg) 110 |
|
Maximum traction force (kN) 155 |
|
Overall dimensions |
|
Overall length (mm) 8120 |
|
Overall width (mm) 3024 |
|
Overall height (mm) 3423 |
|
Minimum ground clearance (mm) 534 |
|
Wheelbase (mm) 3200 |
|
Track width (mm) 2250 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
